CMB2436B200BTS - Eaton Residential Meter Breaker

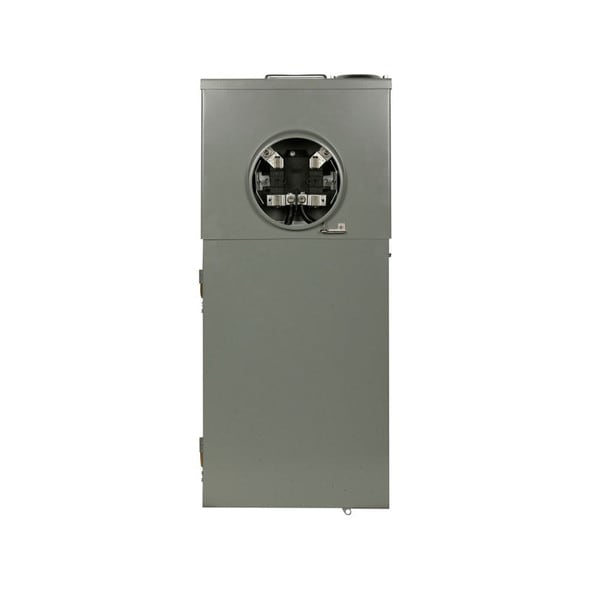

The Eaton Residential Meter Breaker All-In-One combines a meter socket and a breaker panel in a single, compact unit, providing a convenient and efficient solution for residential electrical service. Rated at 200A, this unit features Type CH breakers and is equipped with copper bus bars for optimal conductivity and performance. The meter breaker is designed with a NEMA 3R rating, ensuring it is weatherproof and suitable for both outdoor and indoor installations. It accommodates four 300 KCMIL conductors and provides a 22 kAIC short-circuit rating. The system also includes a four-jaw socket for utility metering and is ideal for single-phase, 120/240V systems.

Key Features:

• Product Type: Residential Meter Breaker All-In-One
• Amperage Rating: 200 A
• Bus Material: Copper for high conductivity and durability
• Breaker Type: Type CH (Compatible with Eaton CH breakers)
• NEMA Rating: NEMA 3R – weather-resistant for outdoor use
• Meter Socket: Four-jaw socket for utility metering
• Max Conductor Size: Accommodates up to 4-300 KCMIL conductors
• Short-Circuit Rating: 22 kAIC (Maximum available short-circuit current)
• Mounting Type: Surface mounting for easy installation
• Circuit Configuration: 1-phase, 120/240 VAC
• Application: Suitable for residential power distribution and service entry

The Eaton Residential Meter Breaker All-In-One provides a comprehensive solution for electrical metering and protection, offering ease of installation and reliable performance for single-phase residential applications.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - CMB2436B200BTS
