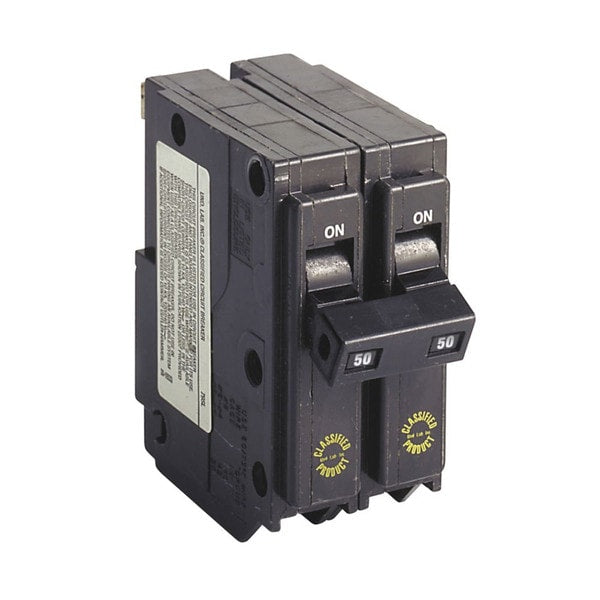

CHQ250 - Standard Trip Circuit Breaker

This 50A Standard Trip Circuit Breaker is designed for efficient and safe power distribution in both residential and commercial applications. Equipped with a common tripping mechanism, it ensures simultaneous disconnection of both poles during overloads or short circuits. The plug-on style combined with line and load lug terminals makes for a quick, secure installation in 240V AC systems.

Key Features:

• 50A current rating for higher-capacity circuit protection
• Common trip design enhances safety during fault conditions
• Plug-on installation supports fast and easy panel mounting
• Line and load lug terminals provide solid connection points
• Dimensions: 3" height, 2.5" length, 1.5" width
• Lightweight build at 0.6 lb for simple handling

A reliable choice for protecting high-load circuits while ensuring ease of installation and long-term performance.

Documents:

Brochures

Standard circuit breaker catalog numbers - 5651B63SH09
Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Specifications and datasheets

Eaton Specification Sheet - CHQ250
