CH32B200J - CH Style Load Center

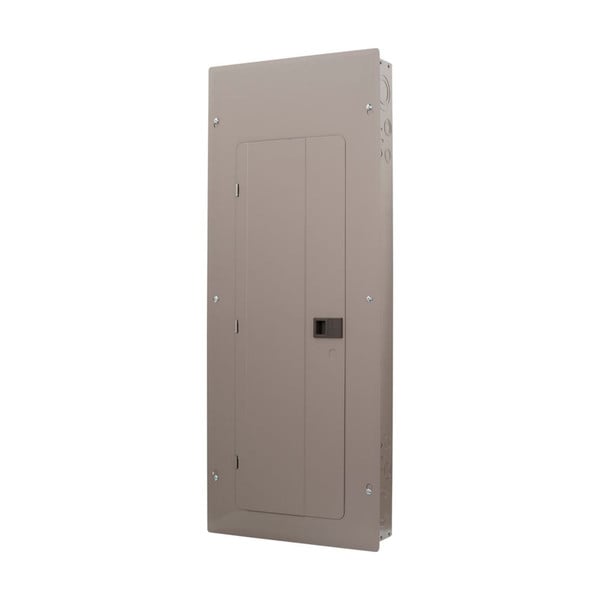

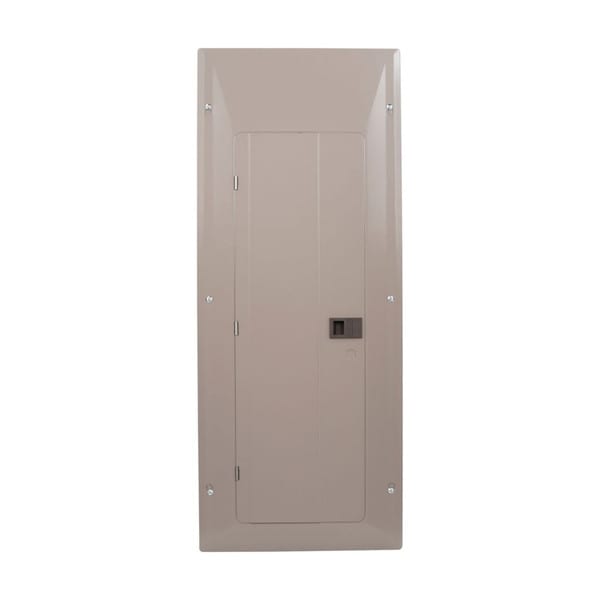

The Eaton CH Main Breaker Loadcenter (Model: CH32B200J) is a robust electrical distribution panel designed for residential and light commercial applications. With a 200 A rating and a copper bus, it ensures efficient power distribution and circuit protection.This loadcenter supports up to 32 circuits and 32 spaces, making it suitable for various electrical systems.The NEMA 1-rated metallic enclosure provides durability and protection in indoor installations.It accommodates wire sizes ranging from 2/0 AWG to 300 kcmil, offering flexibility for different installation requirements.

Key Features:

• 200 A main breaker with 25 kAIC interrupting capacity
• Supports 32 circuits and 32 spaces for versatile configurations
• Copper bus material for reliable conductivity
• NEMA 1 rated metallic enclosure for indoor use
• Accommodates wire sizes from 2/0 AWG to 300 kcmil
• Dimensions: 14.31" L x 3.88" W x 34.13" H; Weight: 36.72 lbs

This Eaton CH Main Breaker Loadcenter offers a reliable and efficient solution for managing electrical distribution needs.
