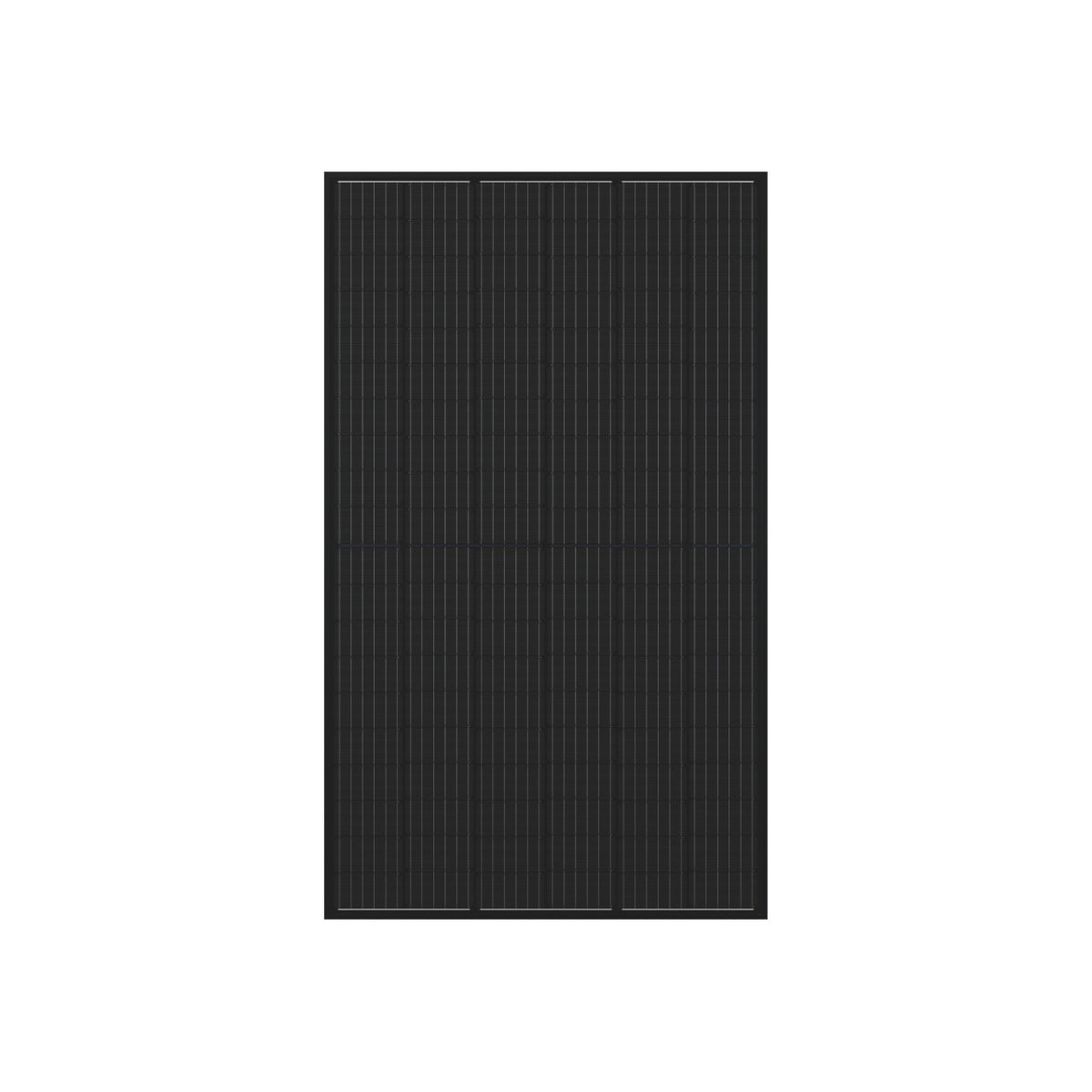

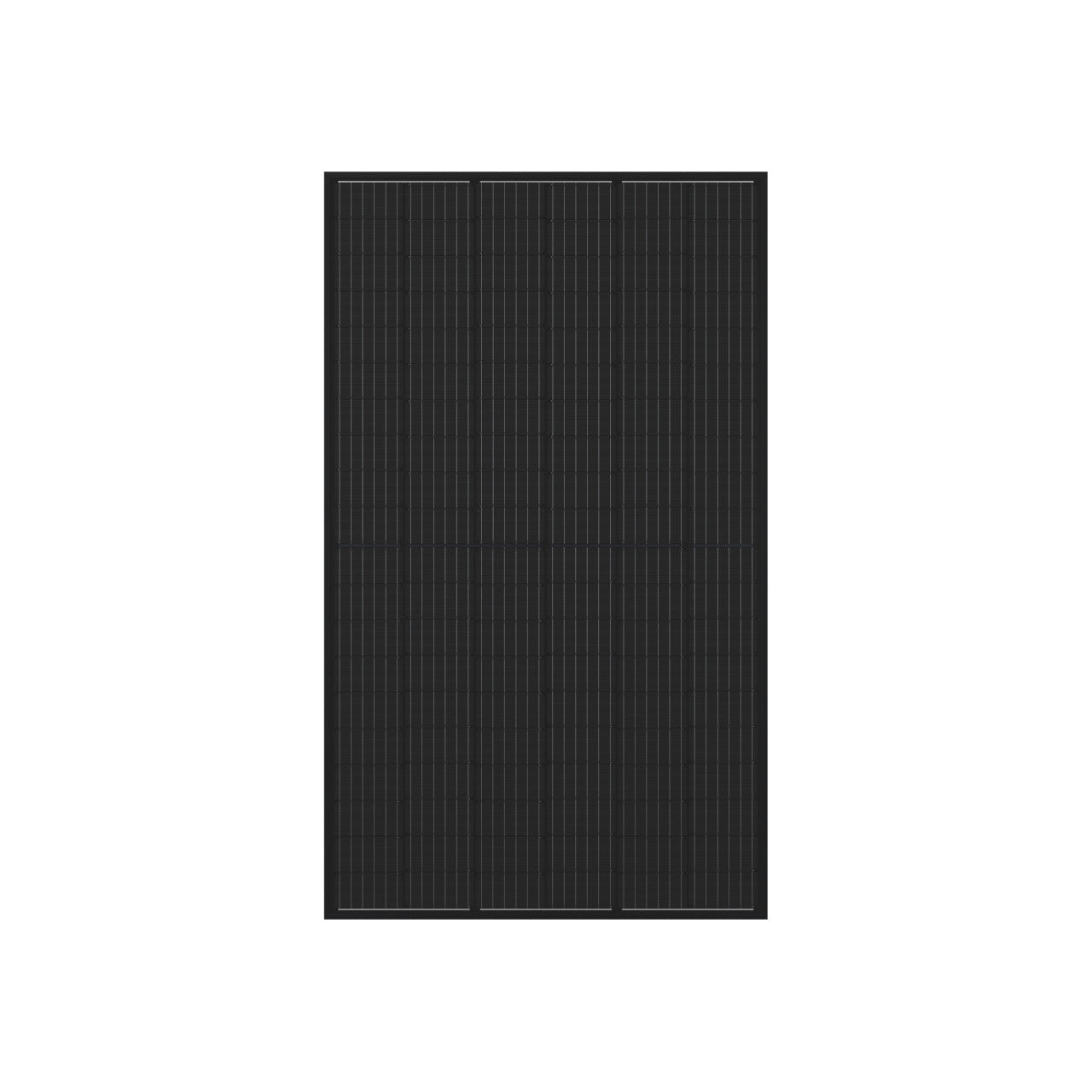

Canadian Solar TOPHiKu6 CS6.2-48TM-445H (445W) 48-Cell Solar Panel

The Canadian Solar TOPHiKu6 CS6.2-48TM-445H delivers exceptional performance and durability for both residential and commercial applications. Built with advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, this 445W module provides higher efficiency, improved temperature performance, and long-term reliability even in challenging environments.

Key Features

• High Power Output: 445W module power with industry-leading efficiency of up to 22.5%.

• N-Type TOPCon Technology: Provides superior power retention and lower degradation rates.

• Enhanced Low-Light Performance: Optimized for maximum energy yield in low irradiance conditions.

• Reduced LID & LeTID: Ensures stable long-term energy production with minimal performance loss.

• Durable Design: Certified for high wind (up to 2400 Pa) and snow loads (up to 5400 Pa).

• All-Black Aesthetic: Sleek design perfect for modern rooftop installations.

• Improved Bifaciality: Rear-side power gain of up to 30% for bifacial applications.

Electrical Specifications

• Rated Power (Pmax): 445W

• Module Efficiency: Up to 22.5%

• Open Circuit Voltage (Voc): 52.3V

• Short Circuit Current (Isc): 10.82A

• Maximum Power Voltage (Vmp): 43.8V

• Maximum Power Current (Imp): 10.17A

Mechanical Specifications

• Cell Type: N-Type Monocrystalline TOPCon, 48 cells (6x8 layout)

• Module Dimensions: 1,728 × 1,133 × 30 mm (68.0 × 44.6 × 1.18 in)

• Weight: 20.8 kg (45.9 lbs)

• Frame: Anodized aluminum alloy

• Front Cover: 3.2 mm tempered glass

Certifications

• IEC 61215 / IEC 61730 / UL 61730

• ISO 9001, ISO 14001, ISO 45001

Warranty

• 12-year product warranty on materials and workmanship

• 30-year performance warranty with 87.4% guaranteed power output at year 30

Document: Specification Sheet
