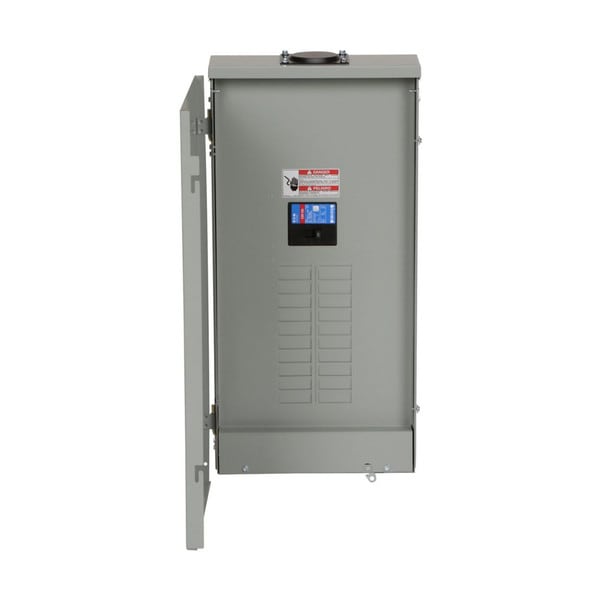

BRP18BC225R - Eaton BR Main Breaker Loadcenter

The Eaton BR Main Breaker Loadcenter is engineered for reliable and efficient power distribution in residential and light commercial applications. Rated for 225A, this loadcenter features a durable copper bus for superior conductivity and long-term performance. It is designed for three-wire, single-phase systems and supports up to 36 circuits with 18 spaces, providing ample flexibility for expansion. The NEMA 3R metallic enclosure offers weather-resistant protection, making it suitable for both indoor and outdoor installations. A factory-installed main breaker and cover are included for added convenience and safety.

Key Features:

• Product Type: Main Breaker Loadcenter
• Voltage System: Single-Phase, Three-Wire
• Amperage Rating: 225 Amps
• Circuit Capacity: 36 Circuits
• Space Count: 18 Spaces
• Bus Material: Copper
• Interrupt Rating: 25 kAIC
• Enclosure Type: NEMA 3R, Metallic (Outdoor Rated)
• Included: Factory-installed Main Breaker and Cover
• Compatibility: Designed for BR Circuit Breakers

The Eaton BR Main Breaker Loadcenter offers a robust, weather-resistant solution to support safe, efficient, and expandable electrical systems for a variety of installation needs.

Documents:

Specifications and datasheets
Eaton Specification Sheet - BRP18BC225R
