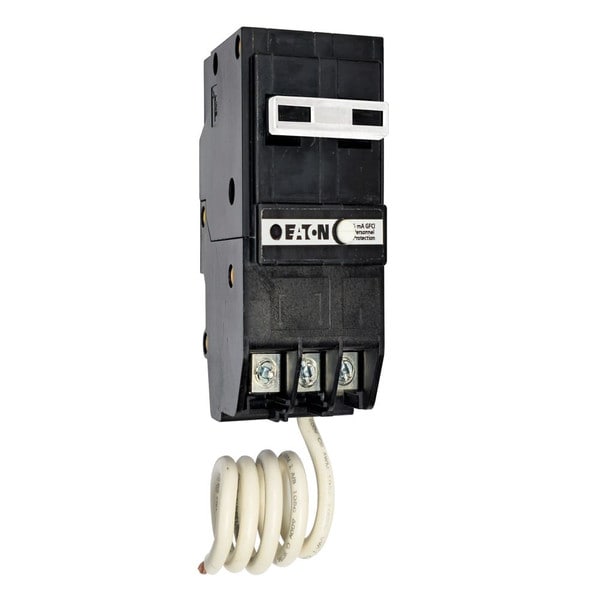

BRN215GF - Eaton BR Gfci Circuit Breaker

The Eaton BR GFCI Circuit Breaker is designed to provide ground fault protection for personnel in residential and light commercial applications. This two-pole breaker is rated for 15 amps and operates at 120/240 volts with a 10 kA interrupting capacity. It features a pigtail neutral connection and supports wire sizes from #14 to #4 AWG. The breaker complies with UL 489 and UL 943 standards, ensuring reliable performance and safety.

Key Features:

• Amperage Rating: 15 A
• Voltage Rating: 120/240 V
• Interrupting Capacity: 10 kAIC
• Number of Poles: 2
• Trip Type: Common
• Neutral Connection: Pigtail
• Wire Size: #14–4 AWG
• Mounting Type: Plug-On
• Standards: UL 489, UL 943

This breaker is suitable for use in Eaton BR load centers and panelboards, providing essential ground fault protection in various settings.

Documents:

Product specifications

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
