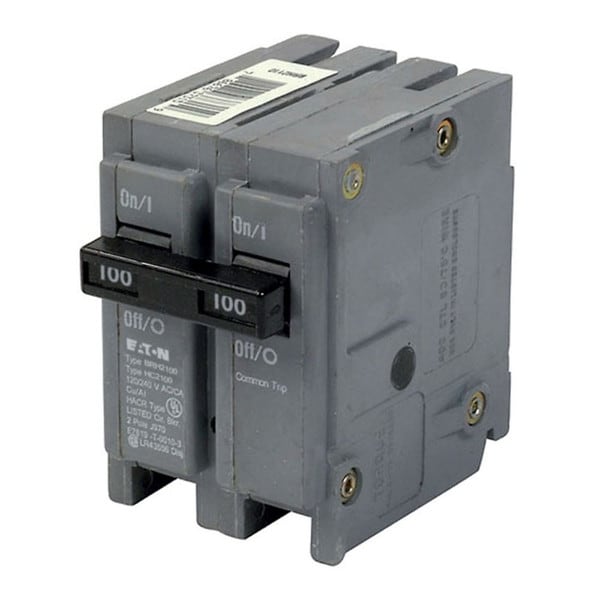

BRH2100 - Eaton BR Thermal Magnetic Circuit Breaker

The Eaton BR Thermal Magnetic Circuit Breaker is a reliable and high-performance circuit protection device designed for use with Eaton BR loadcenters. This 100A, two-pole breaker offers a 22 kAIC rating, providing exceptional protection against short circuits and overloads. It is compatible with Type BR 1-inch plug-on loadcenters and operates at a voltage rating of 120/240V. The breaker features a common trip mechanism, ensuring both poles trip simultaneously in the event of a fault. It accommodates 4-1/0 AWG copper or aluminum conductors, making it versatile for a wide range of applications.

Key Features:

• Product Type: Thermal Magnetic Circuit Breaker
• Breaker Type: Type BR 1-Inch Plug-On
• Amperage Rating: 100A
• Interrupting Rating (Kaic): 22 kAIC
• Poles: Two-Pole
• Voltage Rating: 120/240V
• Trip Mechanism: Common Breaker Trip
• Conductor Range: 4–1/0 AWG Cu/Al
• Compatibility: Designed for BR Type Loadcenters

This Eaton BR circuit breaker provides dependable overcurrent protection for your electrical system, ensuring both safety and reliability in residential and light commercial applications.
