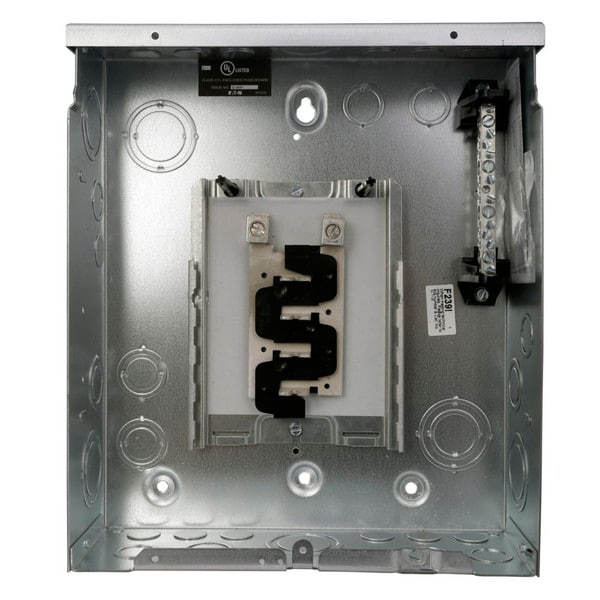

BR816L125SP - Main Lug Load Center

This main lug load center is designed to handle up to 125 Amps and 120/240 V AC. It features 8 spaces and 16 circuits, offering ample room for electrical connections. The unit supports wire sizes ranging from 14 to 1 AWG and is constructed with an aluminum bus and metallic material for enhanced durability.

Key Features:

• 125 Amp, 120/240 V AC capacity
• 8 spaces and 16 circuits for versatile configurations
• Supports wire sizes from 14 to 1 AWG
• Aluminum bus material with metallic enclosure

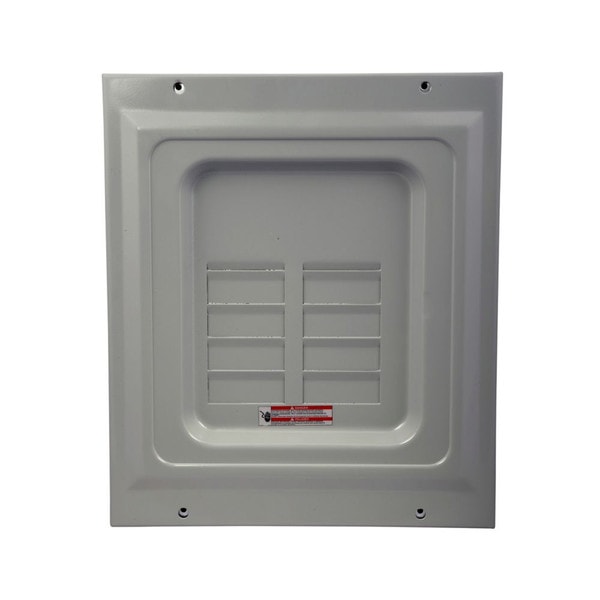

• Surface mount (trim) design for easy installation

This load center is perfect for residential or commercial installations that require a compact yet efficient electrical distribution solution.

Documents:

Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Specifications and datasheets

Eaton Specification Sheet - BR816L125SP
Warranty guides

Eaton type BR circuit breaker limited warranty June 2024
