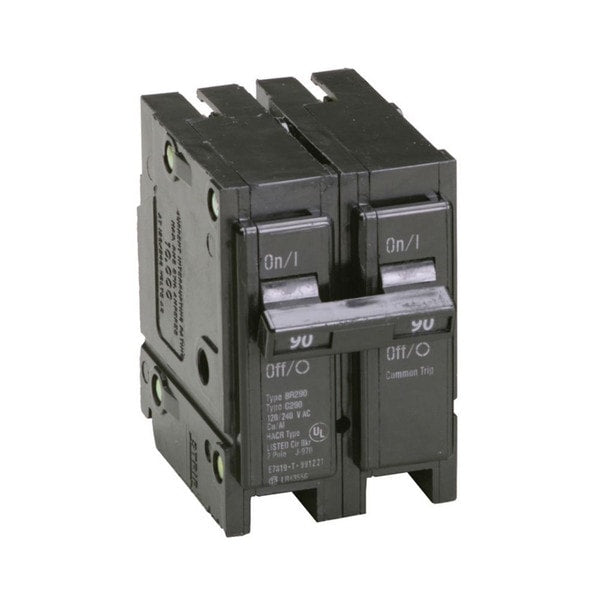

BR290 - Eaton BR Thermal Magnetic Circuit Breaker

The Eaton BR Thermal-Magnetic Circuit Breaker is designed to offer reliable protection for electrical systems in residential and commercial applications. With a 90A rating and a two-pole configuration, it provides secure interruption of power during overloads or short circuits. Featuring a thermal-magnetic trip unit and a common breaker trip, this breaker is designed for use in Type BR loadcenters. It supports wire sizes from 8-1/0 AWG Copper or Aluminum and is rated for 10,000 amperes of interrupting capacity (Kaic), ensuring superior protection and reliability in 120/240V systems.

Key Features:

• 90A rating for dependable protection of electrical circuits
• Thermal-magnetic trip unit for overload and short-circuit defense
• 10 Kaic interrupting capacity for enhanced system safety
• Two-pole design, suitable for 120/240V applications
• Common breaker trip and compatible with Type BR Loadcenters
• Supports wire sizes from 8-1/0 AWG Copper or Aluminum

This circuit breaker ensures long-lasting protection and reliability for your electrical systems.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BR290

Warranty guides
Eaton type BR circuit breaker limited warranty June 2024
