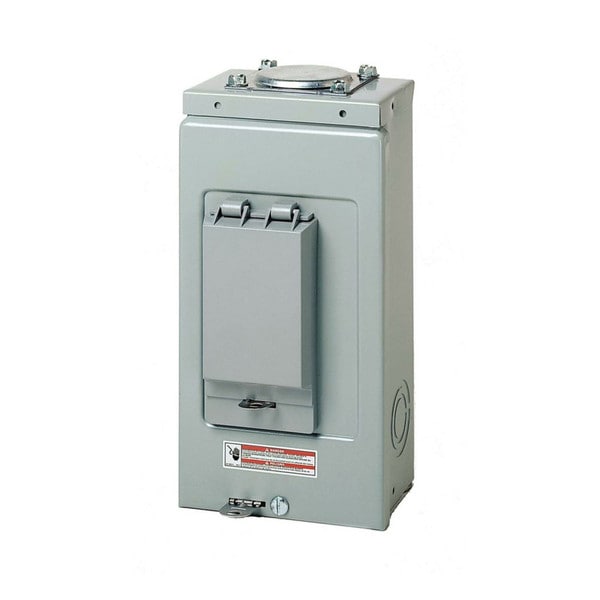

BR24L70RP - Eaton BR Main Lug Loadcenter

The Eaton BR Main Lug Loadcenter is a high-performance electrical distribution panel designed for residential and light commercial applications. This current design loadcenter features a main lug configuration with a 70A rating and includes a durable metallic cover. The NEMA 3R rating ensures it is suitable for outdoor use, providing protection against rain and other environmental factors. With a 10 kAIC rating, this loadcenter is designed to handle high fault currents. It supports 4 circuits, a 4-pole configuration, and 2 spaces, accommodating Type BR 1-inch breakers for both 120/240V single-phase systems.

Key Features:

• Product Type: Main Lug Loadcenter
• Rating: 70A
• Enclosure Rating: NEMA 3R (Outdoor Use)
• Material: Aluminum
• Breaker Type: BR 1-Inch Breakers
• Number of Circuits: 4
• Pole Configuration: Four-Pole
• Number of Spaces: 2
• Voltage Rating: 120/240V
• Current Interrupting Rating (Kaic): 10 kAIC
• Phase: Single-Phase
• Cover: Included

This Eaton loadcenter offers a safe, durable, and versatile solution for distributing power in residential or light commercial electrical systems, designed for long-lasting reliability and easy maintenance.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - BR24L70RP
