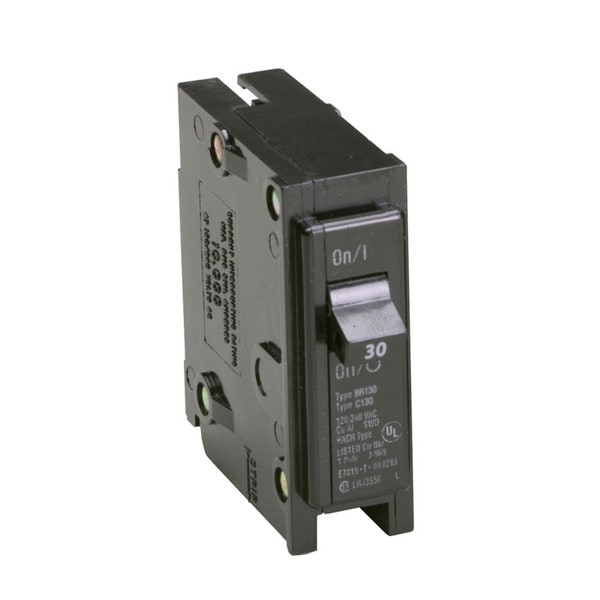

BR130 - Standard Trip Circuit Breaker

The Standard Trip Circuit Breaker offers dependable overcurrent protection for a wide range of residential and light commercial applications. Rated at 30 Amps, this breaker features a common tripping mechanism and is designed for seamless installation with Plug-On terminals.

Built with both line and load lug terminals, the breaker ensures secure connections and compatibility with 120/240V AC systems. Its compact design—measuring just 3 inches in height and length, and 1 inch in width—makes it an efficient choice for space-conscious panels.

Key Features:

• 30 Amp rating, standard trip function
• Plug-On design for quick and easy installation
• Line and load lug terminals for flexible wiring
• 120/240V AC compatibility
• Compact dimensions: 3" H × 3" L × 1" W

Ideal for panel upgrades and new installations, this circuit breaker provides reliable circuit protection in a streamlined form.

Documents:

Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets

Eaton Specification Sheet - BR130

Warranty guides

Eaton type BR circuit breaker limited warranty June 2024
