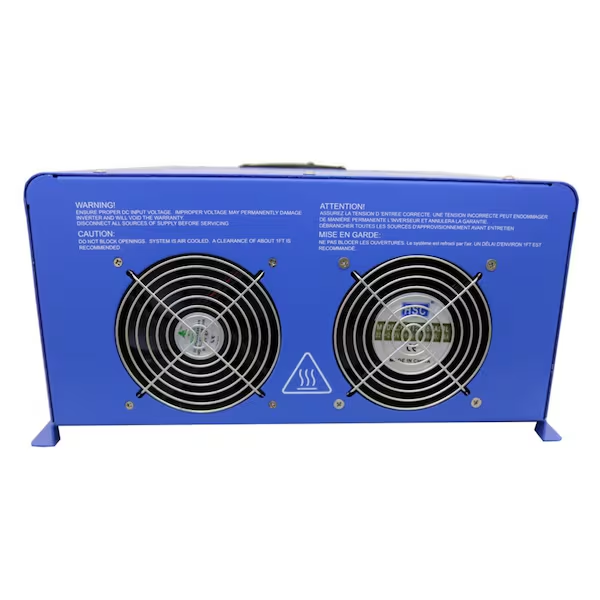

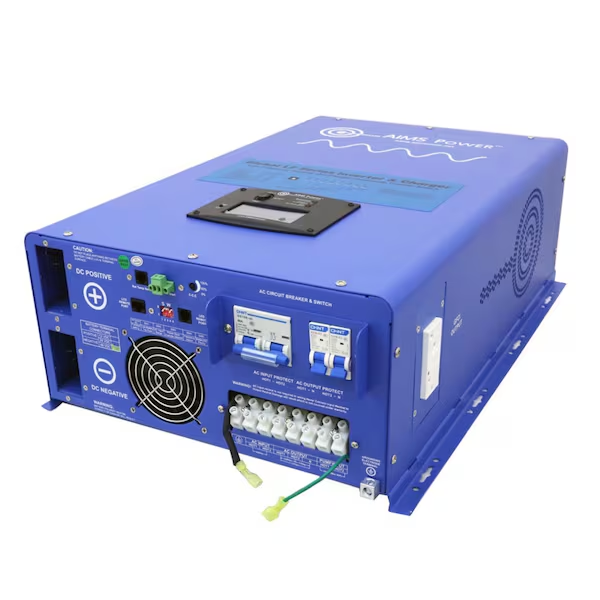

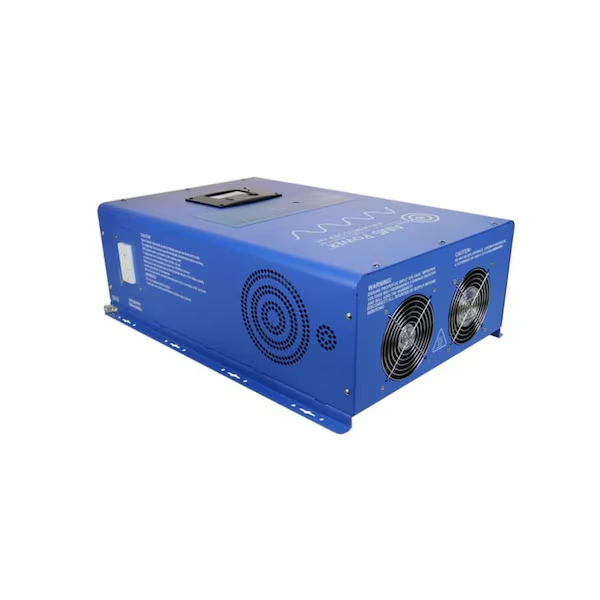

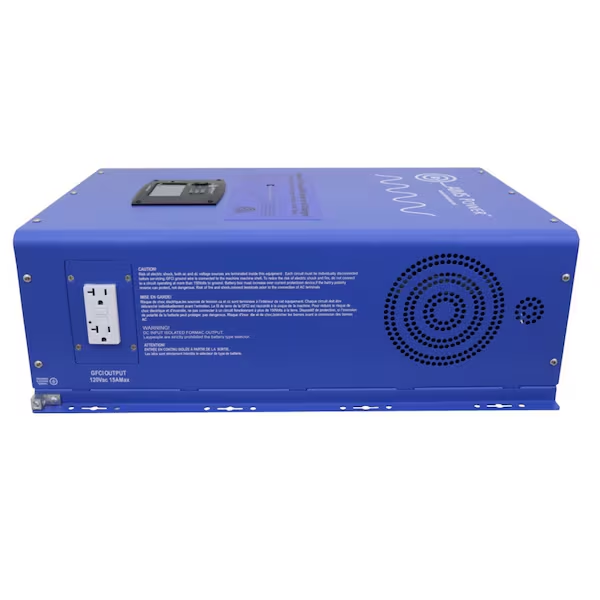

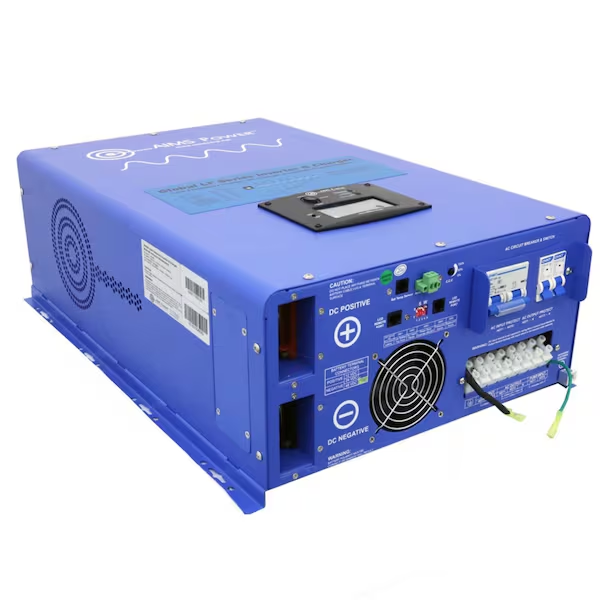

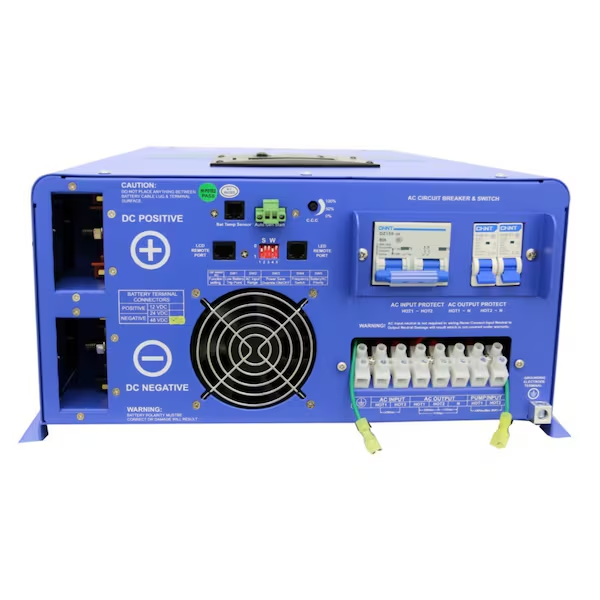

AIMS Power 10kW Pure Sine Inverter & Charger

Power your home, business, or off-grid system with the AIMS Power Pure Sine Wave Inverter and Battery Charger, engineered for reliability and heavy-duty performance. Delivering 10,000 watts of continuous power and 30,000 watts of surge capability, this inverter provides stable, high-efficiency AC output from a 48V DC power source perfect for backup systems, off-grid cabins, and renewable energy setups.

Key Features

• Pure Sine Wave Output: Ensures clean, consistent power suitable for sensitive electronics and appliances.

• High Power Output: 10,000W continuous with 30,000W surge capacity for demanding loads.

• Built-In Battery Charger: Integrated 100A smart charger with selectable charging profiles for AGM, gel, or LiFePO₄ batteries.

• Split-Phase 120/240V Output: Ideal for residential and commercial applications in North America.

• Automatic Transfer Switch: Seamlessly switches between AC input and inverter power for uninterrupted operation.

• Multiple Protection Features: Includes overload, over-temperature, short-circuit, and low/high voltage protection.

• Durable Construction: Heavy-duty aluminum casing for improved heat dissipation and long service life.

Technical Specifications

• Model: PICOGLF10KW48V240VS

• Continuous Power: 10,000W

• Surge Power (Peak): 30,000W

• DC Input Voltage: 48V

• AC Output Voltage: 120/240V Split Phase

• Output Frequency: 60 Hz

• Waveform: Pure Sine Wave

• Charger Output: 100A (adjustable)

• Efficiency: >88%

• Cooling: Temperature-controlled fans

• Dimensions: 23.5 × 8.74 × 7.1 in (597 × 222 × 180 mm)

• Weight: Approx. 70 lbs (31.7 kg)

Applications

• Off-grid solar and wind systems

• Backup power for homes and cabins

• RVs, boats, and remote operations

• Industrial and emergency power systems

Package Includes

• AIMS Power 10,000W Inverter/Charger

• User manual

• Connection hardware

Why Choose AIMS Power

AIMS Power inverters are trusted worldwide for their reliability, efficiency, and versatility. Designed to handle the toughest power needs, they ensure safe and continuous operation even under demanding conditions.
