9PX1500RT - Eaton 9PX Ups

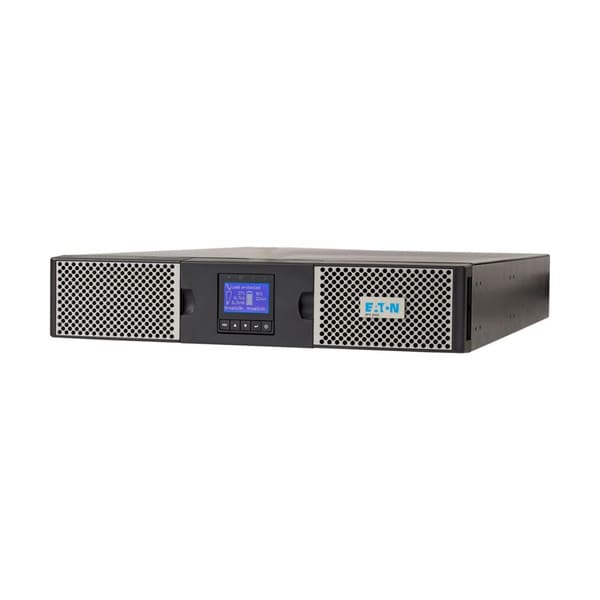

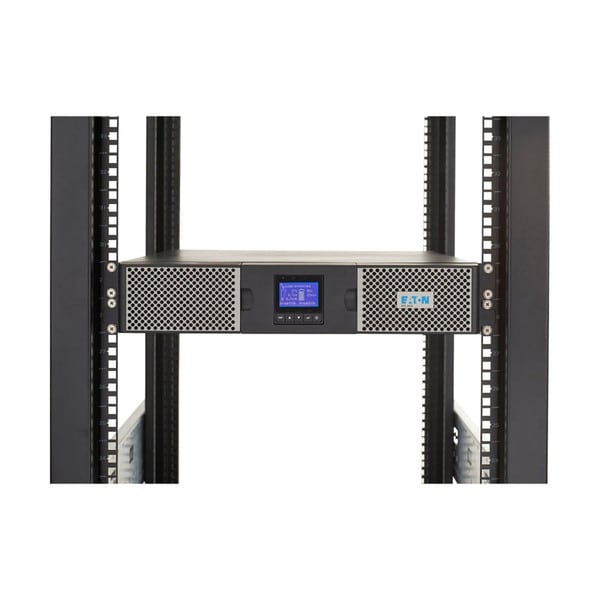

The Eaton 9PX1500RT is a high-performance uninterruptible power supply (UPS) designed to provide reliable power protection for critical IT equipment. With a 2U rackmount form factor, this UPS offers both rack and tower installation options, making it versatile for various setups.

Key Features:

• Power Capacity: 1500 VA / 1350 W
• Input Connection: NEMA 5-15P
• Output Receptacles: (8) NEMA 5-15R
• Topology: Online double-conversion
• Output Waveform: True sine wave
• Efficiency: Up to 93%
• Battery Type: Sealed lead-acid
• Runtime at Half Load: Approximately 16 minutes
• Runtime at Full Load: Approximately 5 minutes

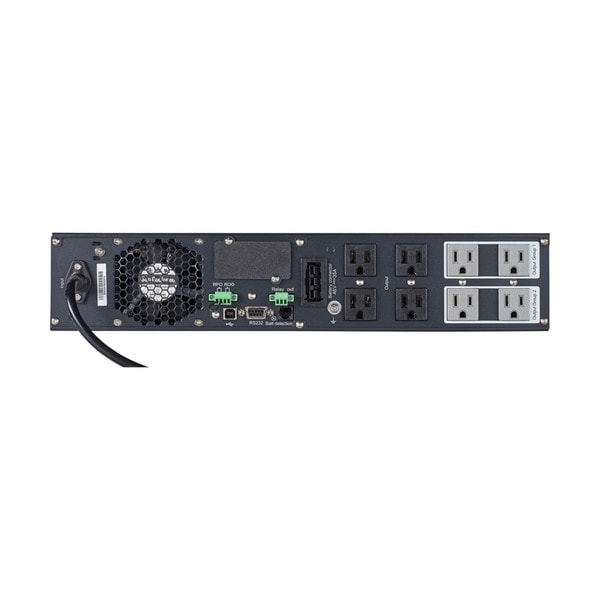

• Communication Ports: USB, RS232, mini-terminal block for remote On/Off, remote power off, and output relay
• Expansion Slots: One slot for optional communication card
• Certifications: ENERGY STAR certified, cULus Listed, CE Marked

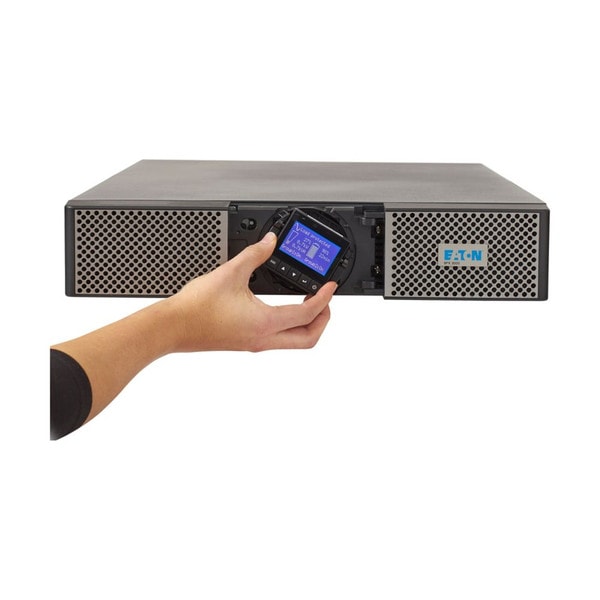

This UPS is equipped with a graphical LCD display for easy monitoring and management.It also features hot-swappable internal batteries and extended battery modules (EBMs) for increased runtime.The 9PX1500RT is compatible with virtual environments such as VMware.

Documents:

Brochures
Eaton 9PX 700-3000 VA UPS brochure

Drawings
Eaton 9PX UPS 700-1500 VA 120V outline drawing

Manuals and user guides
9PX 700-3000 VA 2U UPS user guide

Specifications and datasheets
Eaton 9PX UPS guide specification: 700-3000 VA
