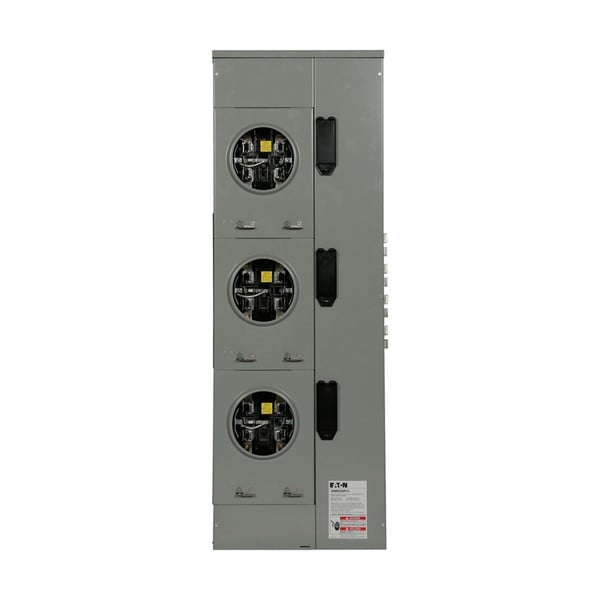

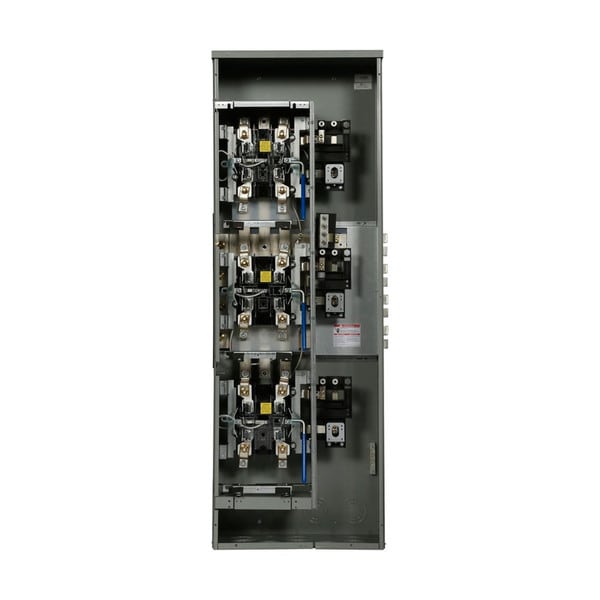

35MM320R12 - Eaton 35MM Commercial Meter Stack

The Eaton 35MM Commercial Meter Stack is a robust metering solution designed for commercial multi-tenant applications. With a compact footprint and modular configuration, this meter stack simplifies installations and ensures reliable power distribution across multiple units. It features a ringless, plug-in socket design and supports both three-phase input and single-phase output configurations.

Key Features:

• Amperage Rating: 200A per socket
• Bus Rating: 1200A aluminum bus
• Sockets: 3 ringless, plug-in sockets
• Mounting: Surface-mounted
• Phases: 3-phase in / 1-phase out
• Socket Type: 5-jaw configuration
• Meter Style: Ringless
• Enclosure Type: NEMA 3R for outdoor use
• Bypass Type: Lever-operated bypass
• Compatibility: Works with main circuit breakers such as EHD2_, CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM, CVH2_XMM

This commercial meter stack is a space-saving, dependable option for high-density applications where individual tenant metering is required, such as apartment buildings or strip malls.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 35MM320R12
