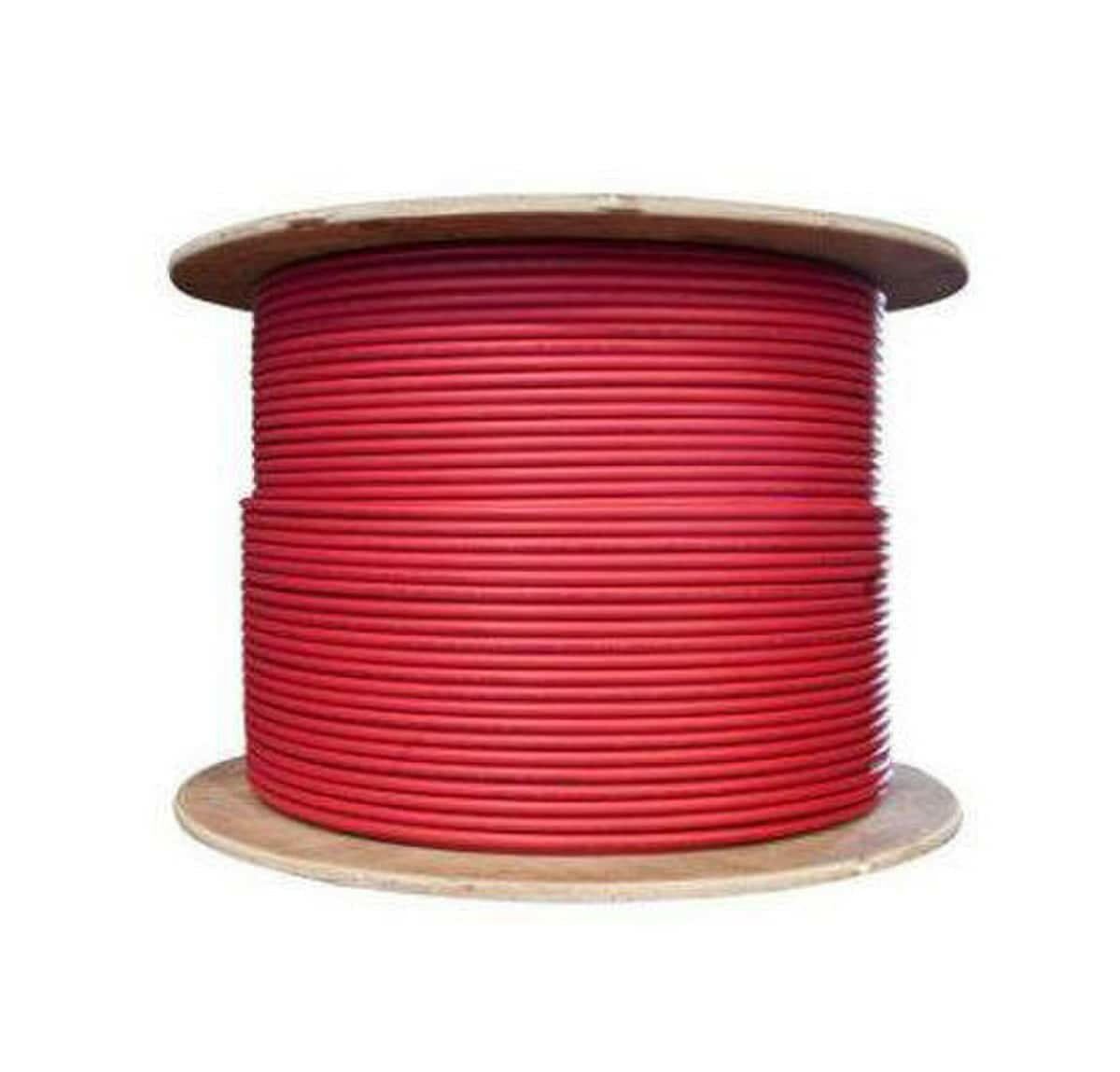

10AWG 1000VDC 1500' Red PV Wire

This single-conductor wire features heat and moisture resistant, crosslinked-polyethylene insulation (XLPE) (Type PV wire, USE-2, RHH, RHW, RHW-2). Rated for direct burial or in conduit this cable is sunlight resistant, flame retardant, and rated for temperatures from -40 to 90 deg C. This cable is listed to UL 854 as Type PV Wire, USE-2 1,000 V, for use with transformerless inverters.

Features

• Single Conductor, insulated and jacketed, sunlight resistant, photovoltaic wire rated at 90ºC wet or dry, 600V, 1000V. 600/1000 VDC. Copper conductors with Black insulation. 90c wet/damp/dry. Can be direct buried


Specifications

• Type: Insulated & Jacketed
• Wire Size: 10 AWG
• Length: 1500 ft
• Color: Red
• Conductor Material: Copper
• Suitable For Use With: Transformerless Inverters
• Insulation Material: Polyethylene (PE)
• Voltage Rating: 1000 VDC
• Number of Conductors: 1
• Standards: UL Listed
• Weight: 46 lb


Documents

• Specification Sheet
• Warranty Sheet
