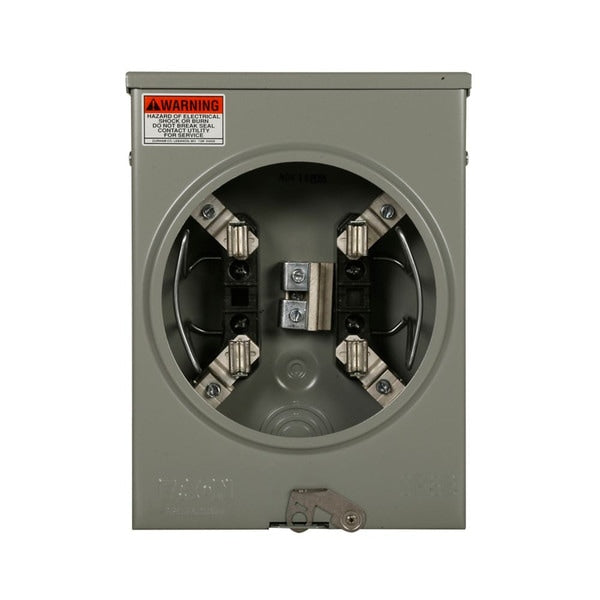

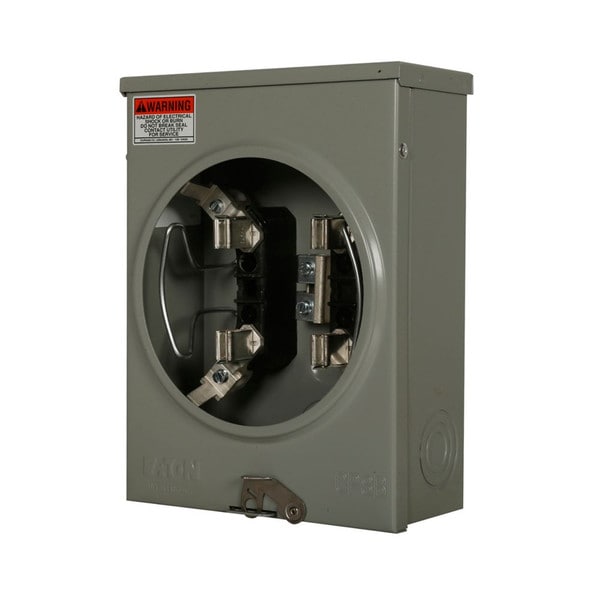

1005826ACH - Meter Socket

The Meter Socket is a durable and reliable solution designed for residential and light commercial applications. It has a 125 A rating and supports a voltage of up to 600 V. The socket features a solid top hub and is designed for bottom feed installation, with top and bottom mounting options. It is equipped with four jaws and supports three wires, making it ideal for single-phase systems. This meter socket accommodates wire sizes from 8 AWG to 2/0 AWG, offering flexibility for different installations. With overall dimensions of 10.88 inches in height, 8 inches in width, and 3.5 inches in length, it is compact yet robust. Weighing only 5 lb, it is easy to handle and install.

Key Features:

• 125 A rating for reliable power distribution
• Solid top hub and four jaws for secure connections
• Supports 3 wires for single-phase systems
• Accommodates wire sizes from 8 AWG to 2/0 AWG
• 600 V maximum voltage rating with bottom feed installation

This Meter Socket offers a secure and efficient solution for accurate power metering in various electrical systems.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - 1005826ACH
