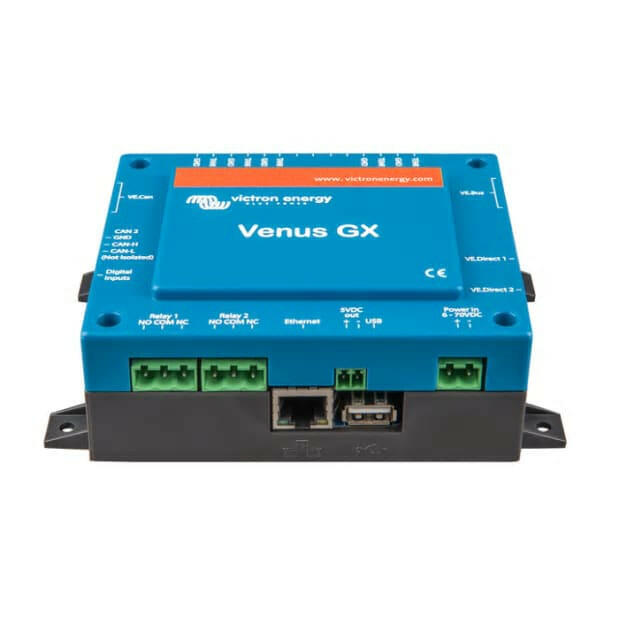

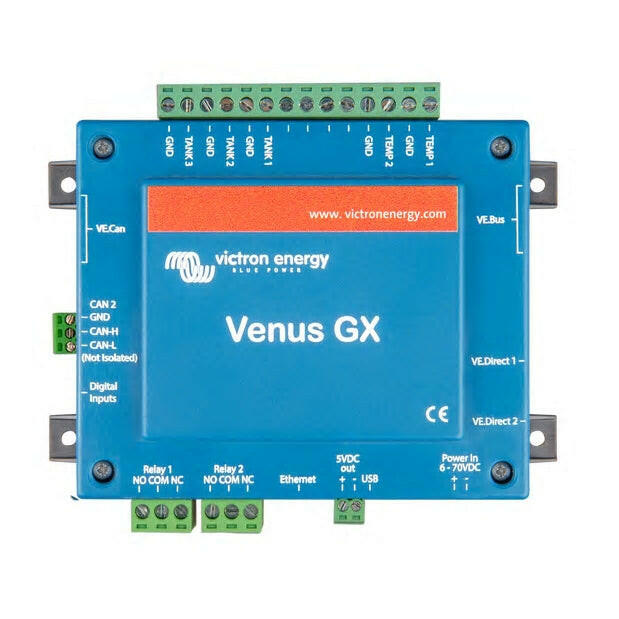

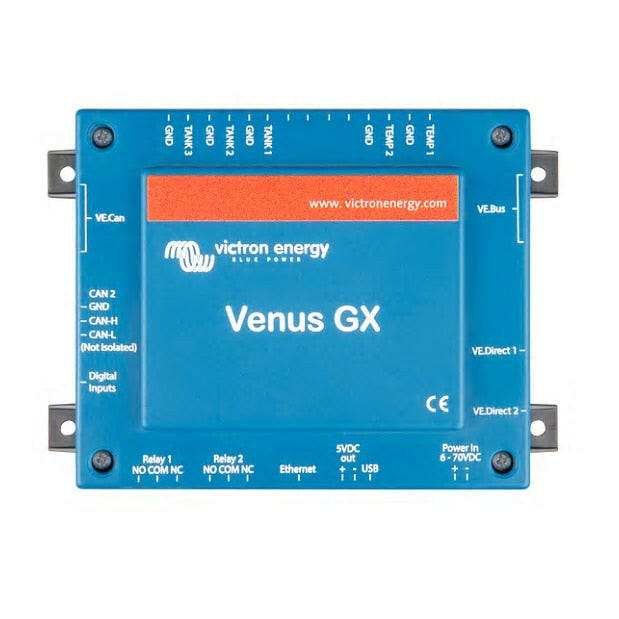

Victron Venus GX (SKU Part Number BPP900400100)

The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM).

Features

• VRM Online Portal - All readings are forwarded to our free remote monitoring website: the VRM Online Portal
• Remote Console on VRM - The way to access the device for setting up, as well as monitoring, is via Remote Console. Either via VRM, via the built-in Wi-Fi Access Point, or on the local LAN/Wi-Fi network
• Automatic genset start/stop - A highly customizable start/stop system. Use state of charge, voltage, load and other parameters. Define a special set of rules for quiet times, and optionally a monthly test run
• The heart of ESS - Energy Storage System - The Venus GX is the Energy Manager in an ESS system. More information in the ESS manual
• Data logging - When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the Venus GX will store the data internally, up to 48 hours. By inserting a micro SD-card or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the VictronConnect app, for analysis
• Internet connection - The Venus GX can be connected to internet with an Ethernet cable and via Wi-Fi. The Venus GX has no internal cellular modem: there is no slot for a sim-card. Use an off-the-shelf GPRS or 3G router instead
• Tank level inputs - The tank level inputs are resistive: connect them to a resistive tank sender. Such tank senders are not supplied by Victron. The tank level ports can each be configured to work with either European tank senders (0 - 180 Ohm), or US (240 - 30 Ohm)
• The Venus GX can automatically update itself from the internet, when there is a new software version available
• Multiple languages: English, Czech, German, Spanish, French, Italian, Dutch, Russian, Swedish, Turkish, Chinese, Arabic
• Use the Venus GX as a Modbus-TCP gateway to all connected Victron products
• Powered by the Venus OS - embedded linux


Specifications

• Power Supply Voltage: 8 -70 VDC
• Current Draw: 210 mA at 12 V, 110 mA at 24 V, 60 mA at 48 V
• Communication Port: 2 Separate VE.Direct Ports - Isolated VE.Direct, 2 Paralleled RJ45 Sockets - Isolated VE.Can, 2nd CAN interface - Non Isolated Can, 2 Paralleled RJ45 Sockets - Isolated VE.Bus, 2 USB Host Ports - Not isolated USB, 10/100/1000MB RJ45 socket - Isolated Except Shield Ethernet, Use to connect to Remote Console Wi-Fi Access Point, Connect the Venus GX to an Existing Wi-Fi Network Wi-Fi Client
• Potential Free Contact: NO/COM/NC - 6 A 250 VAC/30 VDC
• Tank Level Inputs: 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm)
• Temperature Level Inputs: 2 x Requires ASS000001000
• Modbus-TCP: Use Modbus-TCP to Monitor & Control all Products Connected to the Venus GX
• JSON: Use The VRM JSON API to Retrieve Data From The VRM Portal
• Dimensions: 45 mm Height x 143 mm Width x 96 mm Depth
• Operating Temperature: -20 to 50 deg C
• Standards: EN 60950-1:2005+A1:2009+A2:2013, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2


Documents

• Specification Sheet
