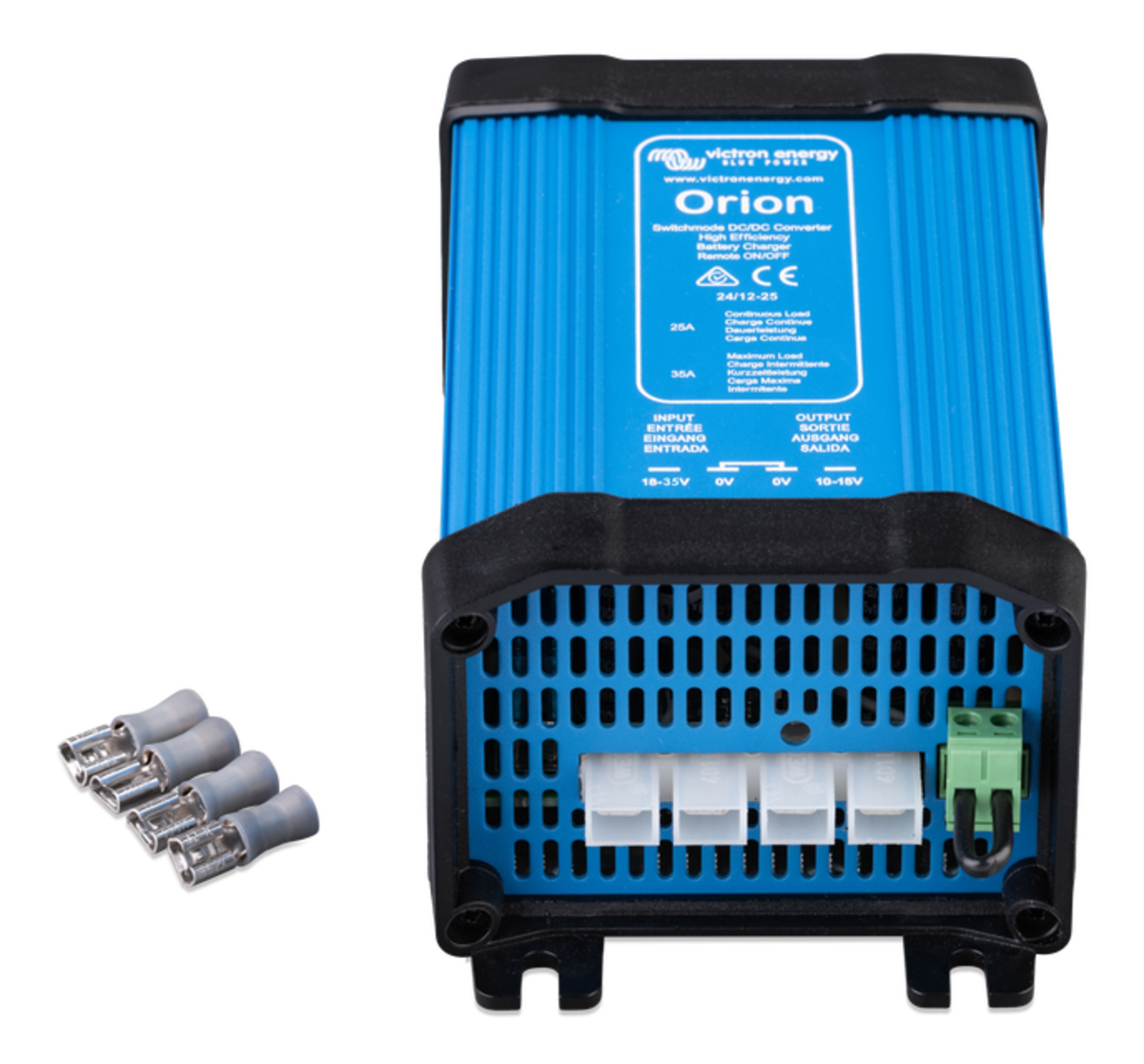

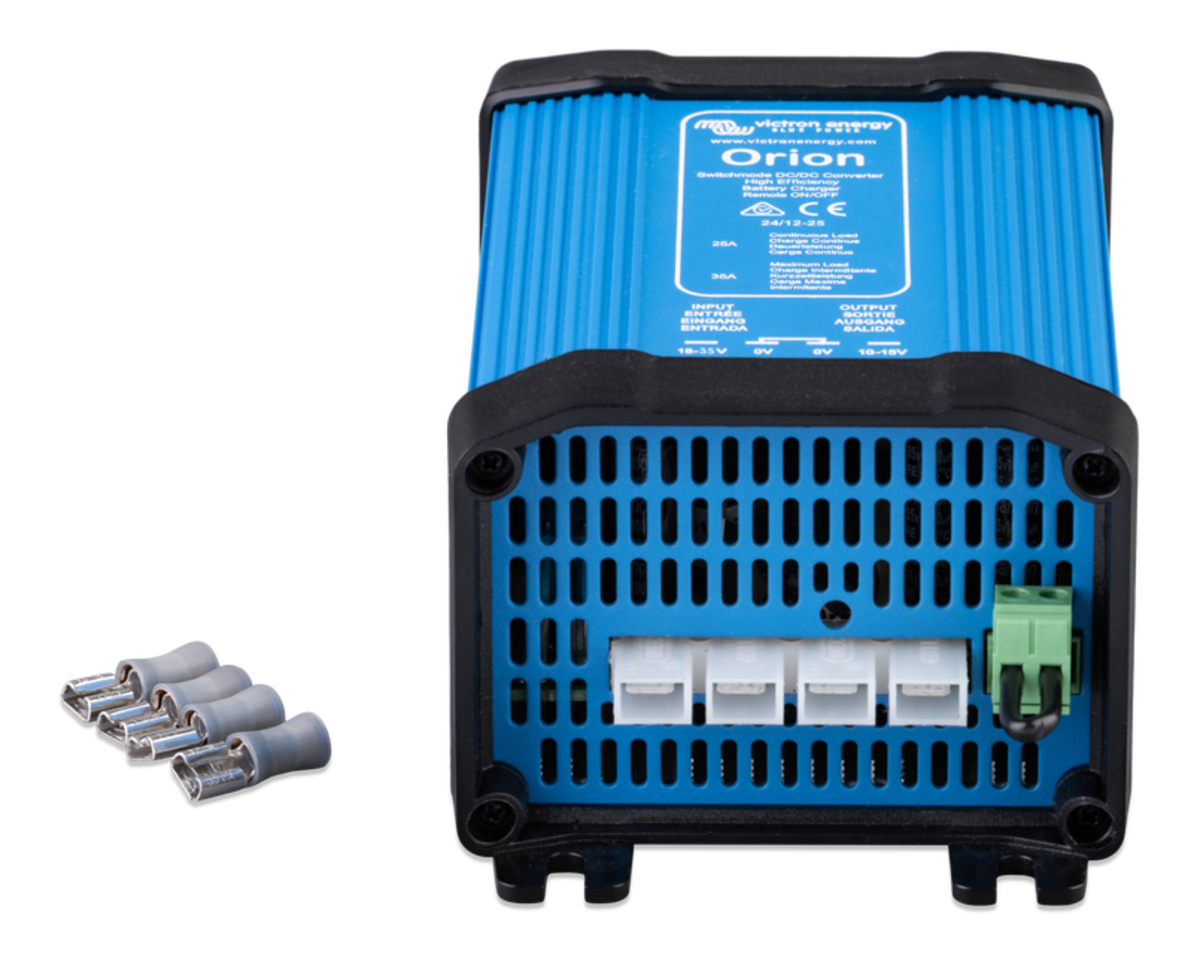

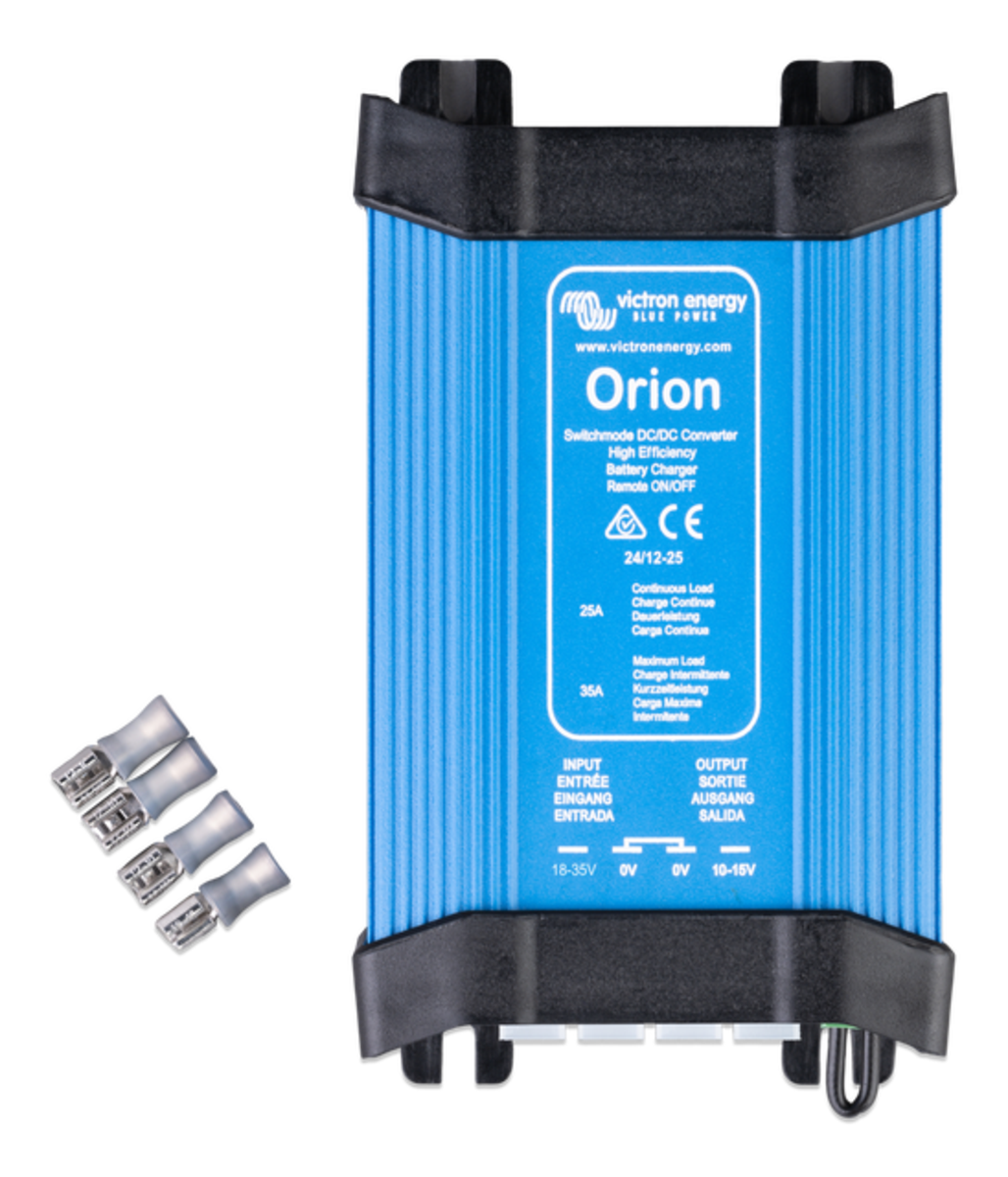

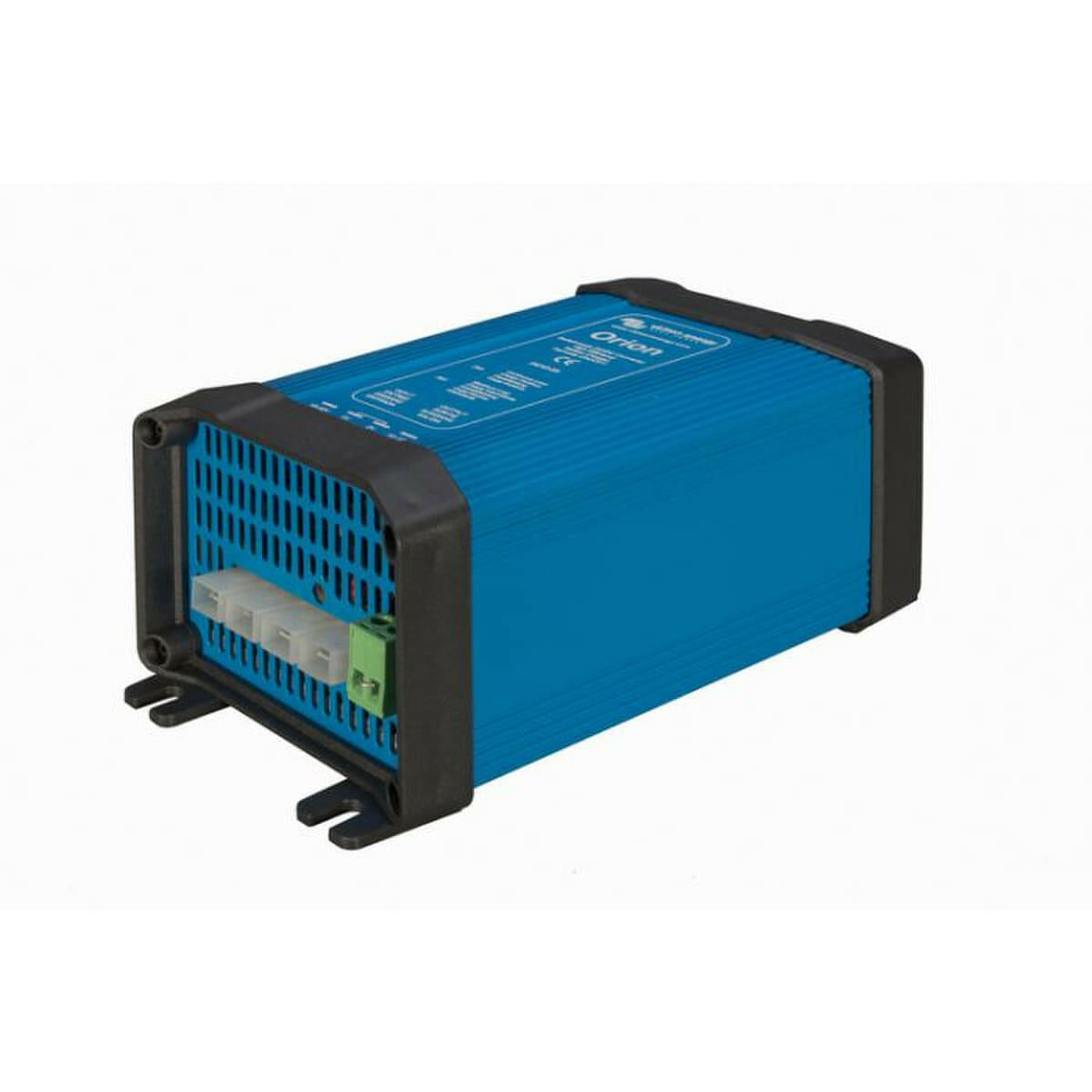

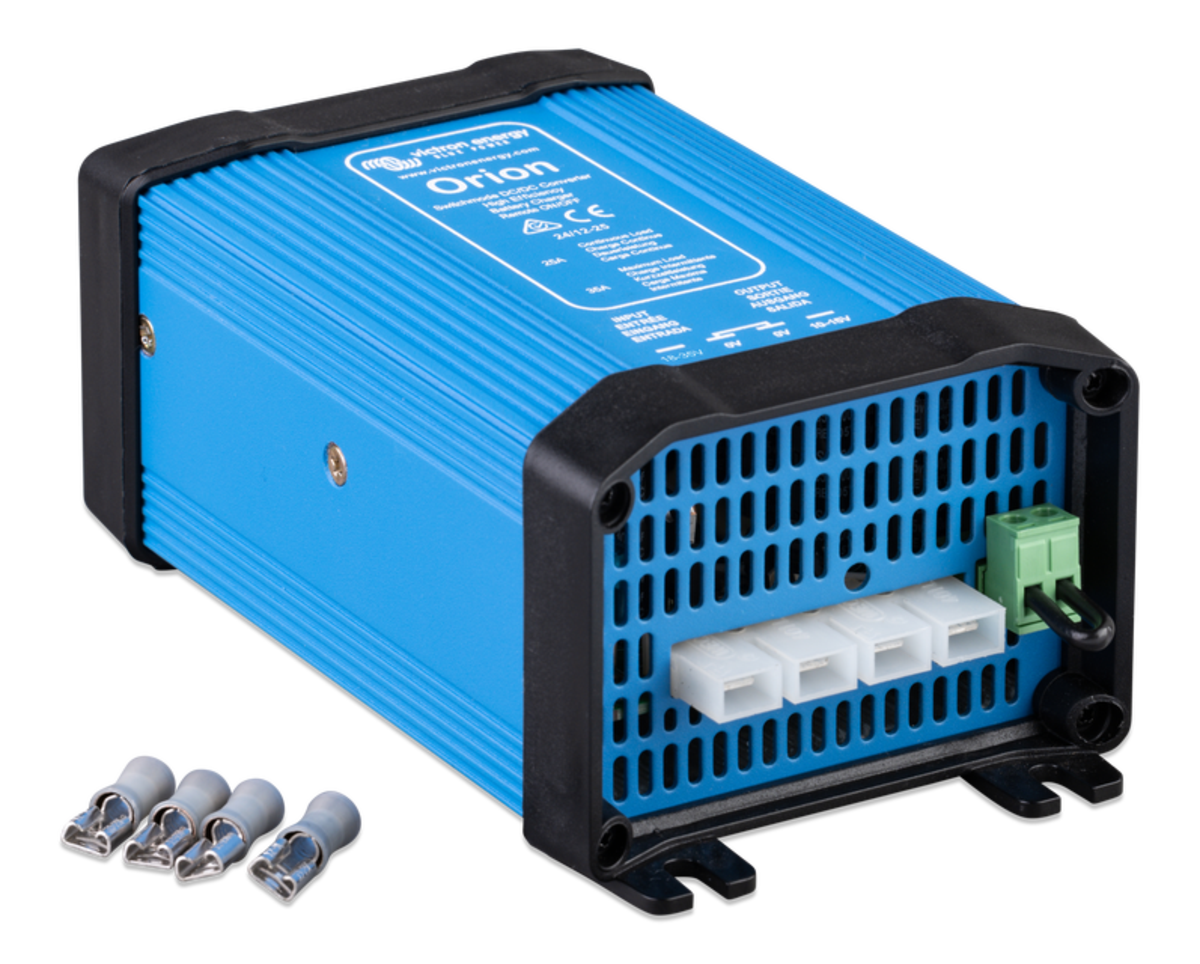

Victron Orion 24V to 12V - 300W 25A Non Isolated DC/DC Converter (SKU Part Number ORI241225020)

The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

Specifications

• Type: Isolated
• Input Voltage Range: 32-70 V
• Under Voltage Shutdown: 28 V
• Under Voltage Restart: 30 V
• Output Voltage Adjust Range: 20-30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Tolerance: +/-0.2 V
• Output Noise: 2 mV rms
• Continuous Output Current at Nominal Output Voltage & 40 deg C: 12 A
• Maximum Output Current (10 s) at Nominal Output Voltage: 15 A
• Short-Circuit Output Current: 30 A
• Continuous Output Power at 25 deg C: 320 W
• Continuous Output Power at 40 deg C: 280 W
• Efficiency: 89%
• No Load Input Current: <80 mA
• Current Consumption: <200 uA When Disabled Via its Remote Port
• Galvanic Isolation: 200 VDC Between Input, Output & Case
• Operating Temperature: -20 to 55 deg C
• Humidity: Maximum 95% Non-Condensing
• DC Connection: Screw Terminals
• Maximum Cable Cross-Section: 16 mm² 6 AWG
• Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
• Dimensions: 5.1 in x 7.3 in x 2.8 in
• Weight: 3 lb


Documents

• Specification Sheet
• Catalog
• Instruction/Installation Manual
