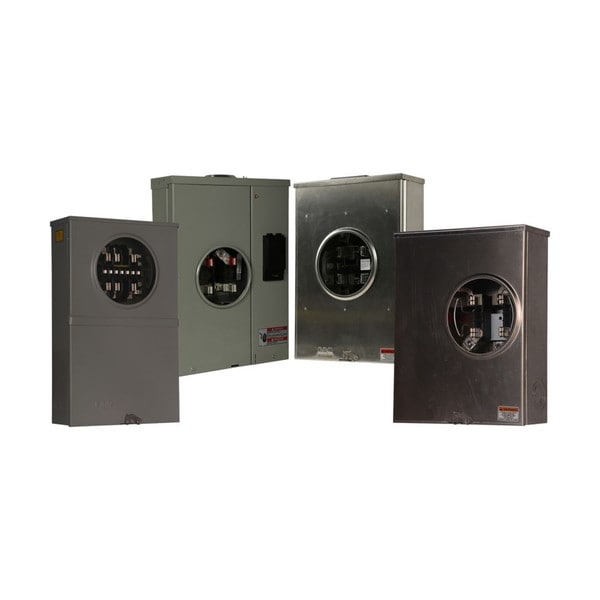

UGHTRS213CE - Eaton Meter Socket

The Eaton Meter Socket is a high-quality solution designed for residential service applications, providing reliable and secure metering performance. This 1-position meter socket is rated for 200A and supports over/under configurations with a hub cover plate included. It features a 5-jaw, 1-phase, 3-wire design with triplex capability, and supports conductor sizes from 6 to 350 kcmil. The ringless construction includes a grounded 5th terminal in the 9 o’clock position and a horn bypass for enhanced accessibility and serviceability. Rated up to 600 V, it also includes a ground connector accommodating 14–2 Cu conductors.

Key Features:

• Product Type: Meter Socket
• Service Type: 1-Position Residential Service
• Amperage Rating: 200A
• Voltage Rating: 600 V
• Configuration: Over/Under, 5-Jaw, 1-Phase, 3-Wire
• Terminal: Grounded 5th Terminal (9 o’clock position)
• Construction: Ringless with Horn Bypass
• Hub: Cover Plate Included
• Wire Range: 6–350 kcmil
• Ground Connector: Accepts 14–2 Cu

This Eaton meter socket delivers safe, efficient, and code-compliant performance, making it a dependable choice for residential metering installations.
