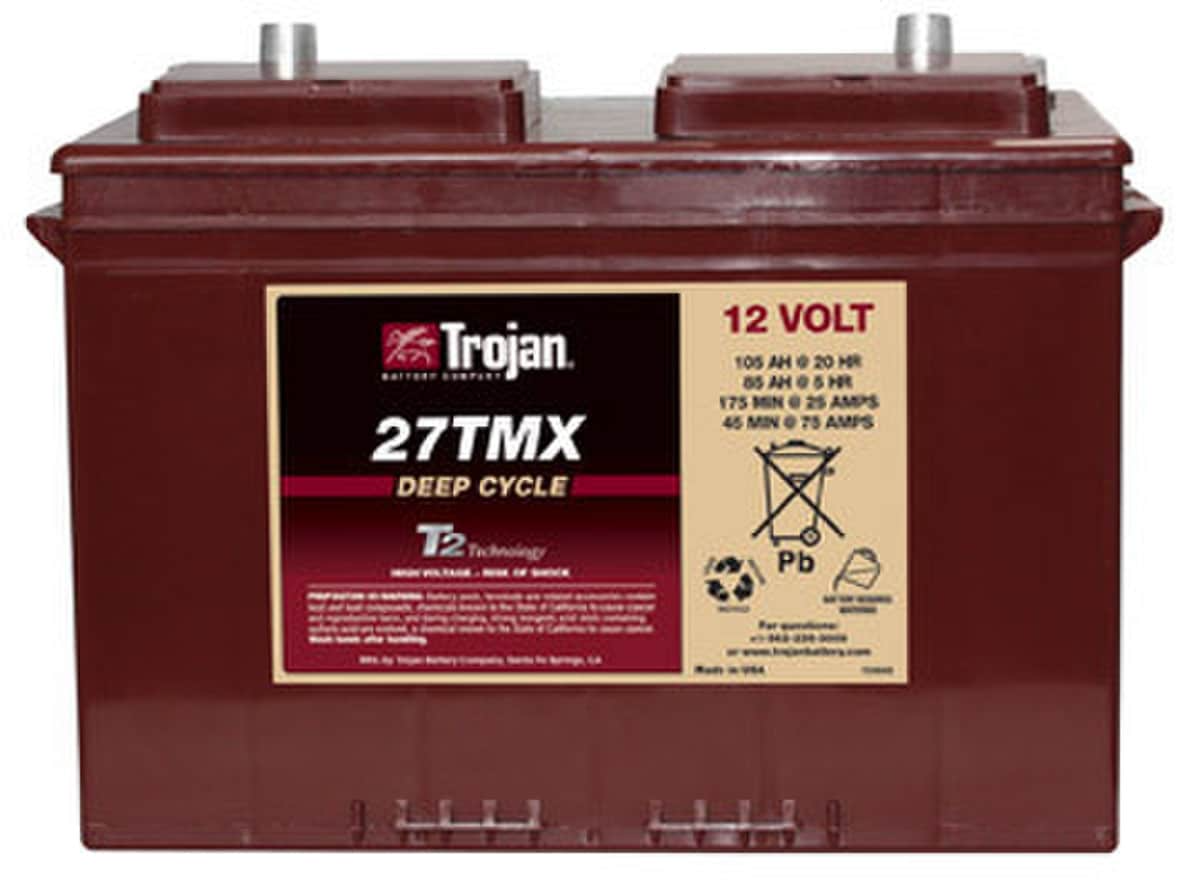

Trojan Battery 12 V 105 Ah Flooded Lead Acid Battery with POD Vent

The 27TMX 12V flooded lead acid battery enhances the performance of different applications, such as Floor Cleaning Machines, Recreational Vehicles, or Marine, while providing excellent energy output. The technology of this flooded lead acid battery provides sustained capacity to increase operating power.

Features

• Part of the Signature Line, the flagship Trojan flooded lead-acid batteries
• Featuring Alpha Plus® paste with T2 Technology for maximum sustained performance, longer life and increased total energy
• Maxguard T2 advanced separator sustains performance providing exceptionally longer battery life and significantly lowering your operating costs
• Manufactured polypropylene rugged case
• Heat and corrosion resistant
• Only 5-15% self-discharge per month
• 4 different terminal types
• 99% recyclable

Specifications

• Type: With POD Vent, Flooded
• Voltage Rating: 12 V
• Nominal Capacity:
  • 175 min at 25 A
  • 45 min at 75 A
  • 85 Ah at 5-Hr
  • 97 Ah at 10 hr
  • 105 Ah at 20 hr
  • 117 Ah at 100 hr
• Dimensions: 12.72 in Length x 6.6 in Width x 9.24 in Height
• Material: Polypropylene
• Battery Group Size: 27
• Operating Temperature: -20 to 45 deg C
• Self-Discharge Rate: 5-15% per Month Depending on Storage Temperature Conditions
• Terminal: 5, 9
• Technology: T2
• Energy: 1.4 kWh
• Cell Chemistry: Flooded/Wet Lead-Acid Battery
• Color: Maroon
• Absorption Charge:
  • 7.4 at 6 V
  • 14.8 at 12 V
  • 29.6 at 24 V
  • 44.4 at 36 V
  • 59.2 at 48 V
• Float Charge:
  • 6.6 at 6 V
  • 13.2 at 12 V
  • 26.4 at 24 V
  • 39.6 at 36 V
  • 52.8 at 48 V
• Standards: UL Listed
• Weight: 55 lb
• Warranty: 1 Year Limited

Documents

• Specification Sheet
• Owners/User Manual
• Brochure
• Warranty Information
