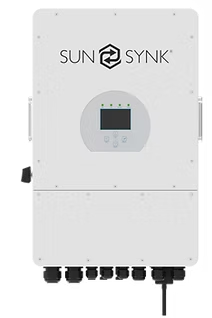

Sunsynk 8 kW Hybrid Inverter

Achieve energy independence without compromise. The Sunsynk 8 kW Hybrid Inverter blends on-grid and off-grid functionality, helping you maximize solar self-consumption while seamlessly supporting battery storage and grid backup.

Key Features & Benefits

• Hybrid versatility: Acts as both inverter and charger—combine solar, battery, and grid input into a single integrated system.

• High output: Provides 8,000 W continuous AC output, handles bursts up to 8,800 W.

• Efficient energy conversion: Up to 97.6% maximum efficiency, with Euro efficiency at ~97.0%.

• Robust battery support: Compatible with both lead-acid and Li-Ion battery chemistries. 48 V nominal (operating between 40 V to 60 V)

• Strong charge/discharge capability: Up to 190 A charging/discharging current ensures fast battery cycling.

• Dual MPPT inputs: Two independent MPPT strings, each handling multiple PV strings for optimized solar harvesting.

• Wide MPPT range: ~125 V to 425 V (or similar) across MPPTs to accommodate various PV configurations.

• Seamless grid/off-grid transition: Automatic switching between on-grid and off-grid modes within milliseconds.

• Smart operation & monitoring: LCD display, optional WiFi or Ethernet modules, remote monitoring via app or browser.

• Solid protection: IP65 rating for outdoor/indoor use, protections for arc faults, lightning, over-current, reverse polarity, insulation loss, anti-islanding, and more.

Typical Specifications Snapshot

Why Choose the Sunsynk 8 kW Hybrid Inverter?

• Optimize solar usage — Store excess energy during the day and use it at night or when grid is unavailable.

• Backup resilience — Automatically kicks in during power outages to keep essential loads running.

• Scalable system — Can be paralleled with additional units (depending on variant) for larger systems.

• Future-proof & flexible — Works with different battery types, supports remote monitoring and smart configurations.

• Durable & safe design — Outdoor-friendly with strong protection features to withstand harsh environments.

Document: Specification Sheet
