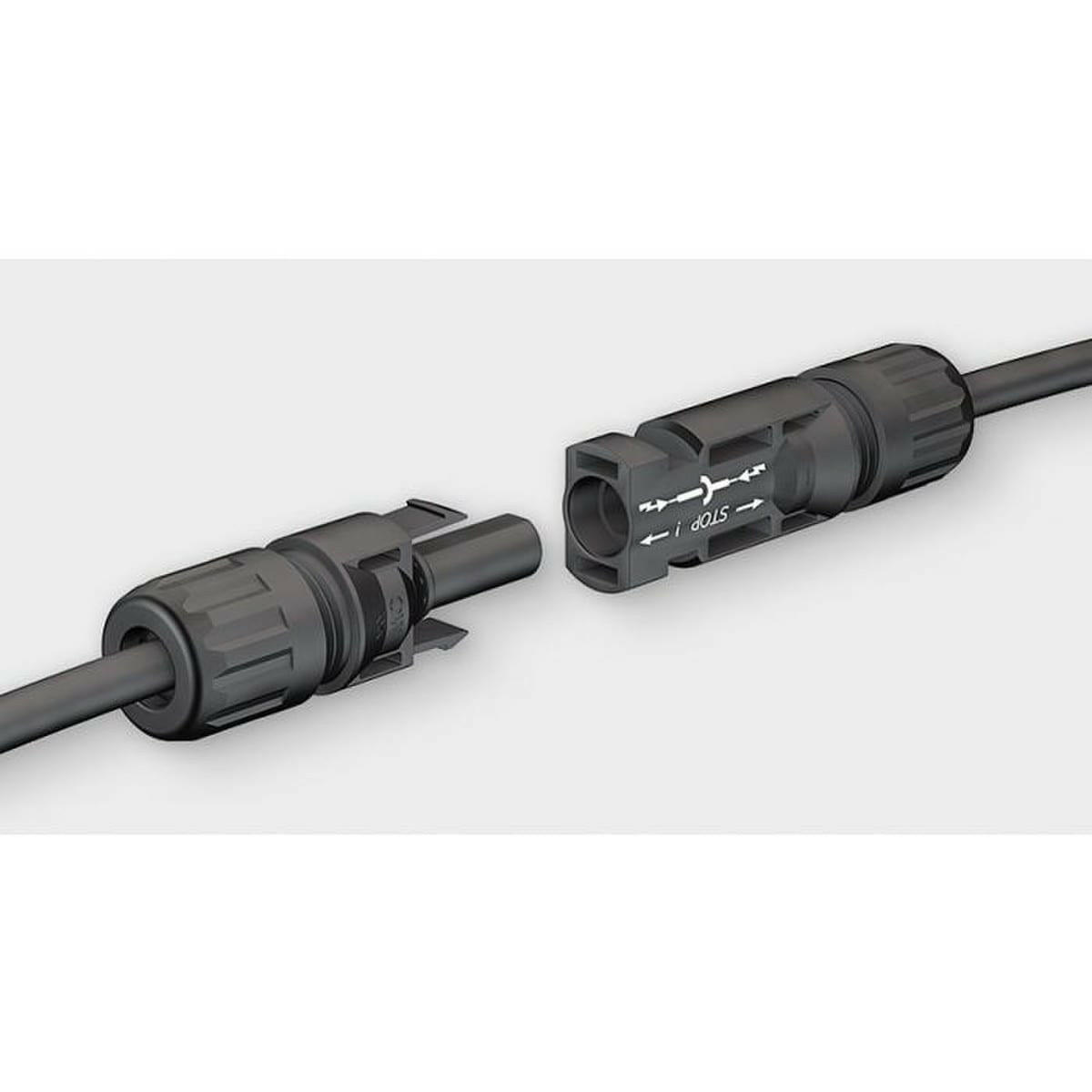

Staubli (Multi Contact) MC4 connector pair (male and female set) 32.0016P0001-UR & 32.0017P0001-UR

Mitigate power loss, downtimes, service hours, risk of fire of your PV-System by using Original MC4 and MC4-Evo 2 connectors. The unique MULTILAM contact technology will guarantee an excellent long-term reliability and a low contact resistance over the entire product life. UL Rated for 1500VDC, 50A when using 10AWG wire.

Specifications

• Type: Male & Female
• Material: Tin-Plated Copper
• Current Rating: 39 A
• Rated Voltage: 1000 V DC (IEC 62852), 1500 V (UL 6703)
• Cable Diameter: 7-8.8 mm (32.0016P0001-UR, 32.0017P0001-UR)
• Connection: Crimping
• Protection: IP65/IP68 (Mated), IP2X (Unmated)
• Operating Temperature: -40 to 85°C
• Gender: Socket (32.0016P0001-UR), Plug (32.0017P0001-UR)
• Width of Crimp Opening: 5.8 mm (32.0016P0001-UR, 32.0017P0001-UR)
• Cross Section: 4-6 mm²
• Wire Size: 10-12 AWG
• Degree of Pollution: 3
• Maximum Contact Resistance: 0.25 mΩ
• Rated Impulse Voltage: 16 kV
• Contact System: MULTILAM
• Insulation Material: PC/PA
• Fire Protection Class: UL94:V-0
• Standards: TUV, UR, CSA, CQC, JET
• Application: Photovoltaics
