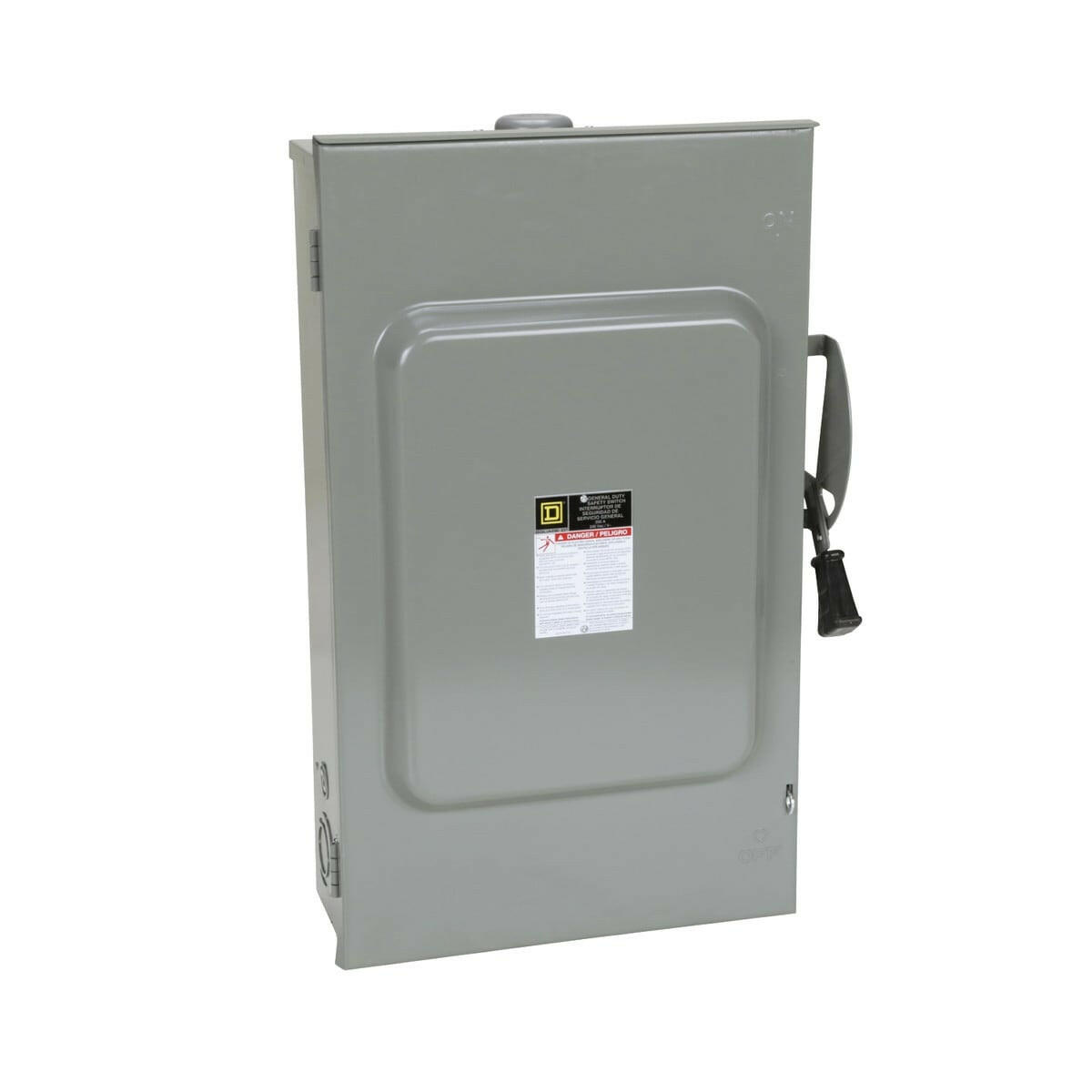

Square D/Schneider Electric 240 Vac Non-Fusible General Duty Single Throw Safety Switch

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 200A with a NEMA 3R degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 6/250 kcmil, aluminum/copper. This switch is certified to UL standards. Dimensions for this product are 29 in (H), 19 in (W), 8.25 in (D). General Duty safety switches come with an 18 months warranty.

Features

• Excellent for disconnecting lighting, air conditioning, and appliances
• Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
• Quick make, quick break operating mechanism
• 18 Months warranty

Specifications

• Type: General Duty, Single Throw
• Width: 19 in
• Depth: 8.25 in
• Height: 29 in
• Voltage Rating: 240 Vac
• Amperage Rating: 200 A
• Number of Poles: 3
• Enclosure Rating/IP Rating: NEMA 3R
• Disconnect Type: Non-Fusible
• Mounting Type: Surface
• Terminal Type: Lug
• Number of Wires: 3
• Warranty: 18 Months
• Standards: UL Listed File E2875

Documents

• Specification Sheet
• Catalog
• Instruction/Installation Manual
