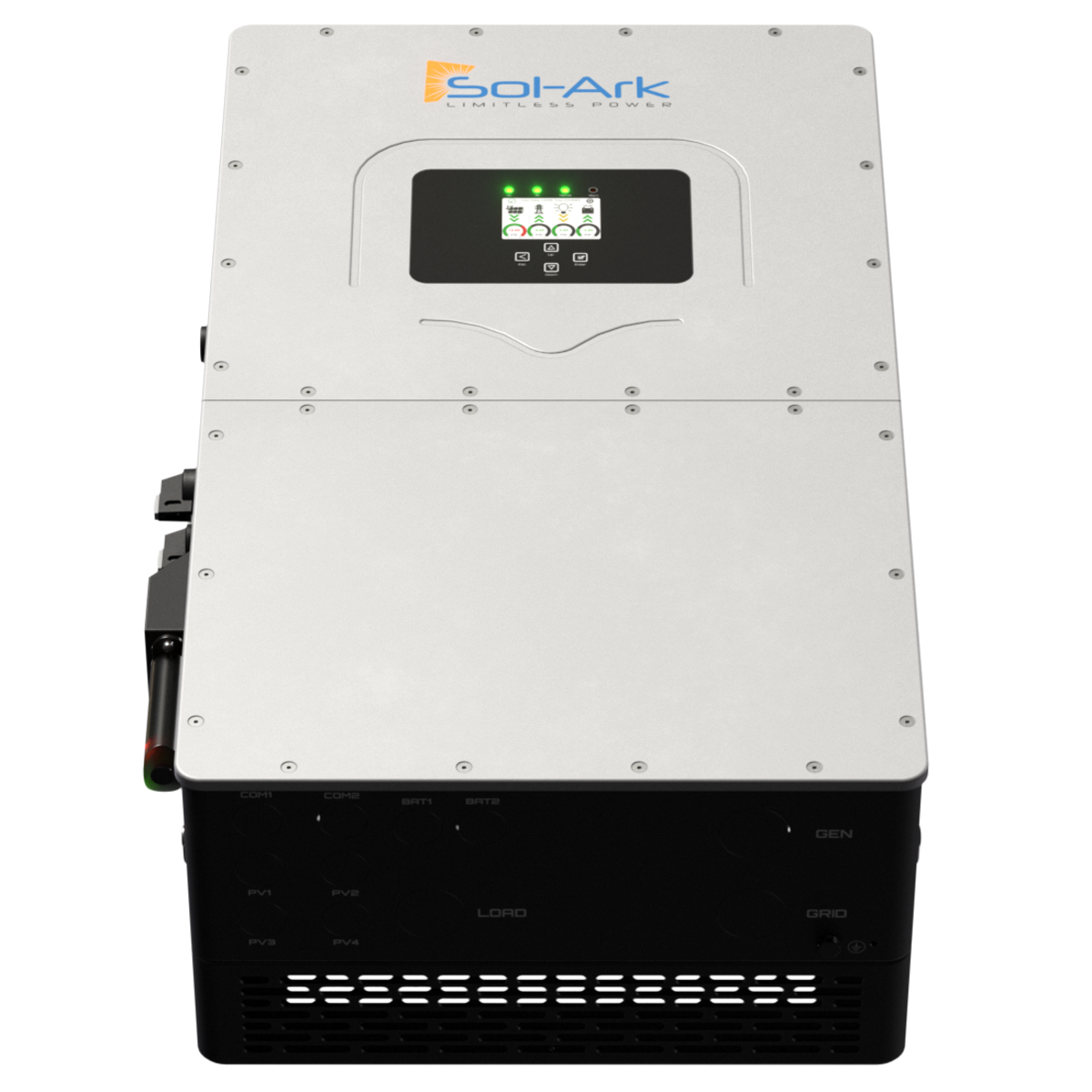

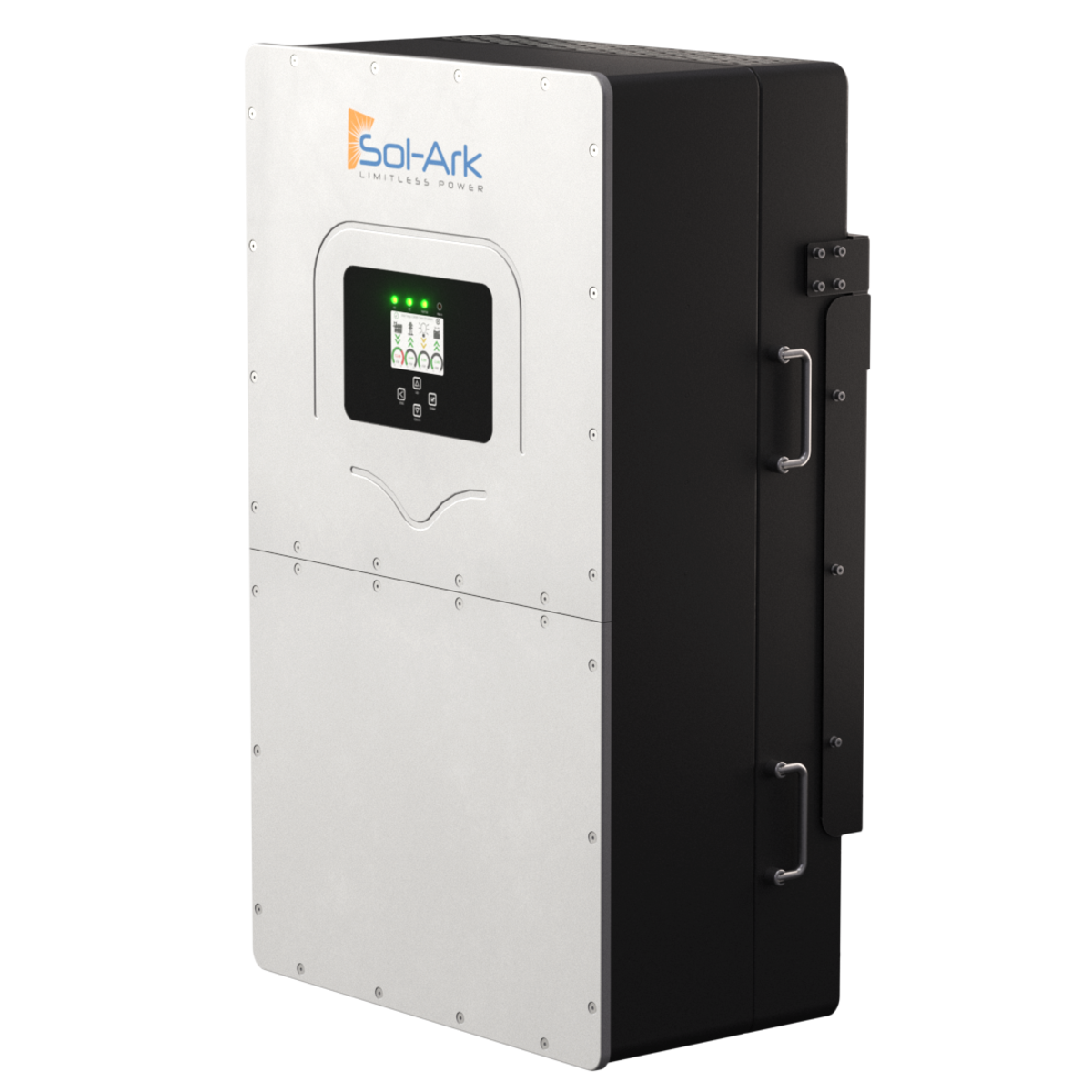

Sol-Ark 30000 W (3 Phase) Grid-Tie/Off Grid Battery-Based Solar Hybrid Inverter

Sol-Ark® solar hybrid inverter designed for light commercial and industrial businesses.

Features

• Easy Install - The Sol-Ark Inverter comes with everything you need to install it. Nicely packaged for added efficiency
• Fleet Management - With Sol-Ark's remote access features and app you are never out of touch to quickly repair or adjust any system without being on site
• Battery Agnostic - Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium
• Warranty and Reliability - Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs


Specifications

• Type: Grid-Tie/Off-Grid, Battery-Based
• Inverter Dimensions:
  • Width: 20.8 in
  • Height: 35.2 in
  • Depth: 11.6 in
• Maximum Allowed PV Power (STC): 39,500 W (Input)
• MPPT Voltage Range (PV): 150-500 V
• Startup Voltage (PV): 180 V
• Maximum DC Input Voltage (PV): 550 V
• Maximum Operating Input Current per MPPT: 36 A
• Maximum Short-Circuit Current per MPPT: 55 A
• Number of MPPT Trackers: 4
• Number of PV Strings per MPPT: 2
• Maximum AC Coupled Input: 30,000 W
• Battery Chemistry: Lithium Iron Phosphate (LFP)
• Number of Battery Inputs: 2
• Battery Input Terminal Rating: 50 A
• Nominal DC Voltage (Battery): ≥ 300 V
• Operating Voltage (Battery): 160-500 V
• Battery Capacity: 50-9900 Ah
• Maximum Battery Charge/Discharge Current: 100 A (50 A per input)
• Charging Controller: 3-Stage with Equalization
• Grid to Battery Charging Efficiency: 96%
• Automatic Generator Start (AGS): 2 Wire Start - Integrated
• BMS Communication: CANBus & RS485
• Nominal AC Voltage: 120/208 V (3 Phase)
• Grid Frequency: 50/60 Hz
• Real Power (Maximum Continuous): 30,000 W (3 Phase)
• Maximum Output Current: 83.4 A
• Peak Apparent Power (10 s, Off-Grid): 45,000 VA (3 Phase)
• Maximum Output Fault Current (100 ms): (Not specified)
• Maximum Grid Passthrough Current: 200 A (10 Min)
• Power Factor Output Range: +/-0.8 Adjustable
• Backup Transfer Time: 5 ms
• CEC Efficiency: 96.5%
• Maximum Efficiency: 97.5%
• Design (DC to AC): Transformerless DC
• Stackable: Up to 10 in Parallel
• Integrated Features:
  • PV DC Disconnect Switch (NEC 240.15)
  • Ground Fault Detection (NEC 690.5)
  • PV Rapid Shutdown Control (NEC 690.12)
  • PV Arc Fault Detection (NEC 690.11)
  • PV Input Lightning Protection
  • PV String Input Reverse Polarity Protection
  • Surge Protection (DC Type II/AC Type II)
• Enclosure Rating: IP65/NEMA 3R
• Ambient Temperature Rating: -40 to 60 °C (Derating > 45 °C)
• Noise Rating: <30 dB at 25 °C
• Idle Consumption (No Load): 60 W
• Communication and Monitoring: Wi-Fi & LAN Hardware Included
• Standards:
  • UL 1741-2021 (UL1741SB)
  • CSA C22.2 No 107.1-16
  • IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0)
  • UL 1741 CRD-PCS, UL1699B, CEC
  • SGIP Pending Listing, TUV, ETL, PV Cycle, MES, IEC
• Warranty: 10 Years
• Weight: 176 lb
• Application: Commercial & Industrial
