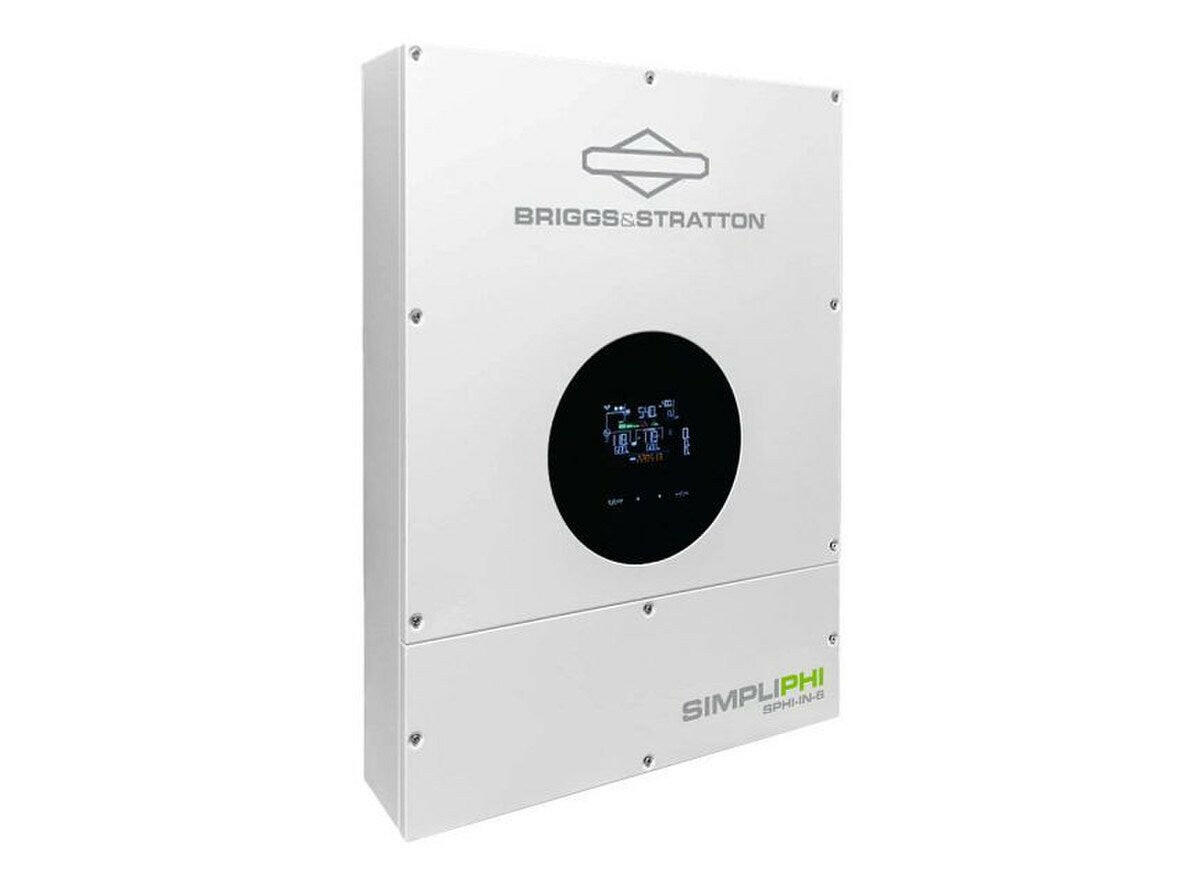

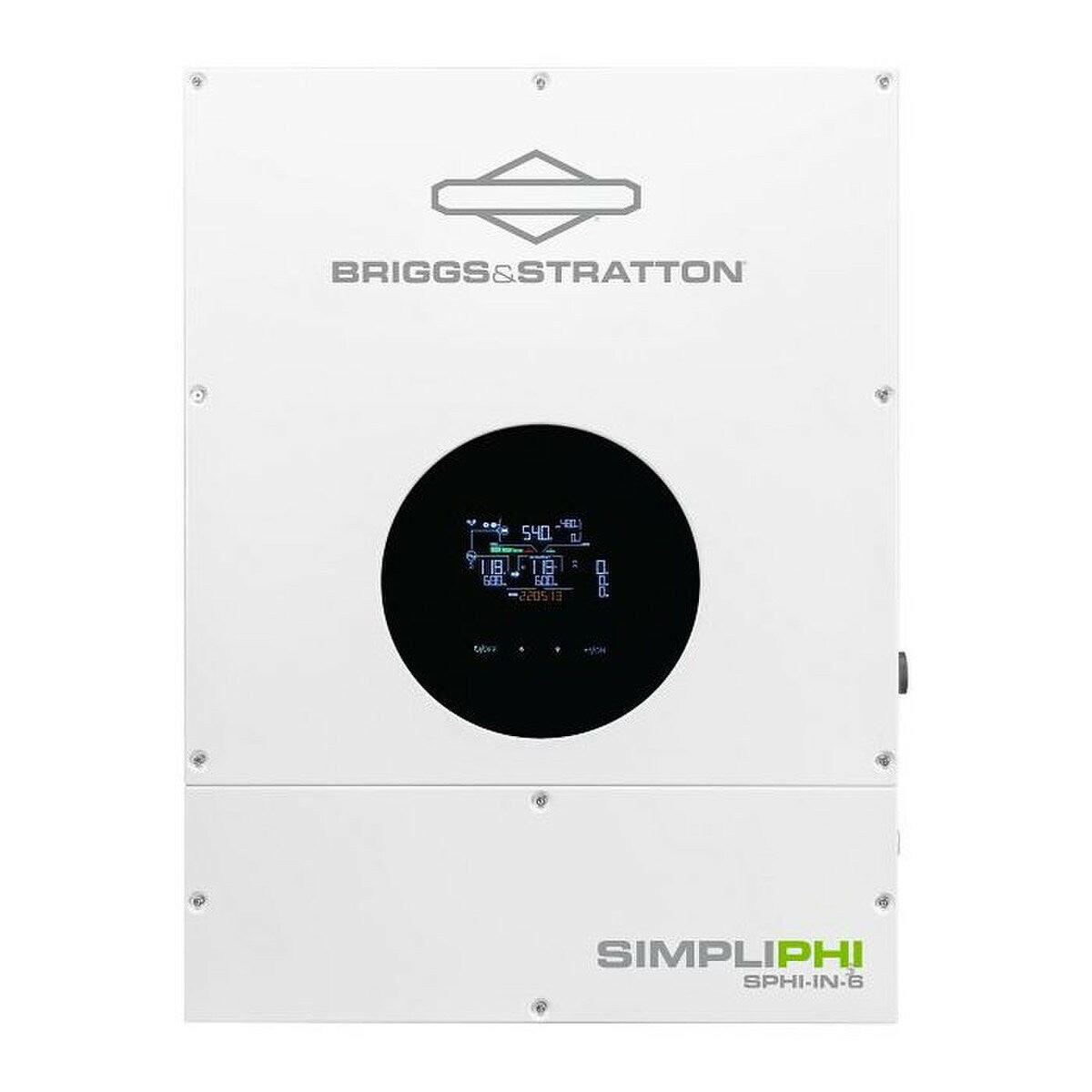

Simpliphi ESS 6 kW Inverter (SKU Part Number SPHI-IN-6)

The advanced design of the SimpliPHI™ 6 kW Hybrid Inverter offers versatile applications that seamlessly integrate solar, generator and/or grid power in both AC and DC coupled configurations. - on-grid or off. This smart hybrid inverter with integrated MPPT can also be easily paired to work with the SimpliPHI 4.9 kWh battery to provide an efficient, easy-to-use energy storage system for any home or business that can allow for Time-of-Use applications, peak demand shaving, backup power and peace of mind. In addition, the SimpliPHI Hybrid Inverter can be paired with other SimpliPHI batteries and those on the Approved Battery List.

Feature Bullets

• Scalable for any application - Scale up to 9 inverters for a total of 54 kW of power
• Off-grid and grid-connected systems - Simple installation for both AC coupled retrofit and new DC coupled systems
• Versatile installation options - IP65 rating supports all weather conditions for both indoor or outdoor installations
• Warranty coverage - 10-year limited warranty
• Seamless transition - Less than 8 milliseconds of switchover time protects sensitive electronics and minimizes downtime
• Simple digital interface - Easy programming and monitoring of primary system functions on the LCD inverter interface
• EnergyTrak™ enabled - Remote monitoring and quick 5-step system commissioning

Specifications:

Dimensions: 20.28 in Width x 27.55 in Height x 8.5 in Depth
Nominal Battery Voltage: 48 VDC - (Input Data)
DC Voltage Range: 40-62 VDC - (Battery Input Data)
Maximum Charging Voltage: 62 VDC (Configurable) - (Battery Input Data)
Maximum Charging Current: 120 A - (Battery Input Data)
Maximum Discharging Current: 120 A - (Battery Input Data)
Charging Curve: 3 Stages/Float - (Battery Input Data)
Charging Strategy for Li-Ion Battery: Self-Adaption to BMS - (Battery Input Data)
Number of DC Connections: 1 - (Battery Input Data)
Maximum DC Input Power: 7500 W - (PV String Input Data)
Nominal DC Voltage: 360 VDC - (PV String Input Data)
Maximum DC Input Voltage: 600 VDC - (PV String Input Data)
MPPT Range: 120-550 VDC - (PV String Input Data)
Start-up Voltage/Initial Feed In Voltage: 160 VDC/125 VDC - (PV String Input Data)
Maximum Input Current Per MPPT: 15 A - (PV String Input Data)
Maximum Isc PV: 21 A - (PV String Input Data)
Maximum Inverter Back Feed Current to Array: 0 A - (PV String Input Data)
Number of MPPT Trackers: 2 with 2 Inputs Each - (PV String Input Data)
Nominal Apparent Power Output to Utility Grid: 5000 VA - (AC Output Data (On-Grid))
Nominal Output Voltage: 220 VAC/240 AC L1-L2, 110 VAC/120 VAC L-N - (AC Output Data (On-Grid))
Nominal Output Frequency: 50/60 Hz - (AC Output Data (On-Grid))
Output Frequency Range: 47.5-51.5 Hz or 59.3-60.5 Hz - (AC Output Data (On-Grid))
Output Voltage Range: 105.5 - 132 VAC Per Phase - (AC Output Data (On-Grid))
Inrush Current/Duration: 30 A Per Phase/20 ms - (AC Output Data (On-Grid))
O/P DC Component: <100 mA - (AC Output Data (On-Grid))
Output Power Factor: >0.99 (Adjustable From 0.9 Leading to 0.9 Lagging) - (AC Output Data (On-Grid))
Output THDi at Nominal Output: <3% - (AC Output Data (On-Grid))
Switch Over Time (Grid Down): <8 ms - (AC Output Data (On-Grid))
Maximum Output Apparent Power: 6000 VA - (AC Output Data (Back-Up))
Instantaneous Power (10 ms): 12000 VA - (AC Output Data (Back-Up))
Surge Power (5 s): 9000 VA - (AC Output Data (Back-Up))
Maximum Output Active Power: 6000 W - (AC Output Data (Back-Up))
Nominal Output Voltage: 220 VAC/240 VAC L1-L2, 110 VAC/120 VAC L-N - (AC Output Data (Back-Up))
Nominal Output Frequency - Auto Sensing: 50/60 (+/-0.1 Hz) - (AC Output Data (Back-Up))
Output THDv at Linear Load: <3% - (AC Output Data (Back-Up))
Output THDv at PF 0.8 Non-Linear Load: <5% - (AC Output Data (Back-Up))
Parallel Function: Yes - (AC Output Data (Back-Up))
Parallel Units: 9 - (AC Output Data (Back-Up))
Automatic Generator Start (AGS): Included - (AC Output Data (Back-Up))
Maximum Solar to Utility Efficiency: 96.5%
Maximum Battery to Load Efficiency: 91%
Anti-Islanding Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
AFCI (Arc-Fault): Integrated
Ground Fault Monitoring: Integrated
Insulation Resistor Detection: Integrated
Residual Current Monitoring Unit: Integrated
Output Over Current Protection: Integrated - 90 A Per Phase
Output Short Protection: Integrated
Rapid Shutdown Relay: Integrated - AP Smart Devices
Operating Temperature: -13 to 140 deg F
Transformerless: Yes
Consumption Modes: UPS, Self-Consumption, TOU, Off-Grid Backup, Grid-Tied without Batteries
Relative Humidity: 0-90%
Operating Altitude: 4000 m
Cooling: External Force Convection
Noise Rating: <50 dB
User Interface: LCD/Phone Application (iOS & Android)
Communication with BMS: CANBUS
Communications Between Inverters: CANBUS
Communication with Cloud - API with Grid Services: Via EnergyTrak™ Gateway
Communication Port: RS-232
Intelligent Slot: RS232/USB, BMS, Wi-Fi
Enclosure Rating: IP65
Protective Class: 1
Standards: Grid Regulation - UL 1741SA/TR-2020, IEEE1547.1-2020, Safety Regulation: 6-1, 6-4 IEC/EN 62109-1&2, EMC: EN 61000-6-2, EN 61000-6-3
Warranty: 10 Years Limited
Weight: 86 lb
