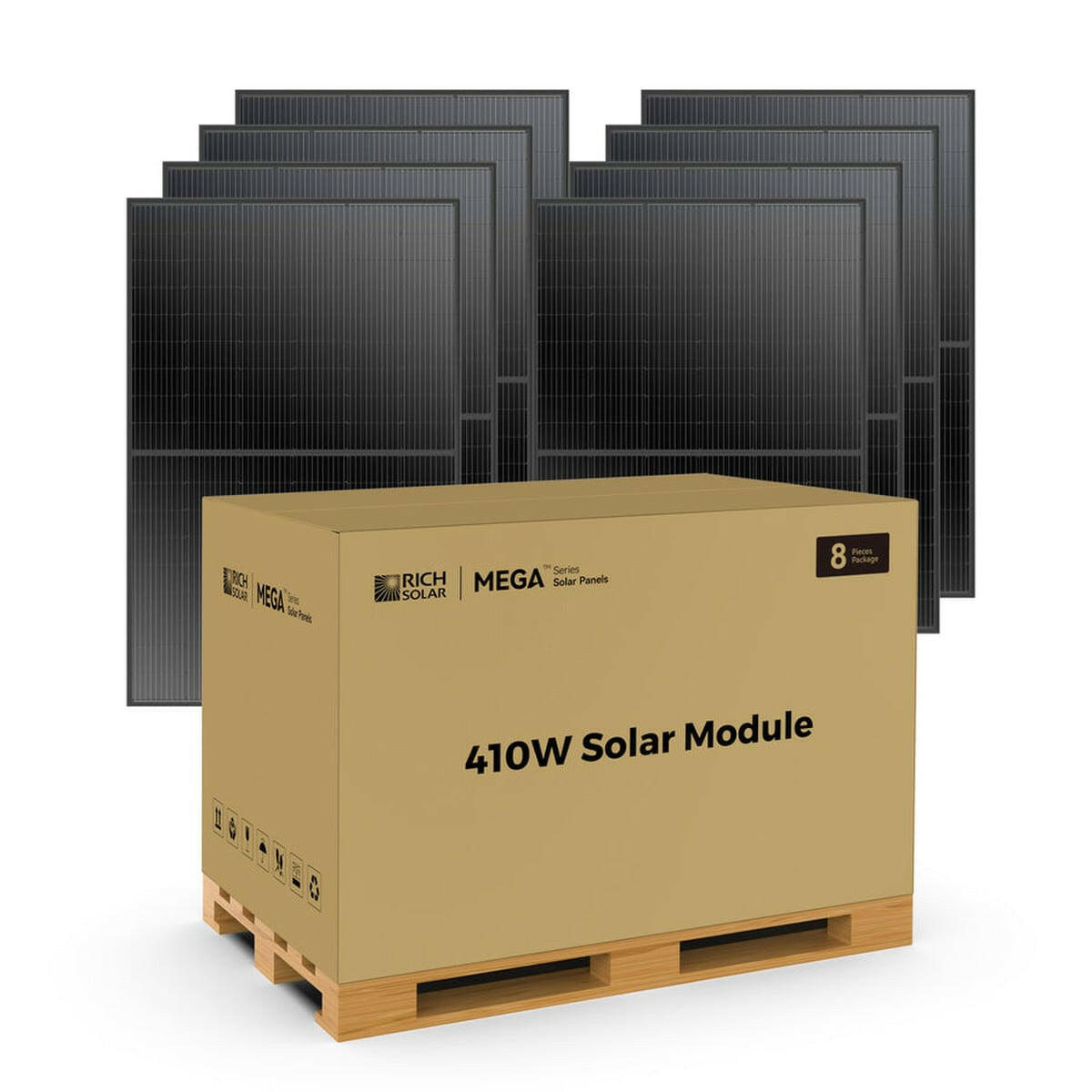

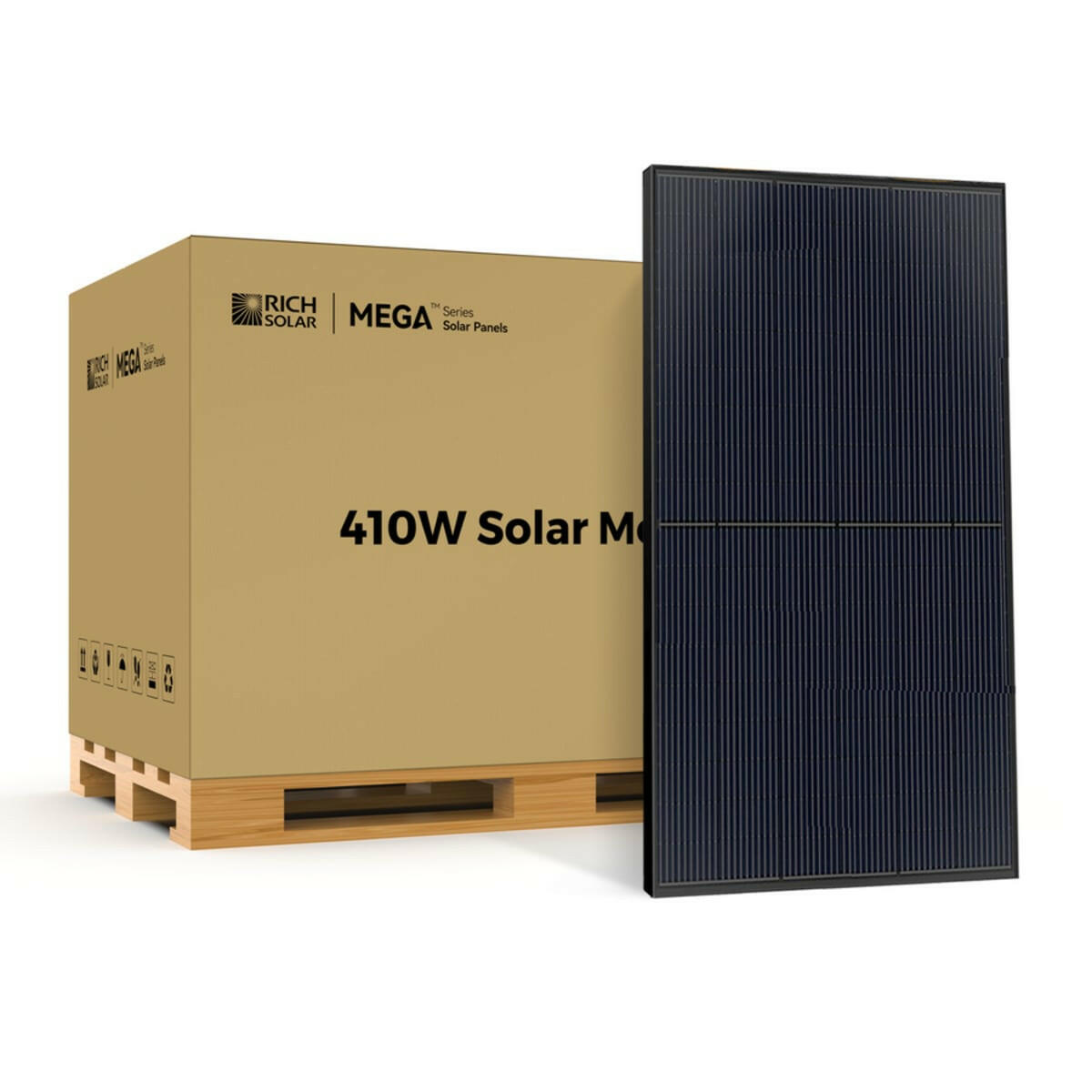

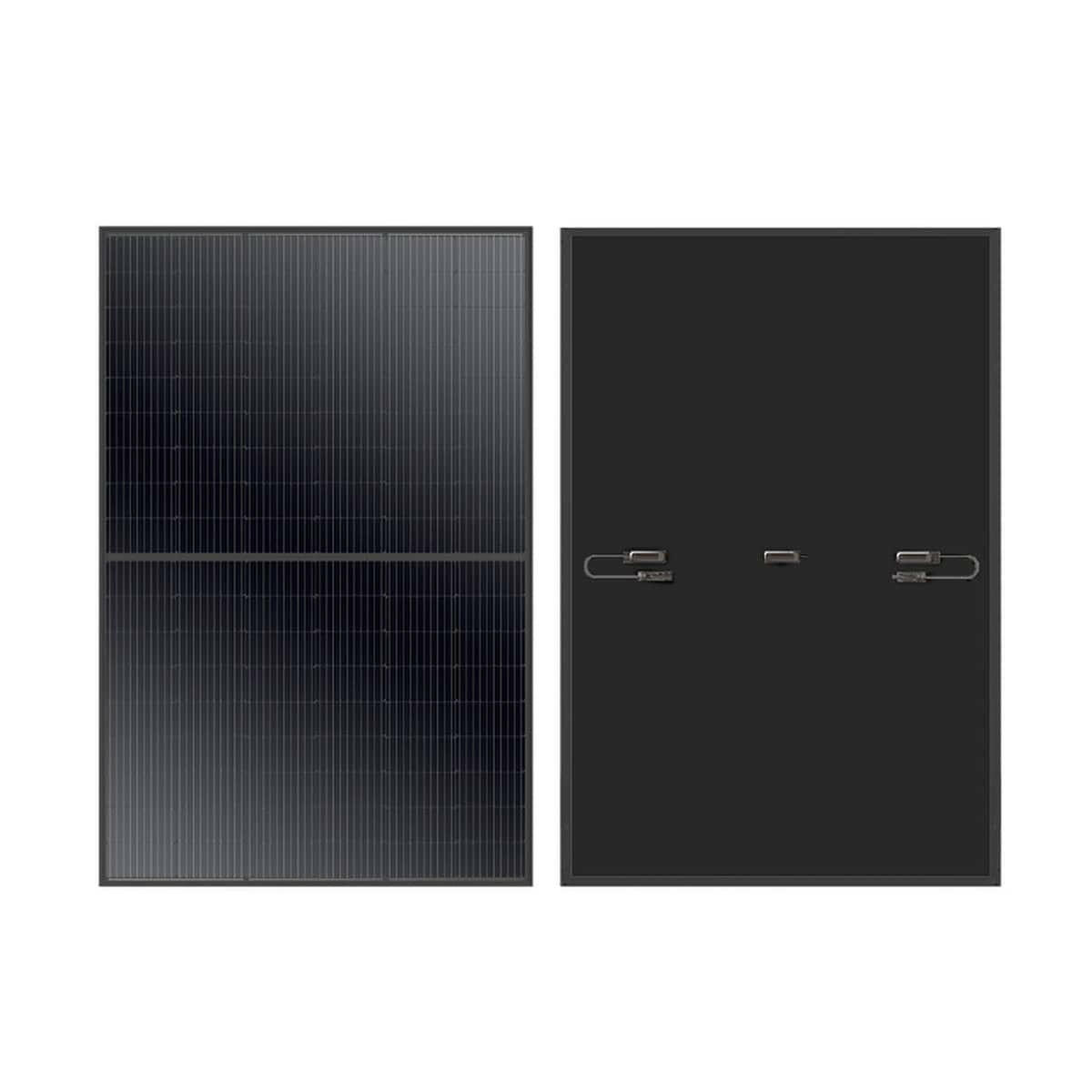

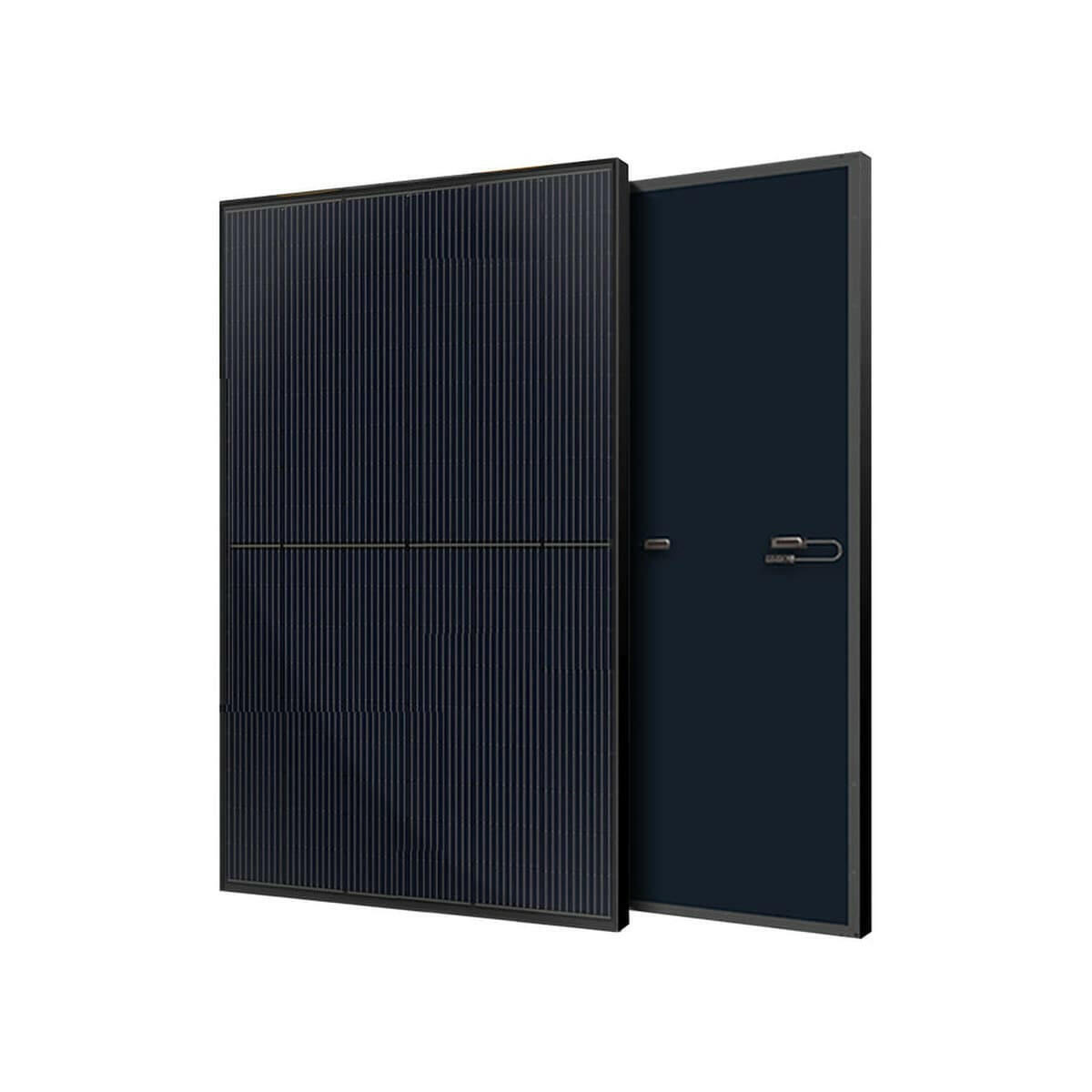

Rich Solar MEGA 410 Watt Monocrystalline Solar Panel | High Efficiency | Black Mono-facial Module | Grid-Tie | Off-Grid

With the Renogy 320W Solar Panel Pack, you can transform your structure into an energy-producing hub with just a few easy steps. This incredible solar panel set features 8 power-packed, high-efficiency solar modules that are small and light, while delivering impressive outputs of up to 320W. With the new PERC technology, featuring smoother module output performance, it allows you to optimize your roof space and install fewer modules per installation. Thanks to the cell's impressive 21% efficiency rate, you will benefit from significantly reduced electricity bills and higher electricity production. Installing this solar panel is a hassle-free process that is able to withstand extreme weather conditions, making it a reliable and durable option. With the RENOGY 320W Solar Panel Pack, you'll be able to produce clean and affordable energy without a hitch.

Features

• 10 Buss bar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings
• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters
• Excellent Cells Efficiency: MBB technology reduce the distance between busbars and finper prid line which is benefit to power increase
• Better Weak Illumination Response: More power output in weak light condition, such as haze, cloudy, and early morning
• Anti PID: Ensured PID resistance through the quality control of cell manufacturing process and raw materials
• Adapt to Harsh Outdoor Environment: Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity environment
• Tier 1: Global, Tier l bankable brand, with independently certi- fied advanced automated manufacturing
• Excellent Quality Management System: Warranted reliability and stringent quality assurances well beyond certified requirements
• Improved Aesthetic: Compared to conventional modules, this full black modules have a more uniform appearance and superior aesthetics


Specifications

• Type: High Efficiency Half-Cell
• Series/Model: Mega™
• Dimensions: 67.9 in (L) x 44.6 in (W) x 1.2 in (H)
• Cells Technology: Monocrystalline (Mono) PERC
• Number of Half Cells: 108 (6 x 18)
• Maximum Power (Pmax): 410 W (STC) / 306.3 W (NOCT)
• Maximum Power Voltage (Vmp): 31.3 V (STC) / 29.1 V (NOCT)
• Maximum Power Current (Imp): 13.1 A (STC) / 10.53 A (NOCT)
• Open-Circuit Voltage (VOC): 37.5 V (STC) / 35 V (NOCT)
• Short-Circuit Current (Isc): 13.84 A (STC) / 11.18 A (NOCT)
• Maximum System Voltage: 1500 VDC
• Maximum Series Fuse Rating: 25 A
• Module Efficiency: 20.97%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm, High Transmission, Anti-Reflection Coated Tempered Glass
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² (STC) / 800 W/m² (NOCT)
• Output Cables: 4 mm², 350 mm (With Connectors)
• Connector Type: MC4 Compatible
• Front Side Maximum Static Loading: Up to 5400 Pa
• Rear Side Maximum Static Loading: Up to 2400 Pa
• Operating Temperature: -40 to 85 °C
• Cell Temperature: 25 °C (STC)
• Ambient Temperature: 20 °C (NOCT)
• Temperature Coefficients of Pmax: -0.35%/°C (STC)
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/°C (STC)
• Temperature Coefficients of Isc: 0.05%/°C (STC)
• Nominal Operating Cell Temperature: 44 °C ±2%/°C
• Air Mass (AM): 1.5 (STC) / 1.5 (NOCT)
• Junction Box: IP68 Rated, 3 Diodes
• Includes:
  • Rich Solar 410 W Monocrystalline Solar Panel
  • Panel Leads (Pair): 2 ft Each
  • IP65 Rated Waterproof Junction Box
  • IP67 Rated Waterproof Solar Connectors
  • Bypass Diodes Built-In the Junction Box
• Standards:
  • IEC61215, IEC61730, IEC61701, IEC62716, UL61730
  • ISO 9001: Quality Management System
  • ISO 14001: Environmental Management System
  • ISO 45001: Occupational Health & Safety Management System
  • TUV, ETL, PV Cycle, MCS, IEC, UL, CE
• Warranty: 25 Years Limited Power Output
• Weight: 45.2 lb


Documents

• Specification Sheet
• Certificate of Compliance
