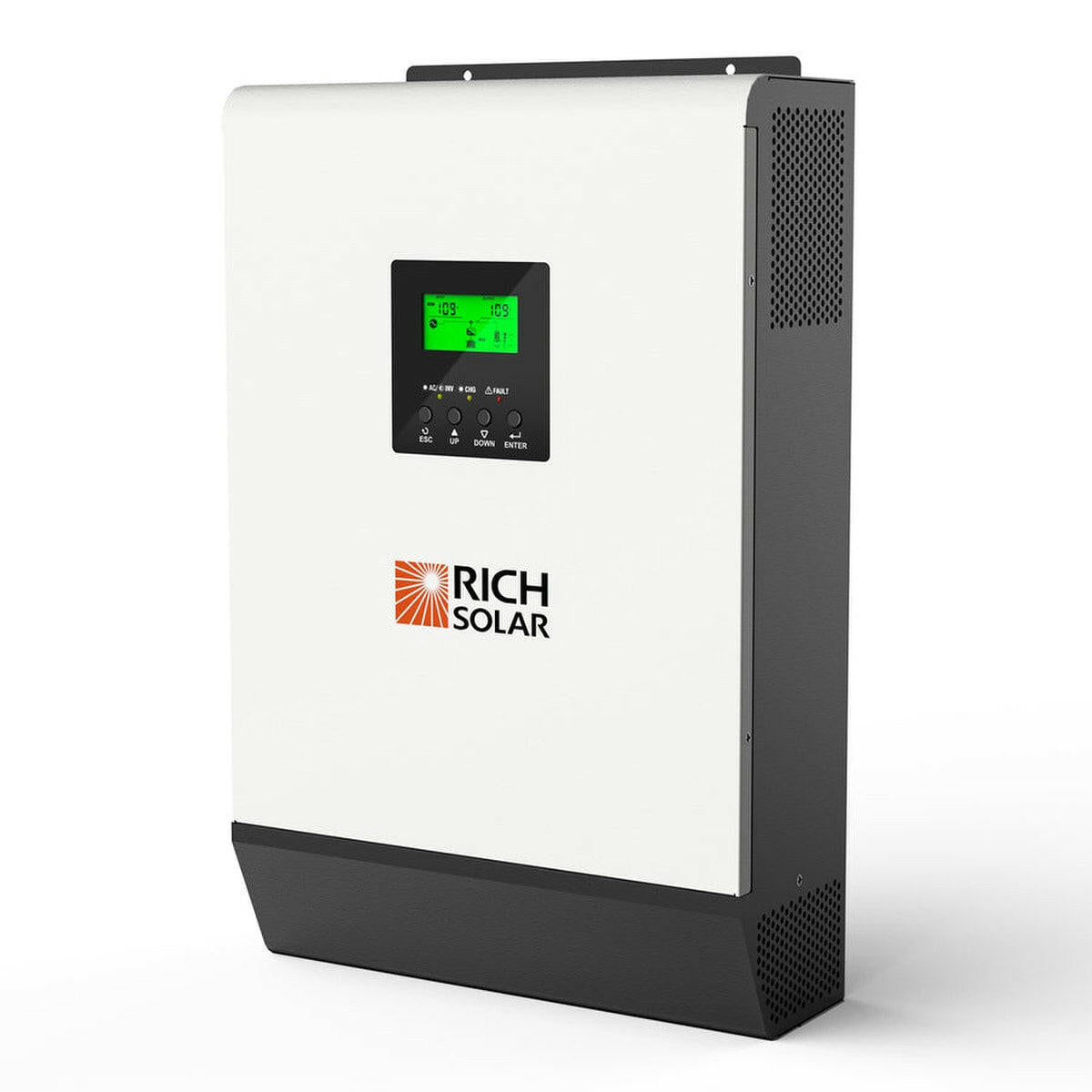

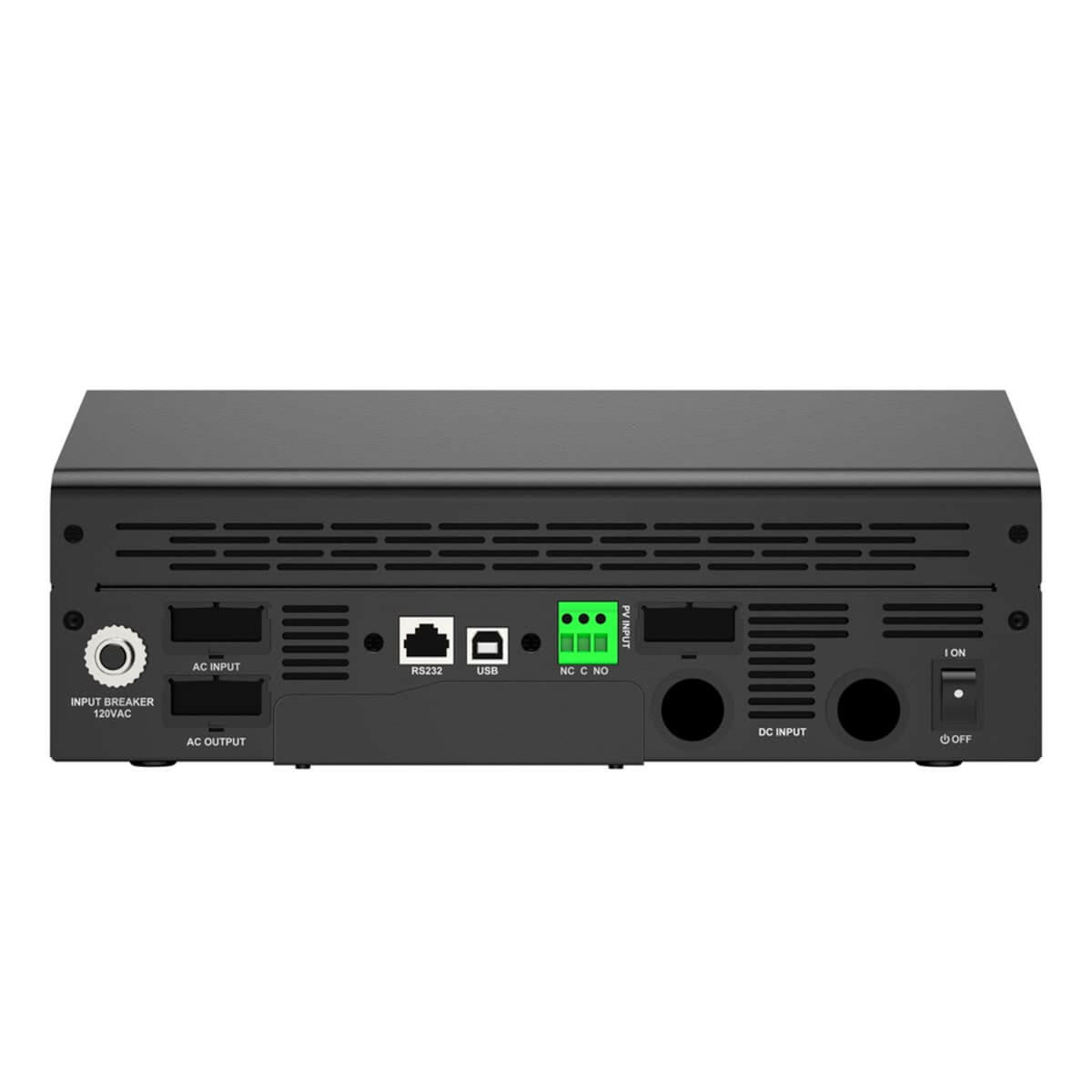

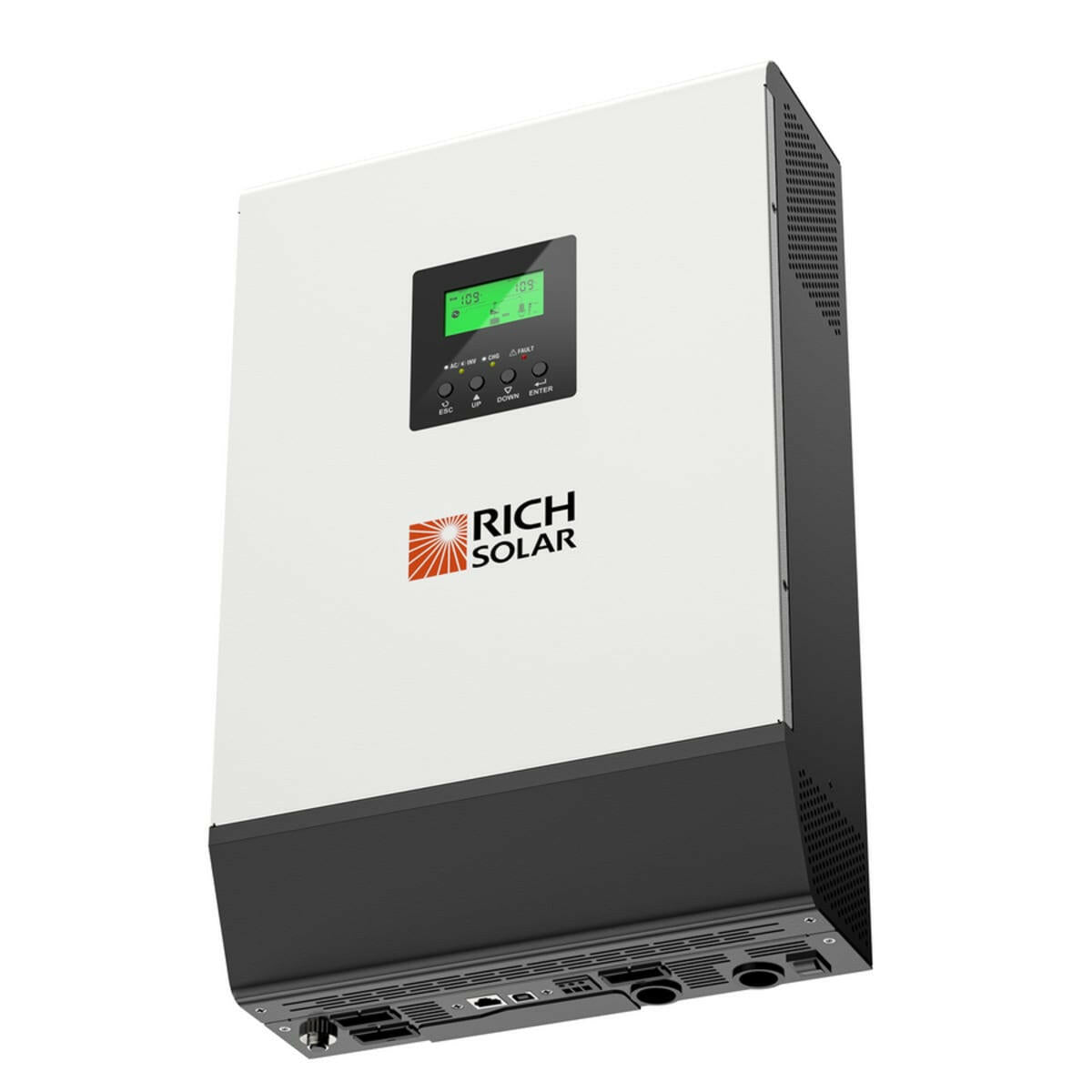

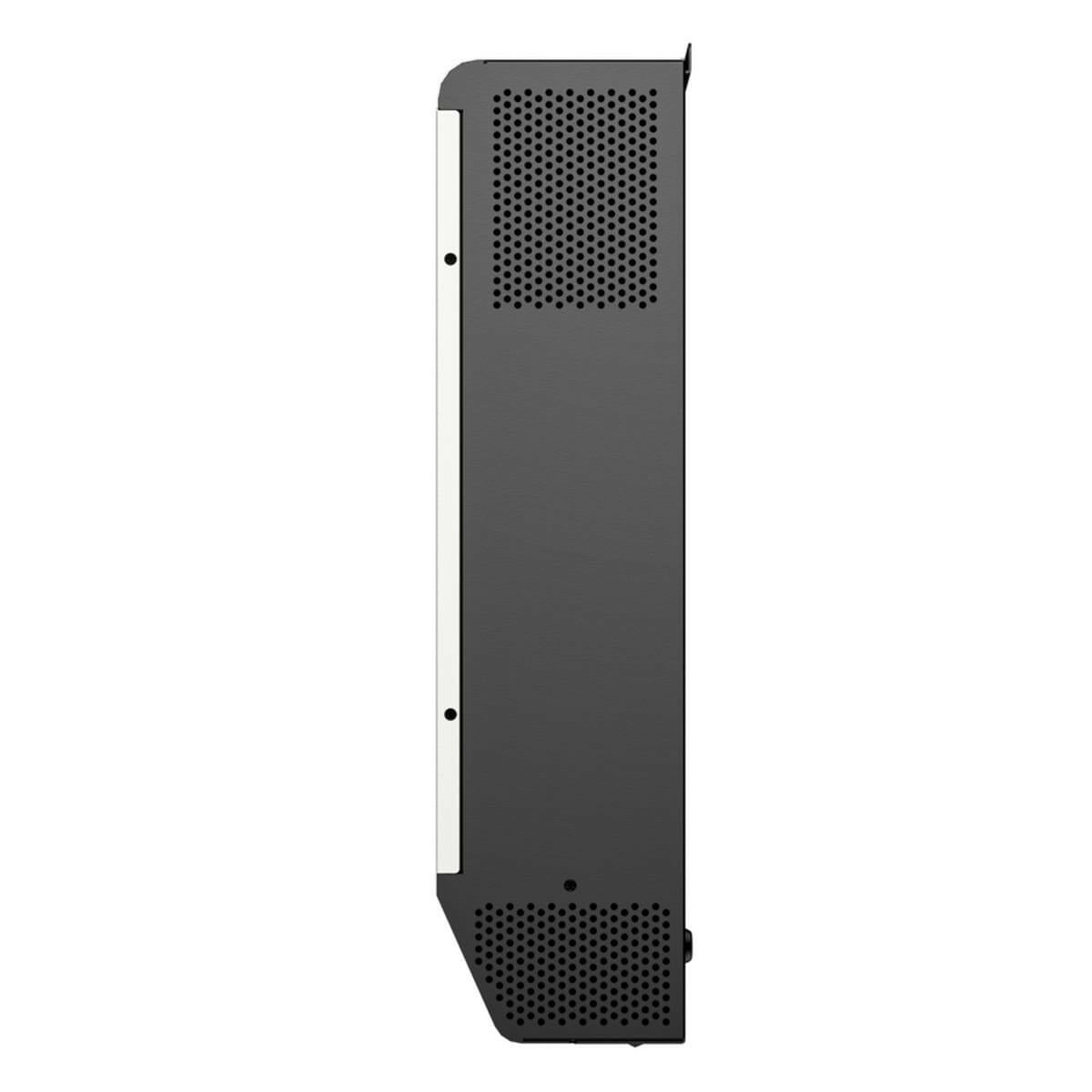

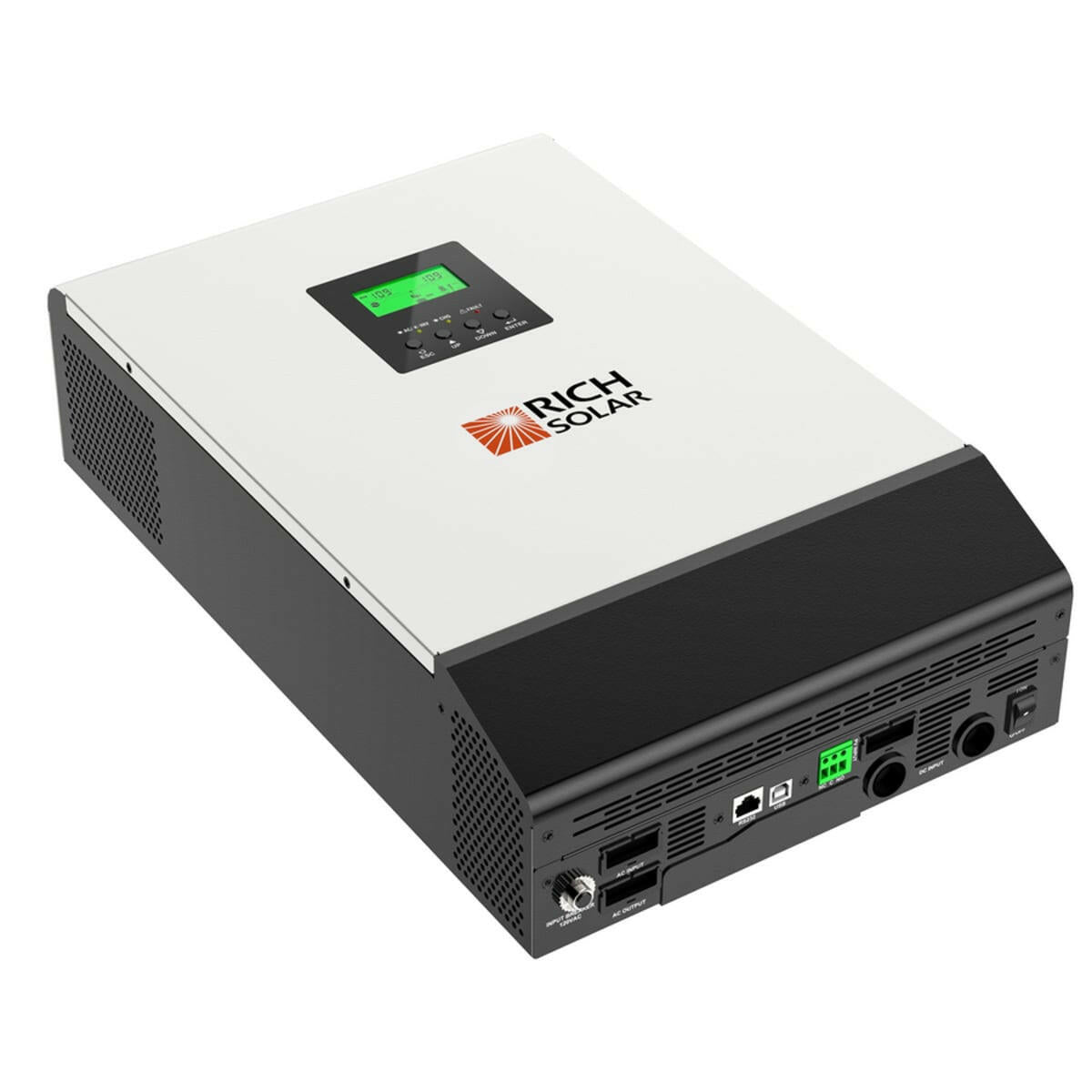

Rich Solar Hybrid Off-Grid Inverter | 2400W 24V 120A Output + 2.4kW Solar Input | 80A MPPT Charge Controller (Grid Feedback Optional)

Features

• Pure sine wave output
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
• Parallel-able up to 9 units

Specifications

• Grid Nominal Output Voltage: 101/110/120 VAC
• Grid Output Power Rating: 2400 W
• Grid Output Voltage Range:
  • 89-111 VAC at 101 VAC Output
  • 97-121 VAC at 110 VAC Output
  • 106-132 VAC at 120 VAC Output
• Grid Output Frequency Range: 47.5-51.5/57.5-61.5 Hz at 50/60 Hz
• Grid Nominal Output Current:
  • 29.7 A at 101 VAC
  • 27.2 A at 110 VAC
  • 25 A at 120 VAC
• Grid Power Factor: >0.99
• Maximum Conversion Efficiency (DC/AC): 85%
• Off-Grid AC Start-Up Voltage/Auto Restart Voltage: 60-70 VAC/90 VAC
• Off-Grid Acceptable Input Voltage Range: 65-140 VAC or 85-140 VAC
• Off-Grid Maximum AC Input Current: 40 A
• Battery Nominal Output Voltage: 101/110/120 VAC
• Battery Output Power Rating: 2400 W/3000 VA
• Battery Output Waveform: Pure Sine Wave
• Battery Efficiency (DC to AC): 90%
• Battery & Charger Nominal DC Voltage: 24 VDC
• Battery & Charger Maximum Charging Current (From Grid): 60 A
• Battery & Charger Maximum Charging Current (From PV): 80 A
• Battery & Charger Maximum Charging Current: 140 A
• Communication Method: USB or RS-232/Dry contact
• Humidity: 0-90% RH
• Operating Temperature: 0-50°C
• Dimensions: 468 mm (H) x 295 mm (W) x 120 mm (D)
• Standards: UL Listed, FCC, cCSAus Listed
• Weight: 11 kg
• Warranty: 2 Years
