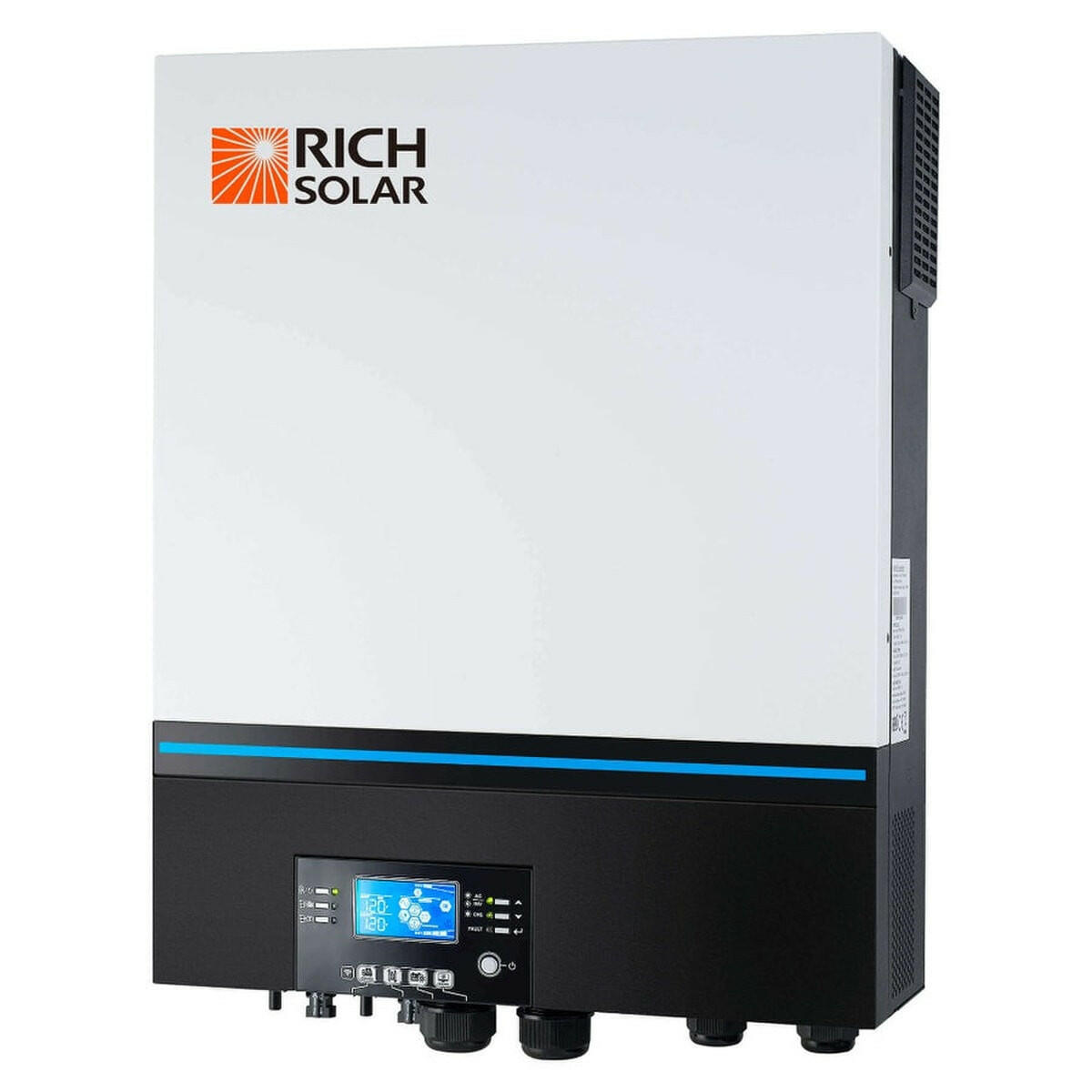

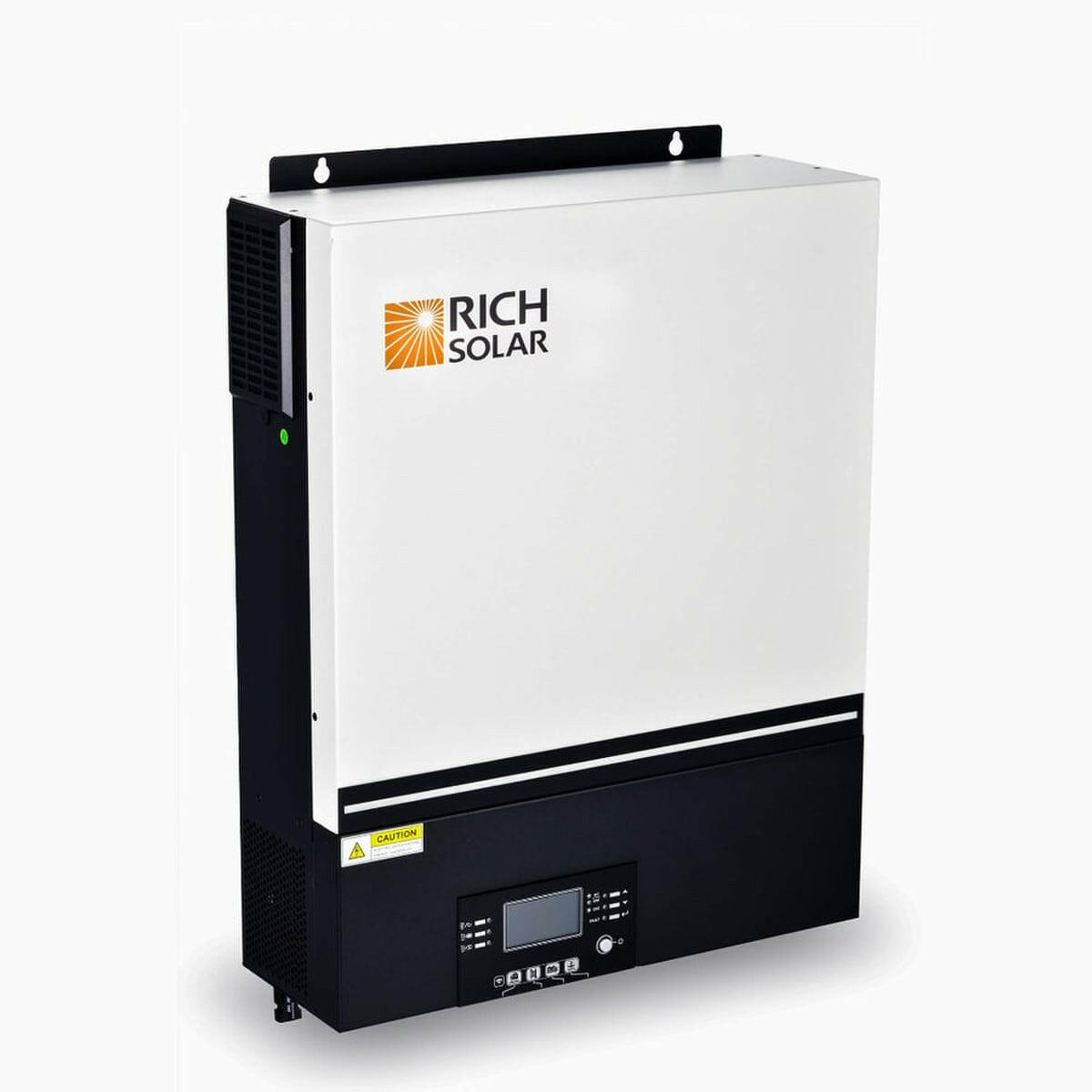

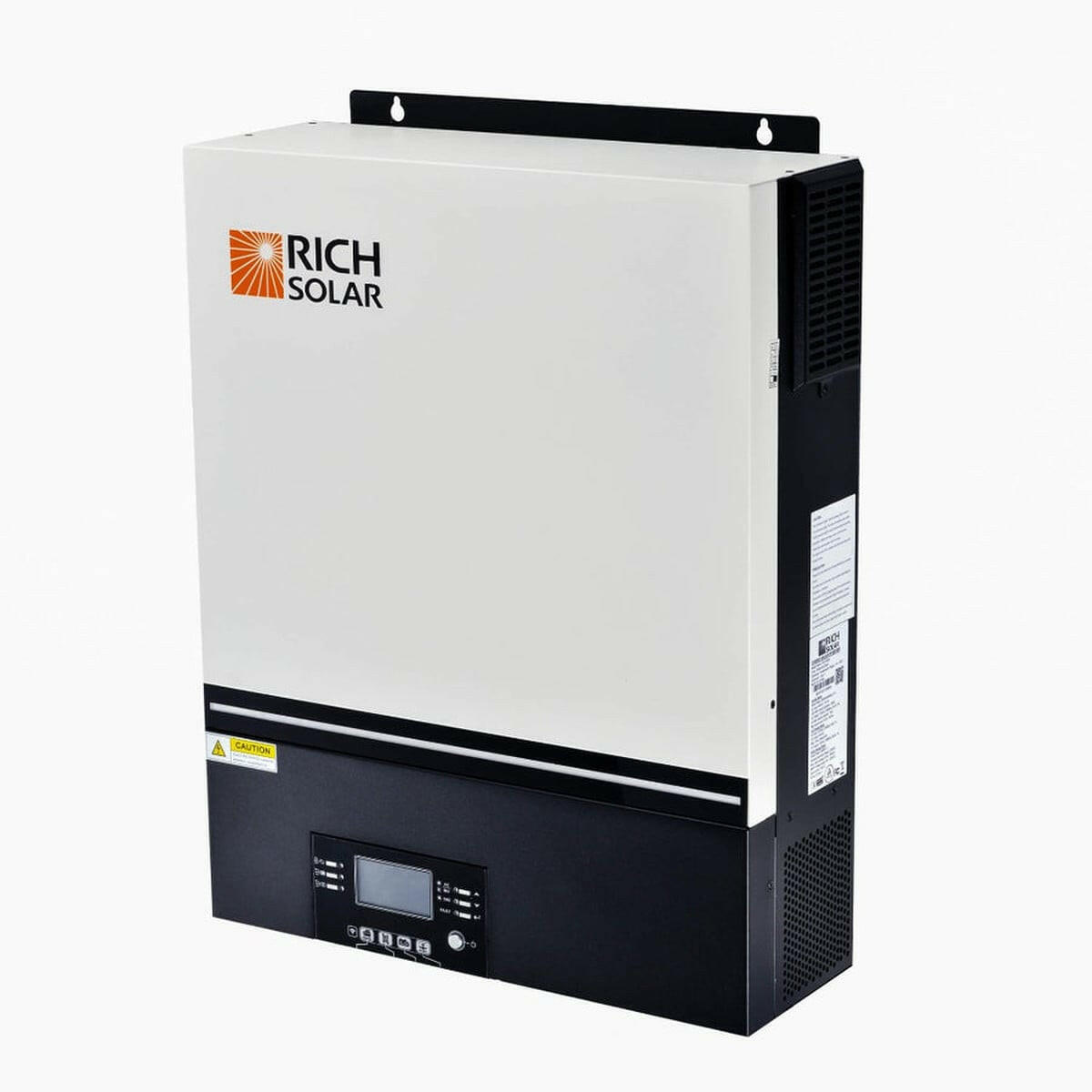

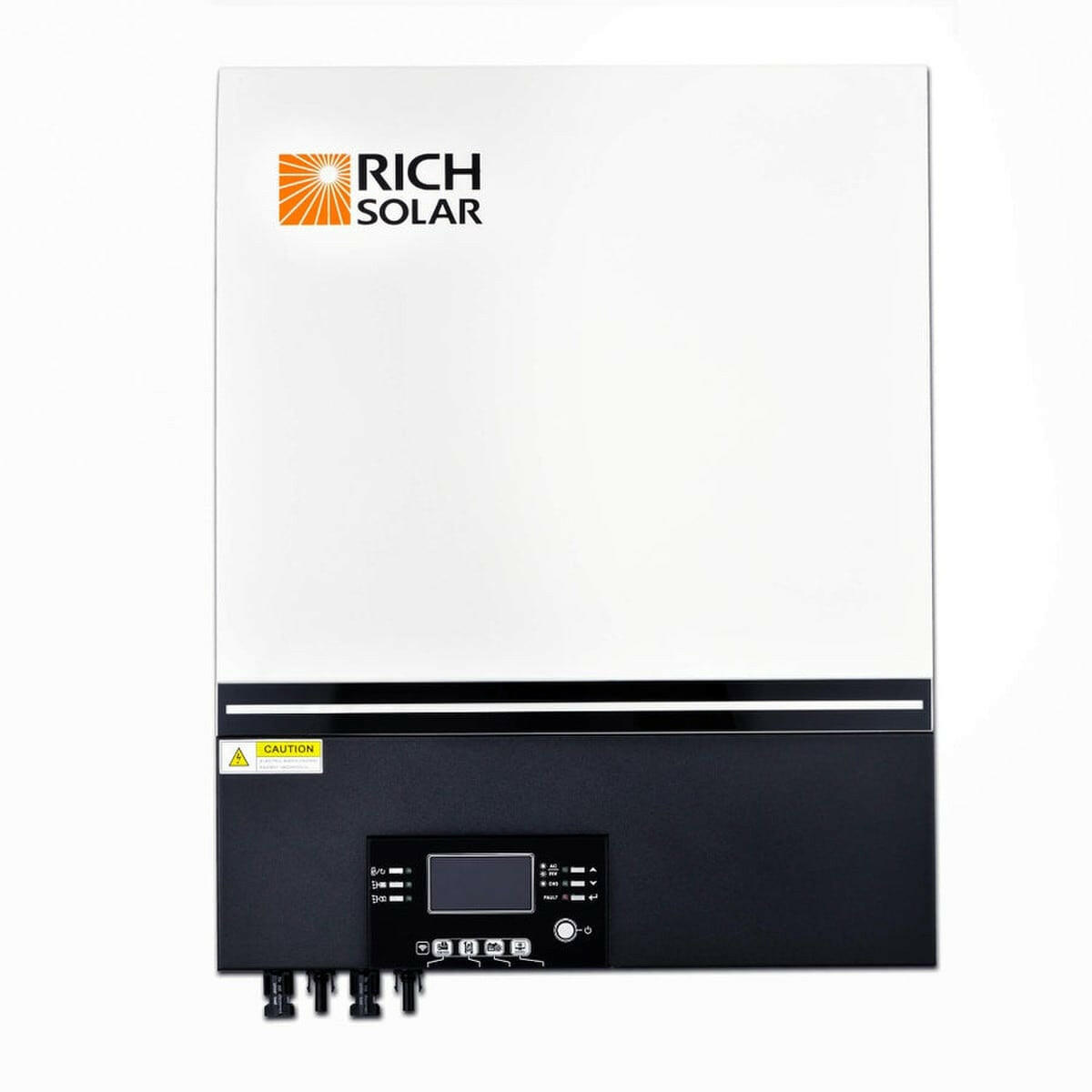

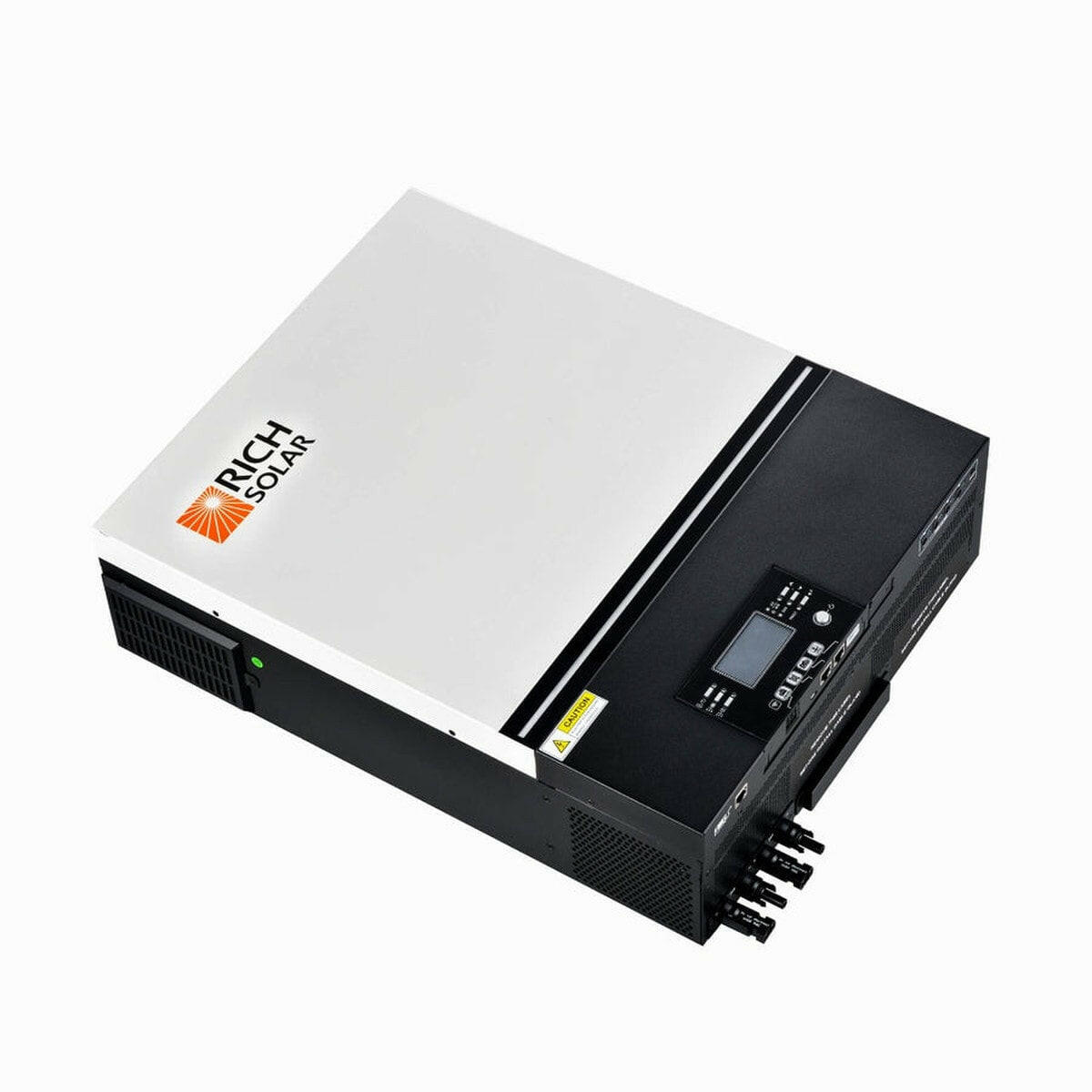

Rich Solar 6500 W Off-Grid Hybrid Solar Inverter

Features

• Pure sine wave inverter
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP is required)
• Supports USB On-the-Go function
• Built-in anti-dusk kit
• Detachable LCD control module with multiple communication ports for BMS(RS485,CAN-BUS, RS232)
• Configurable input voltage ranges for home appliances and personal computers via LCD control panel
• Configurable AC/PV output usage timer and prioritization
• Configurable AC/Solar charger priority via LCD control panel
• Configurable battery charging current based on applications via CD control panel
• Compatible to utility mains or generator power
• Auto restart while AC is recovering
• Overload/Over temperature/short circuit protection
• Parallel operation with 6 units
• Smart battery charger design for optimized battery performance
• Cold start function


Specifications

• Type: Inverter with Solar Charger
• Dimensions:
  • Width: 17 in
  • Height: 21.8 in
  • Depth: 5.8 in
• Input Voltage Waveform: Sinusoidal (Utility or Generator) - Line Mode, Pure Sine Wave - Solar Charger Input
• Nominal Input Voltage: 120 VAC
• Low Loss Voltage: 90 VAC ±7 V (UPS), 80 VAC ±7 V (Appliances) - Line Mode
• Low Loss Return Voltage: 100 VAC ±7 V (UPS), 90 VAC ±7 V (Appliances) - Line Mode
• High Loss Voltage: 140 VAC ±7 V - Line Mode
• High Loss Return Voltage: 135 VAC ±7 V - Line Mode
• Maximum AC Input Voltage: 150 VAC - Line Mode
• Maximum AC Input Current: 60 A - Line Mode
• Nominal Input Frequency: 50/60 Hz (Auto Detection) - Line Mode
• Low Loss Frequency: 42 ±1 Hz - Line Mode
• Low Loss Return Frequency: 42 ±1 Hz - Line Mode
• High Loss Frequency: 65 ±1 Hz - Line Mode
• High Loss Return Frequency: 63 ±1 Hz - Line Mode
• Output Short-Circuit Protection:
  • Line Mode: Circuit Breaker
  • Battery Mode: Electronic Circuits
• Efficiency:
  • 90% - Output
  • 96% Maximum MPPT Charging
  • 92% Maximum AC Charging Efficiency
• Transfer Time: 10 ms Typical (UPS), 20 ms Typical (For Appliances) - Line Mode
• Rated Output Power: 6500 W - Inverter Mode
• Output Voltage Waveform: Pure Sine Wave - Inverter Output Mode
• Output Voltage Regulation: 120 VAC ±5% - Inverter Output Mode
• Output Frequency: 50/60 Hz - Inverter Output Mode
• Peak Efficiency: 90-93% - Inverter Output Mode
• Overload Protection:
  • 100 ms at ≥205% Load
  • 5 s at 150% Load
  • 10 s at 110-150% Load - Inverter Output Mode
• Surge Capacity: 2 Rated Power for 5 Seconds - Inverter Output Mode
• Nominal DC Input Voltage: 48 VDC - Inverter Output Mode
• Cold Start Voltage: 46 VDC - Inverter Output Mode
• Low DC Warning Voltage:
  • 46 VDC at Load <20%
  • 42.8 VDC at 20% ≥50% - Inverter Output Mode
• Low DC Warning Return Voltage:
  • 48 VDC at Load <20%
  • 44.8 VDC at 20% ≥50% - Inverter Output Mode
• Low DC Cut-off Voltage:
  • 44 VDC at Load <20%
  • 40.8 VDC at 20% ≥50% - Inverter Output Mode
• Low DC Cut-off Voltage (Li Mode):
  • 44 VDC at Load <20%
  • 40.8 VDC at 20% ≥50% - Inverter Output Mode
• High DC Recovery Voltage: 62 VDC - Inverter Output Mode
• High DC Cut-Off Voltage: 63 VDC - Inverter Output Mode
• THDV: <5% for Linear Load, <10% for Non-Linear Load at Nominal Voltage
• DC Offset: Charging Current (UPS) at Nominal Input Voltage: 120 A - AC Outlet Charger Mode
• Battery Voltage: 48 VDC
• Flooded Battery: 58.4 VDC - AC Outlet Charger Mode
• AGM/Gel Battery: 56.4 VDC - AC Outlet Charger Mode
• Floating Charging Voltage: 54 VDC - AC Outlet Charger Mode
• Overcharge Protection: 66 VDC - AC Outlet Charger Mode
• Charging Algorithm: 3-Step - AC Outlet Charger Mode
• Maximum PV Array Power: 8000 W (4000 x 2) - Solar Charge Input
• Maximum PV Array Open-Circuit Voltage: 250 VDC - Solar Charge Input
• PV Array MPPT Voltage Range: 90-230 VDC - Solar Charge Input
• Start-Up Voltage: 80 V ±5 VDC
• Maximum Input Current: 36 A (18 A x 2) - Solar Charge Input
• Maximum Charging Current: 120 A - Solar Charge Input
• Maximum AC Charging Current: 120 A - Solar Charge Input
• Solar Charge Controller Type: MPPT
• Operating Temperature: -10 to 40°C
• Storage Temperature: -15 to 60°C
• Humidity: 5-95% Relative Humidity (Non-Condensing)
• Maximum Parallel Units: 6
• Circulation Current Under No Load Condition: Maximum 2A - Parallel Mode
• Power Unbalance Ratio: <5% at 100% Load - Parallel Mode
• Parallel Communication: CAN - Parallel Mode
• Transfer Time in Parallel Mode: Max 50 ms
• Parallel Kit: Yes
• Standards:
  • TUV
  • ETL Listed
  • PV Cycle
  • MCS
  • IEC
  • UL 1741 by TUV
• Warranty: 2 Years
• Weight: 18.4 lb
