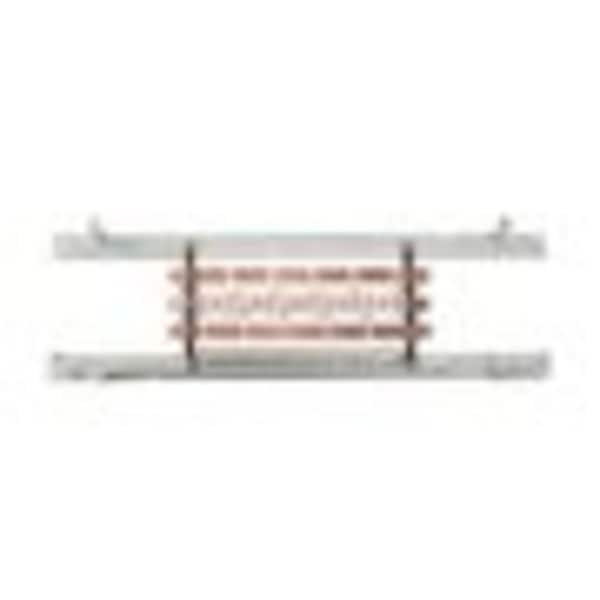

PRL2X3225X42C - Eaton PRL2X Interior 480/277 3P 4W 225A 42 CKT Cu Bus

The Eaton PRL2X Interior Panelboard is engineered for demanding power distribution needs in commercial and industrial environments. Designed for 480/277V systems, this 3-phase, 4-wire interior supports up to 225 Amps and accommodates up to 42 circuits, ensuring flexibility and reliability in high-voltage applications.

Built with a durable copper bus, the PRL2X interior provides superior electrical conductivity and heat resistance—making it ideal for long-term, high-performance use.

Key Features:

• Voltage Rating: 480/277V, 3-phase, 4-wire
• Amperage Capacity: Up to 225A
• Circuit Capacity: Supports up to 42 circuits
• Bus Material: High-performance copper bus
• Designed for use in Eaton PRL2X panelboards
• Ideal for commercial and industrial electrical systems

Trust Eaton’s PRL2X Interior for a powerful and dependable panelboard solution that meets modern electrical distribution standards.

Documents:

Brochures

Pow-R-Xpress quick selector reference guide

Eaton's Pow-R-Xpress stocking program

Pow-R-Xpress stocking program flyer

Multimedia

Pow-R-Line Xpert family overview

Specifications and datasheets

Eaton Specification Sheet - PRL2X3225X42C
