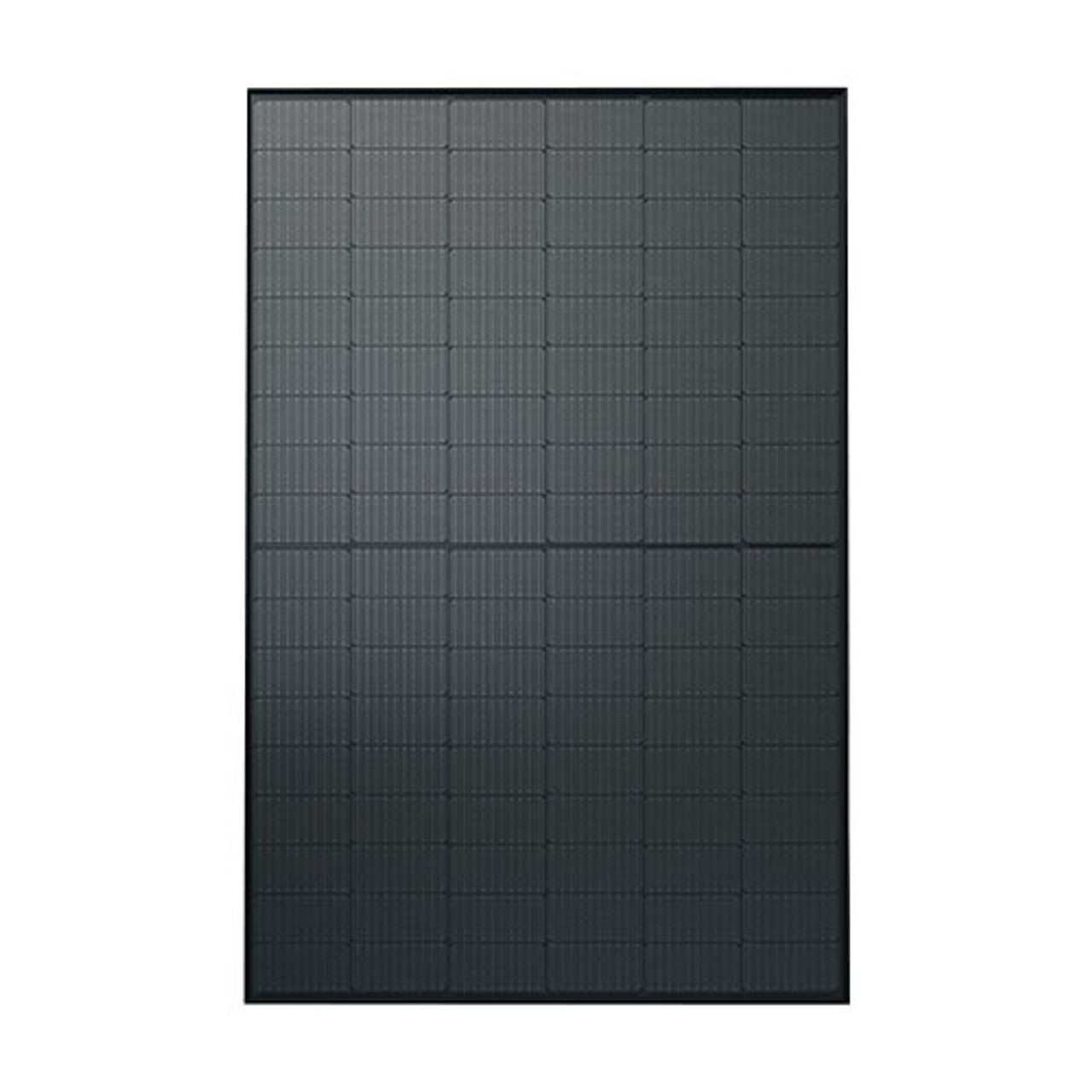

Phono Solar 440W 108 Cells N-Type TOPCon Bifacial Solar Panel

The Phono Solar 440W N-Type TOPCon Bifacial Solar Panel delivers exceptional efficiency, durability, and reliability for residential, commercial, and utility-scale solar applications. Using N-Type TOPCon (Tunnel Oxide Passivated Contact) cell technology, it offers higher energy yield, lower degradation rates, and improved performance in low-light conditions compared to conventional PERC panels.

This bifacial module captures sunlight from both the front and rear sides, increasing total energy generation and maximizing return on investment.

Key Features

• Model: PS440M8GFH-18

• Power Output: 440W

• Cell Type: 108 N-Type TOPCon Monocrystalline Half-Cut Cells

• Bifacial Gain: Up to 30% additional energy from rear-side reflection

• Module Efficiency: Up to 22.0%

• Front Glass: 2.0 mm tempered glass, high transmittance

• Back Glass: 2.0 mm tempered glass for durability and bifacial performance

• Frame: Anodized aluminum alloy for strength and corrosion resistance

• Connector Type: MC4 compatible

• Maximum System Voltage: 1500V DC (IEC/UL)

• Operating Temperature: -40°C to +85°C

• Dimensions: 1722 × 1134 × 30 mm

• Weight: 22.5 kg

Performance Advantages

• Lower LID (Light Induced Degradation) and PID (Potential Induced Degradation)

• Excellent performance in low-light and high-temperature conditions

• 25-year linear power warranty and 15-year product warranty

• Designed to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa

Applications

• Residential and commercial rooftops

• Ground-mounted bifacial systems

• Solar tracking installations

Certifications

• IEC 61215 / IEC 61730 / UL 61730

• ISO 9001 / ISO 14001 / ISO 45001 Certified Manufacturing

Document: Specification Sheet
