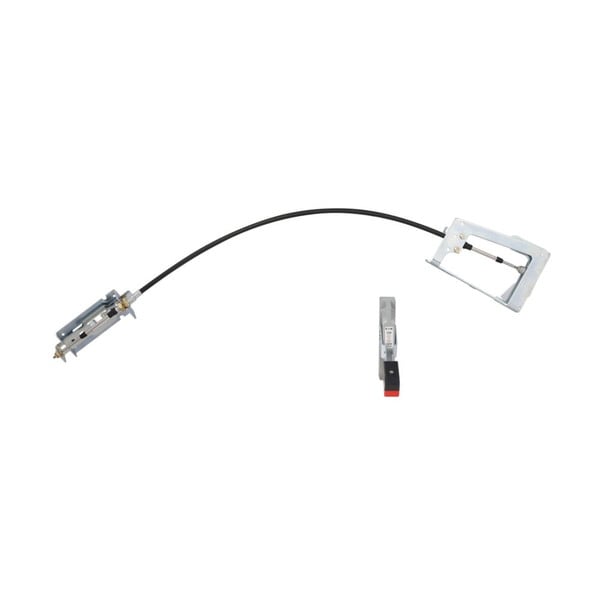

PDG3XFS04X - PD3 Flex Shaft (Metal Handle)

The PD3 Flex Shaft (Metal Handle, NEMA 4/4X, 4 FT Cable) is a specialized accessory designed to facilitate the remote operation of Eaton's PD3-frame molded case circuit breakers. This mechanism is particularly beneficial in applications where direct access to the breaker is challenging or hazardous, such as in high or enclosed installations.

The flex shaft features a durable metal handle and a 4-foot flexible cable, allowing for precise control and operation of the circuit breaker from a distance.Its NEMA 4/4X rating ensures protection against dust, water, and corrosive elements, making it suitable for both indoor and outdoor environments.

Key Features:

• Accessory Type: Flex Shaft Handle Mechanism
• Handle Type: Metal
• Cable Length: 4 feet
• Cable Type: Flexible shaft
• Enclosure Rating: NEMA 4/4X (dust and water-resistant, suitable for indoor and outdoor use)
• Compatibility: Designed for use with Eaton PD3-frame molded case circuit breakers
• Weight: Approximately 8 lbs

This flex shaft is an essential accessory for ensuring safe and efficient operation of electrical systems in environments where direct access to breakers is challenging, offering reliable performance and protection in a variety of conditions.

Documents:

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
Eaton Specification Sheet - PDG3XFS04X
