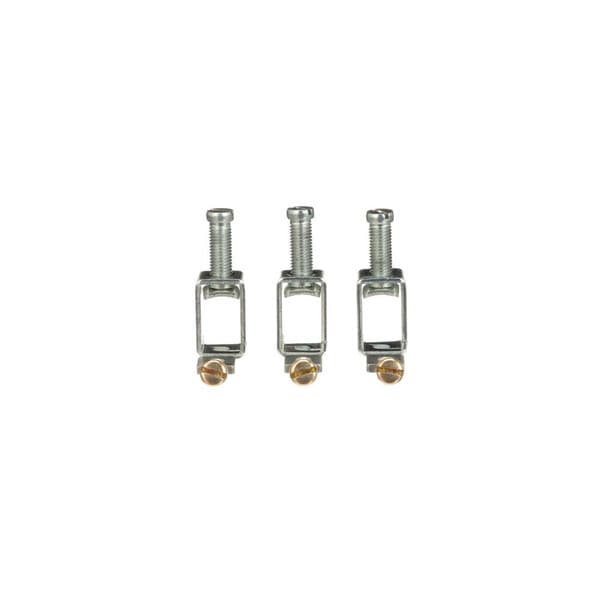

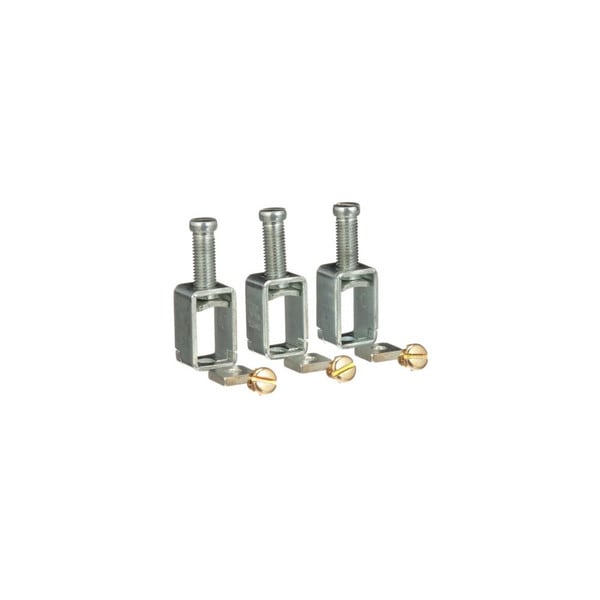

PDG2X3T100 - Eaton Power Defense Molded Case Circuit Breaker Accessory Terminal

The Eaton Power Defense Molded Case Circuit Breaker Accessory Terminal is a vital component designed to enhance the performance and safety of your electrical system. This terminal accessory is ideal for use with Eaton Power Defense Molded Case Circuit Breakers, specifically in applications where secure and reliable connections are essential. With a rating of 100A and designed for three-pole breakers, this terminal supports wire sizes from 14 AWG to 1/0 AWG, ensuring compatibility with a wide range of wiring configurations. It is suitable for Frame J-K, 600V Power Defense breakers, and is designed for efficient, safe installation in the electrical panel.

Key Features:

• Accessory Type: Circuit Breaker Terminal
• Amperage: 100A
• Poles: Three-pole
• Wire Range: 14 AWG to 1/0 AWG
• Frame Size: Frame J-K (for Power Defense breakers)
• Voltage Rating: 600V
• Compatibility: Designed for use with Eaton Power Defense Molded Case Circuit Breakers (PD2 Global)
• Terminal Type: Box Terminal, Frame 2

This accessory terminal ensures a safe, stable connection between the breaker and the wiring, helping to maintain the integrity and performance of the electrical system. It is an essential component for enhancing the reliability of Eaton Power Defense breakers, ensuring efficient operation and protection against electrical faults.

Documents:

Brochures
Power Defense molded case circuit breaker selection poster

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Installation instructions
Power Defense Frame 2 box terminal (steel), 100A, 3 pole instructions - IL012234EN H03

Specifications and datasheets
Eaton Specification Sheet - PDG2X3T100
