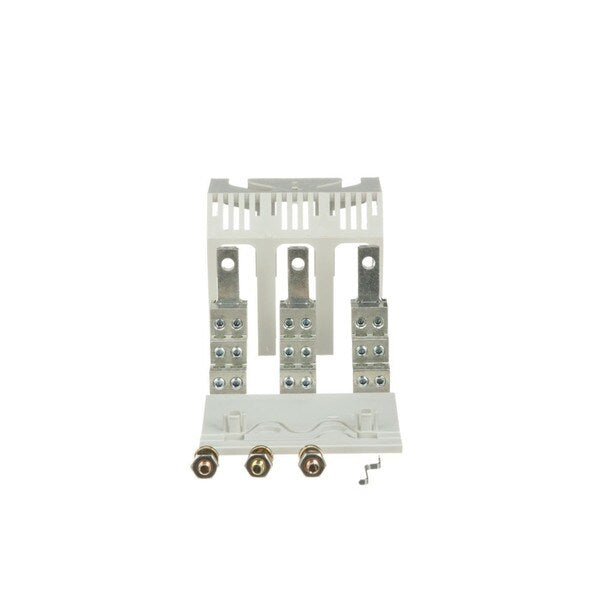

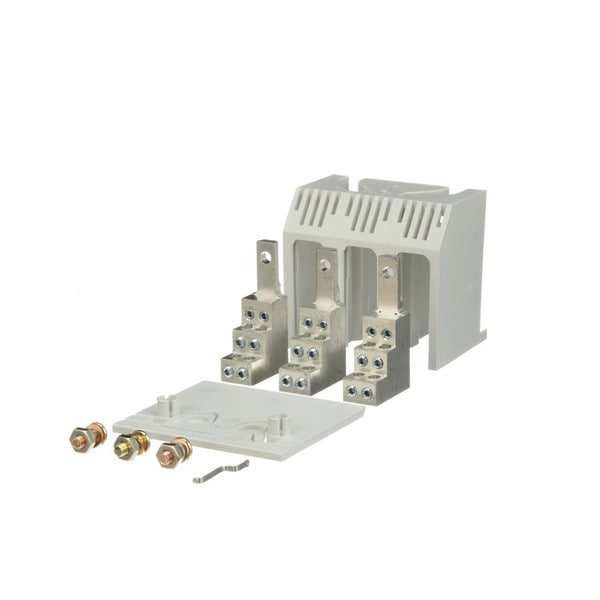

PDG1X3TA1256W - Eaton Molded Case Circuit Breaker Accessory Terminal

The Eaton Molded Case Circuit Breaker Accessory Terminal, PDG1 Multi-Wire Terminal (Al) is a high-performance accessory designed for use with Eaton’s molded case circuit breakers (MCCBs). This terminal allows for secure and efficient connection of multi-wire circuits, supporting aluminum conductors for reliable power distribution. Rated for 125A and suitable for wire sizes ranging from AWG 14-6, the PDG1 Multi-Wire Terminal is ideal for use in 3-pole circuit breaker configurations. Its durable construction ensures optimal performance and safety in industrial, commercial, and residential electrical systems.

Key Features:

• Product Type: Molded Case Circuit Breaker Accessory Terminal
• Model: PDG1 Multi-Wire Terminal (Al)
• Amperage Rating: 125 A
• Wire Size Range: AWG 14-6
• Number of Poles: 3 Poles
• Material: Aluminum (for efficient conductivity and corrosion resistance)
• Compatibility: Compatible with Eaton molded case circuit breakers (MCCBs)
• Multi-Wire Design: Supports multi-wire connections, enhancing flexibility and ease of installation
• Application: Ideal for commercial, industrial, and residential power distribution systems
• Durability: High-quality construction designed for long-term reliability in demanding environments
• Certifications: UL Listed, ensuring safety and industry compliance

The Eaton PDG1 Multi-Wire Terminal provides a secure, efficient, and flexible solution for wiring and connecting circuit breakers, ensuring safe and reliable electrical operation in a variety of applications.

Documents:

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Installation instructions
Power Defense Frame 1 UL global tunnel terminal (aluminum) 125A 3P - IL012166EN H03

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
Eaton Specification Sheet - PDG1X3TA1256W
