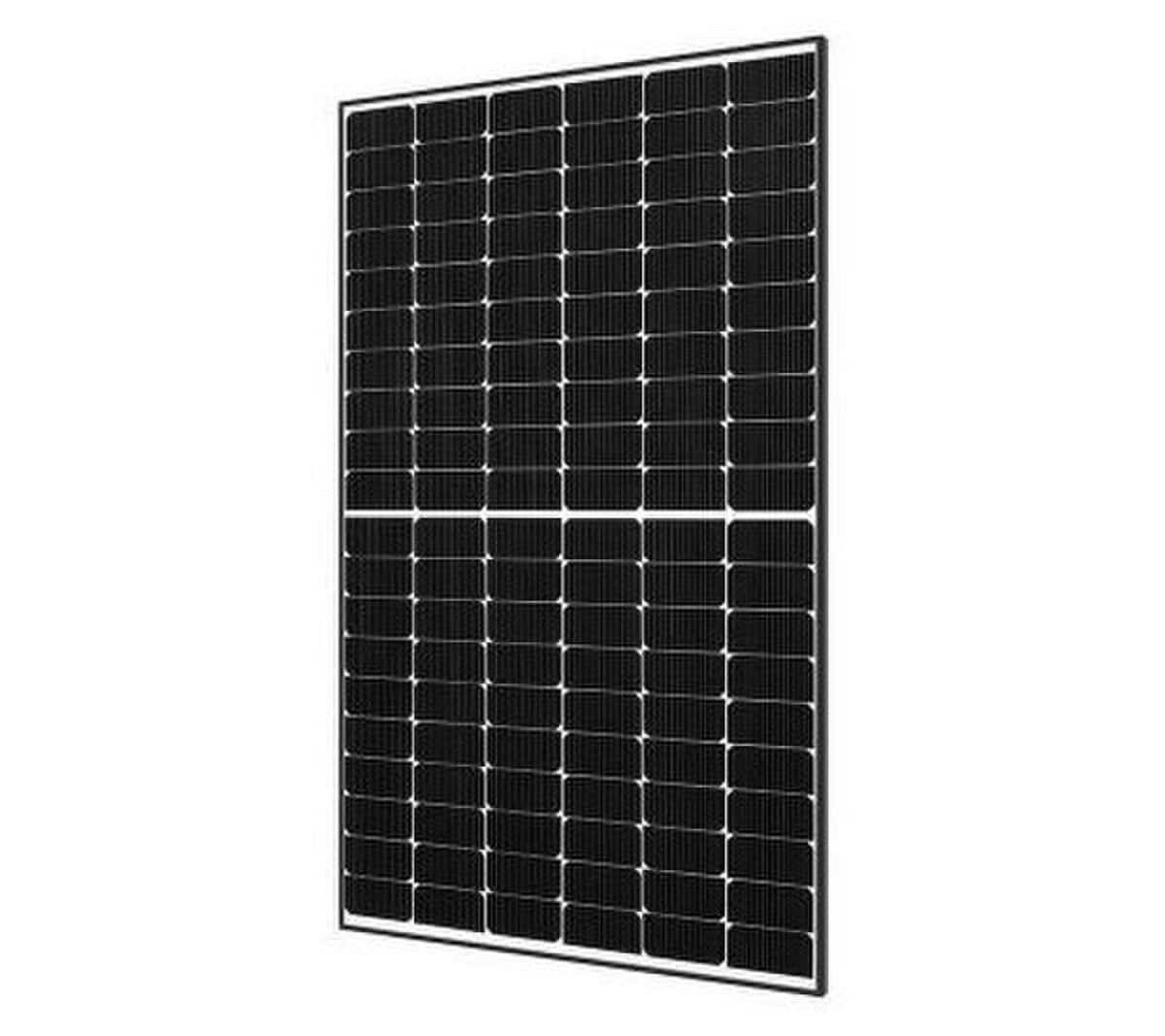

Panasonic EverVolt EVPV360 360w Mono Solar Panel

Panasonic EverVolt Series solar modules produce more power over the long haul fueled by industry-leading conversion efficiency and low degradation rate. Superior module efficiency of 21.2% (370W) and 20.6% (360W) and greater high-temperature performance deliver a high-output renewable energy source for residential solar systems.

Features

• Higher Module Efficiency - Superior module efficiency of 21.2% and 20.6%, respectively, allows maximum power production with less roof space. With one of the industry's lowest annual degradation rates, power output of at least 92% is guaranteed after 25 years
• AllGuard and TripleGuard 25-Year Warranty - A long-term warranty is only as reliable as the company behind it. AllGuard and TripleGuard 25-year warranties cover EverVolt panels for performance, product, parts and labor for 25 years. Whether in year three or year 25, your Panasonic warranty will be there when you need it
• High Efficiency in High Temperatures - Produce more energy throughout the day even on the hottest days in the warmest climates. EverVolt solar panels outperform others when temperatures rise due to our industry-leading 0.26%/°C temperature coefficient
• Heterojunction Cell Technology - Half-cut cells with heterojunction technology minimizes electron loss, maximizes conversion efficiency, and produces considerably higher power output over conventional panels
• Durability & Quality Assurance - N-type cells result in minimal Low Induced degradation (LID) and Potential Induced degradation (PID), which supports reliability and longevity. As a solar pioneer for over 40 years, Panasonic EverVolt solar panels are backed by innovation, experience and a brand you can trust
• Improved Performance When Shaded - Continuous power production in shaded areas for greater energy yields and output. More sunlight absorption means more clean power to your home


Specifications

• Series/Model: EVERVOLT
• Length: 67.8 in
• Width: 40 in
• Height: 1.2 in
• Frame Depth: 30 mm
• Cells Technology: Monocrystalline (Mono) Heterojunction Half-Cut
• Maximum Power (Pmax): 360 W STC/342.1 W PTC
• Maximum Power Voltage (Vmp): 36.7 V STC
• Maximum Power Current (Imp): 9.82 A STC
• Open-Circuit Voltage (VOC): 43.9 V STC
• Short-Circuit Current (Isc): 10.49 A STC
• Maximum System Voltage: 1000 V
• Maximum Series Fuse Rating: 25 A
• Module Efficiency: 20.6%
• Frame Color: Black
• Backsheet Color: Clear
• Irradiance: 1000W/m2 STC
• Output Cables: 4 mm2 solar cable, 1.0 m + 1.2 m in accordance with UL 4703
• Connector Type: Staubli MC4 PV-KBT4/KST4 (4 mm2) in accordance with UL 6703 IP68
• Fire Type: Type 2 (UL 61730)
• Pressure Rating: 7000 Pa Snow, 4000 Pa Wind
• Operating Temperature: -40 to 185 deg F
• Cell Temperature: 25 deg C STC
• Temperature Coefficients of Pmax: -0.26%/deg C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.24%/deg C
• Temperature Coefficients of Isc: 0.04%/deg C
• Nominal Operating Cell Temperature: 44+/-2 deg C
• Air Mass (AM): 1.5 STC
• Junction Box: 3-Part, 3 Bypass Diodes, IP67 Rated in accordance with UL 3730
• Power Output Tolerance: -0/+10 W
• Standards: UL, ISO, IEC, UL 61730, IEC61215-2:2016 (Hailstone 35mm), DVE, ETL
• Warranty: 15 Years Product, 25 Years Power Output
• Weight: 43 lb


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
