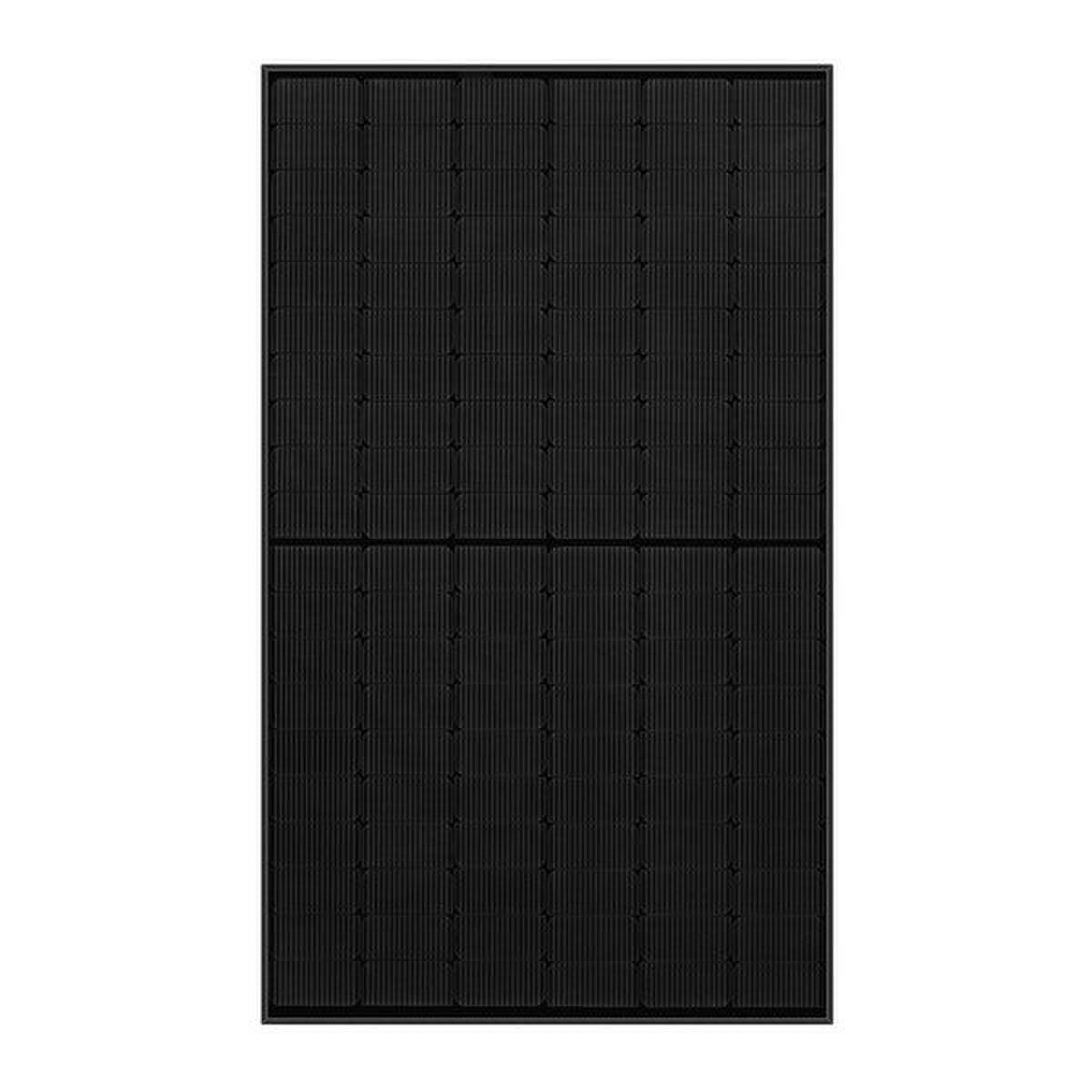

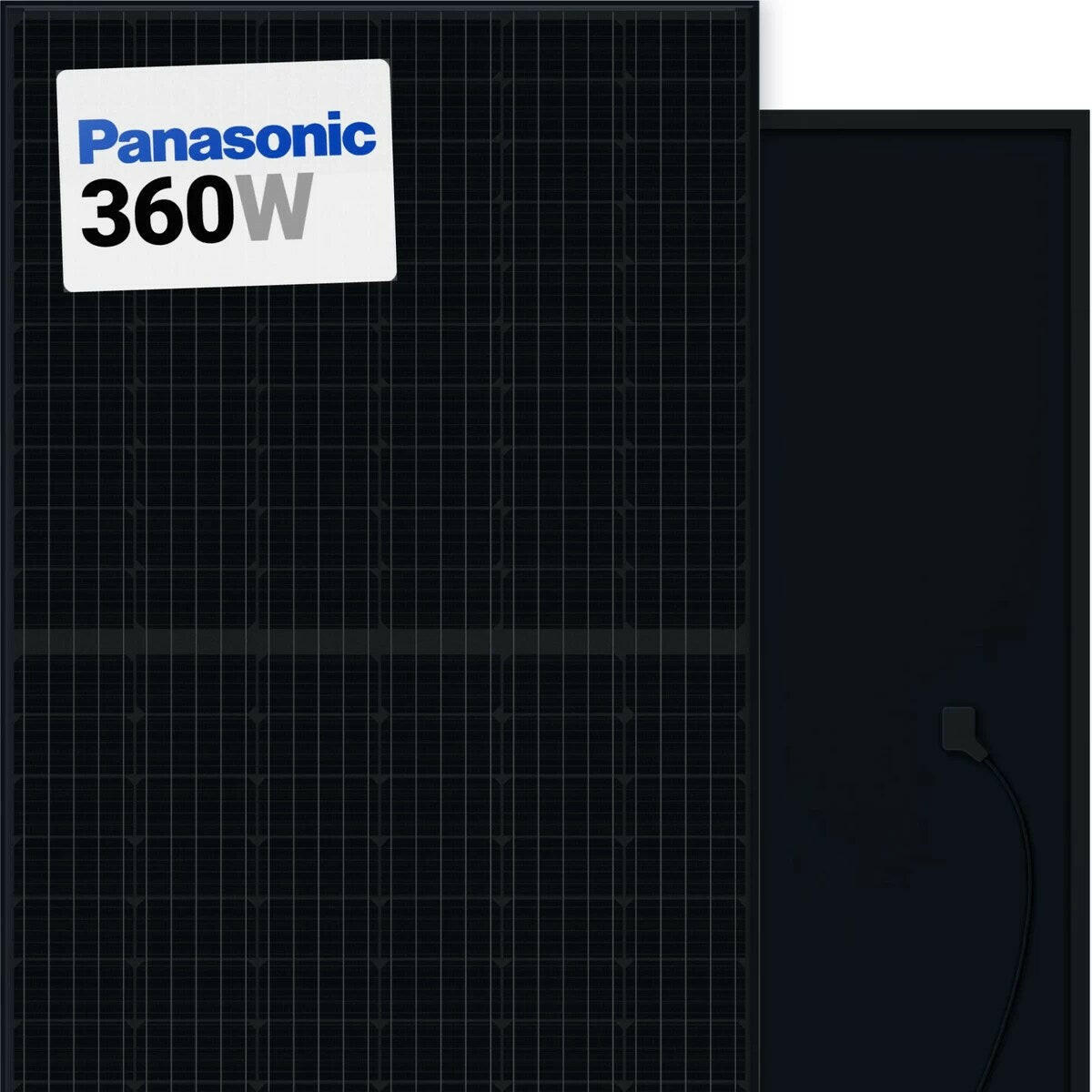

Panasonic Corporation EverVolt® K Series 1000 Vdc 360 W Monocrystalline Solar Module

Panasonic EVERVOLT®Black series solar modules produce more power over the long haul fueled by industry-leading conversion efficiency and low degradation rate. Superior module efficiency of 20.6% (360 W) and 20% (350 W) and greater high-temperature performance deliver a high-output renewable energy source for residential solar systems.

Features

• Higher Module Efficiency: Superior module efficiency of 20.6% and 20%, respectively, allows maximum power production with less roof space. With one of the industry's lowest annual degradation rates, power output of at least 92% is guaranteed after 25 years
• EVERVOLT AllGuard, AllGuard and TripleGuard 25-Year Warranty: A long-term warranty is only as reliable as the company behind it. EVERVOLT AllGuard, AllGuard and TripleGuard 25-year warranties cover EVERVOLT® panels for performance, product, parts and labor1 for 25 years, whether in year three or year 25, your Panasonic warranty will be there when you need it
• High Efficiency in High Temperatures: Produce more energy throughout the day even on the hottest days in the warmest climates, EVERVOLT® solar panels outperform others when temperatures rise due to our industry-leading 0.26%/°C temperature coefficient
• Heterojunction Cell Technology: Half-cut cells with heterojunction technology minimizes electron loss, maximizes conversion efficiency, and produces considerably higher power output over conventional panels
• Durability & Quality Assurance: N-type cells result in minimal Low Induced degradation (LID) and Potential Induced degradation (PID), which supports reliability and longevity, as a solar pioneer for over 40 years, Panasonic EVERVOLT® solar panels are backed by innovation, experience and a brand you can trust
• Improved Performance When Shaded: Continuous power production in shaded areas for greater energy yields and output, more sunlight absorption means more clean power to your home

Specifications

• Series: EverVolt® K

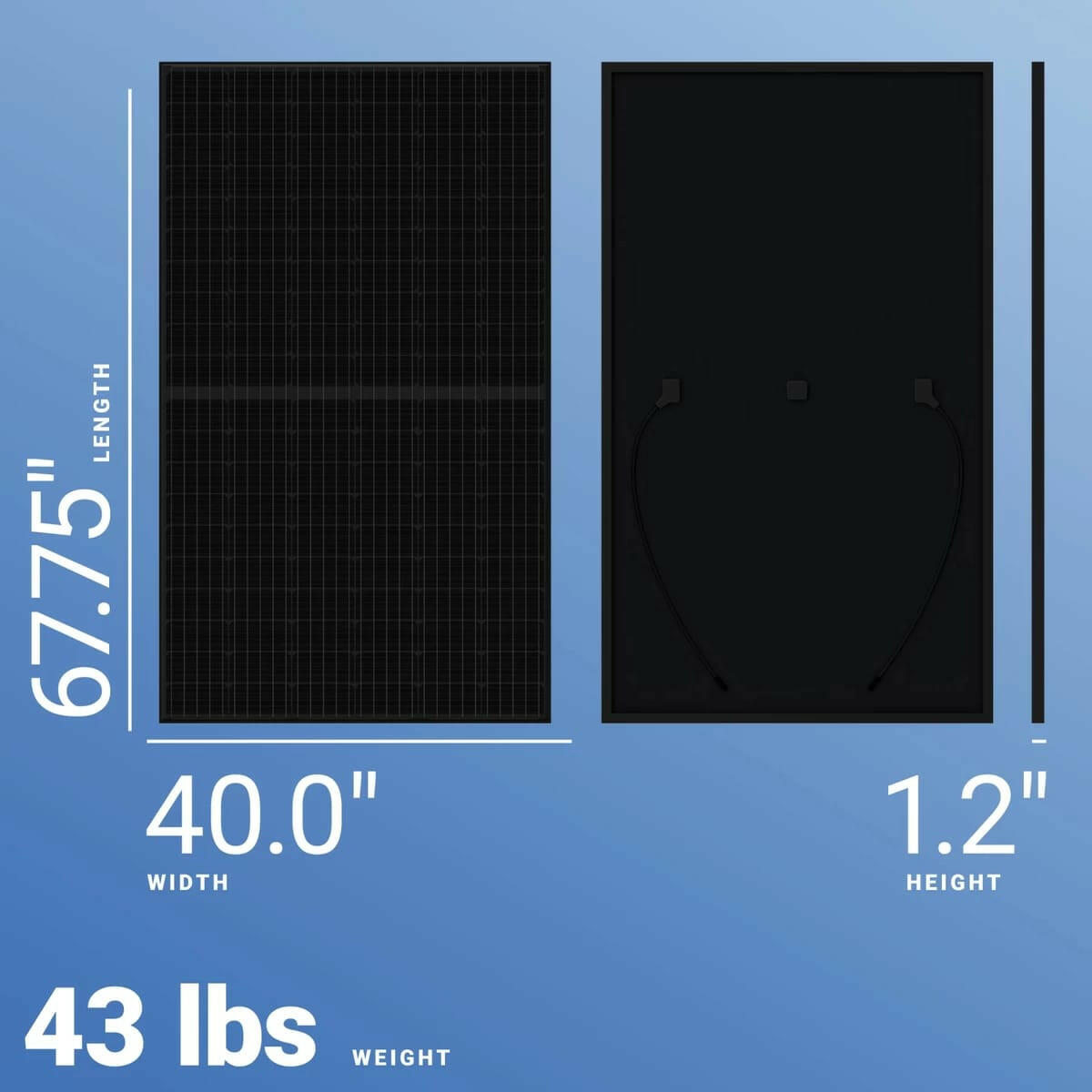

• Length: 67.8 in
• Width: 40 in
• Depth: 1.2 in
• Color: Black Frame
• Power Voltage: 36.7 V
• Power Current: 9.82 A
• Power Rating: 360 W
• Open Circuit Voltage: 43.9 V
• Short Circuit Current: 10.49 A
• Voltage Rating: 1000 Vdc

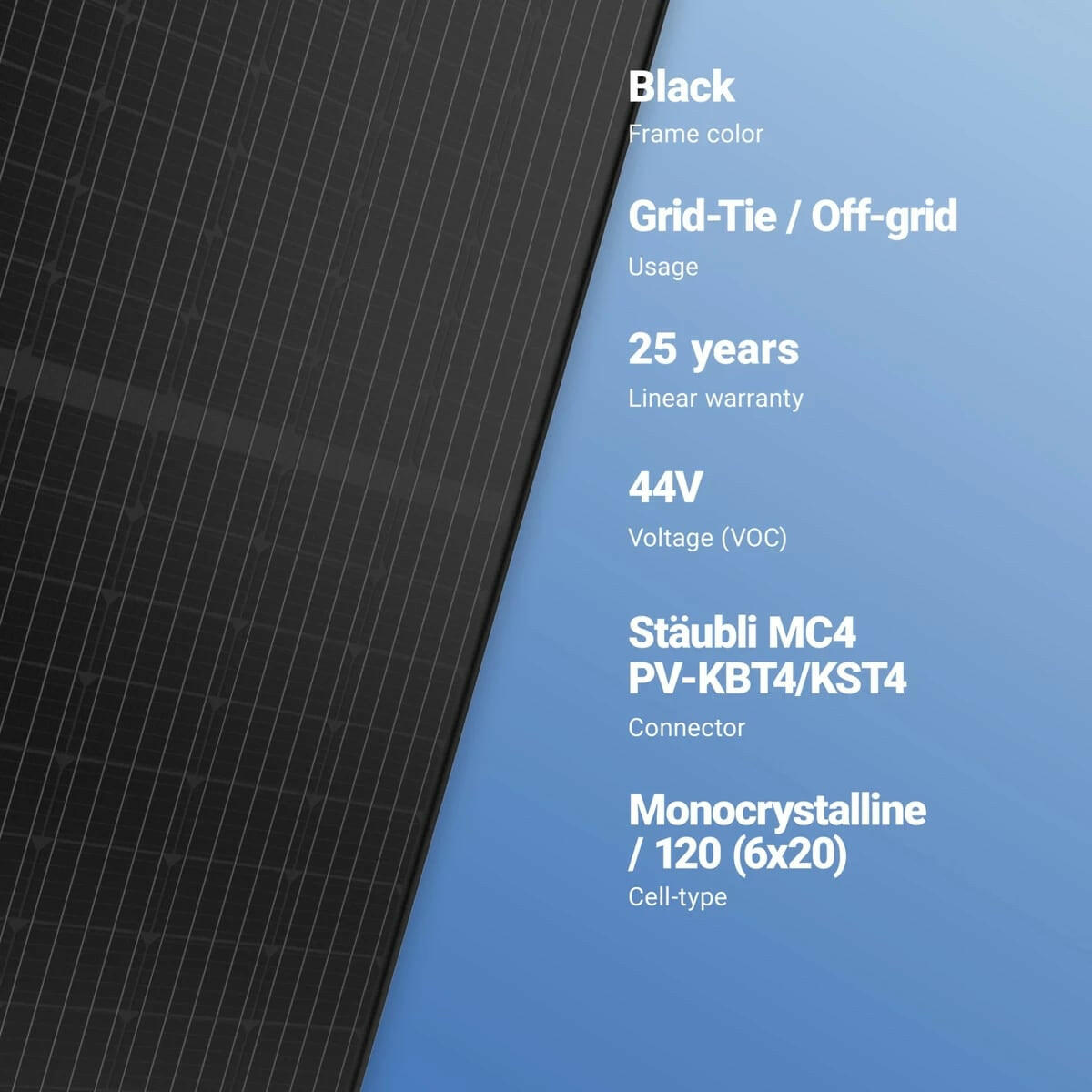

• Cell Type: Monocrystalline
• Number of Cells: 120 (6 x 20)
• Operating Temperature: -40 to 185 deg F
• Efficiency: 20.6%
• Connection Type: Staubli MC4 PV-KBT4/KST4
• Enclosure Rating/IP Rating: IP67
• Warranty: 25 Years
• Weight: 43 lb
• Standards: DVE, ETL

Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Sheet
