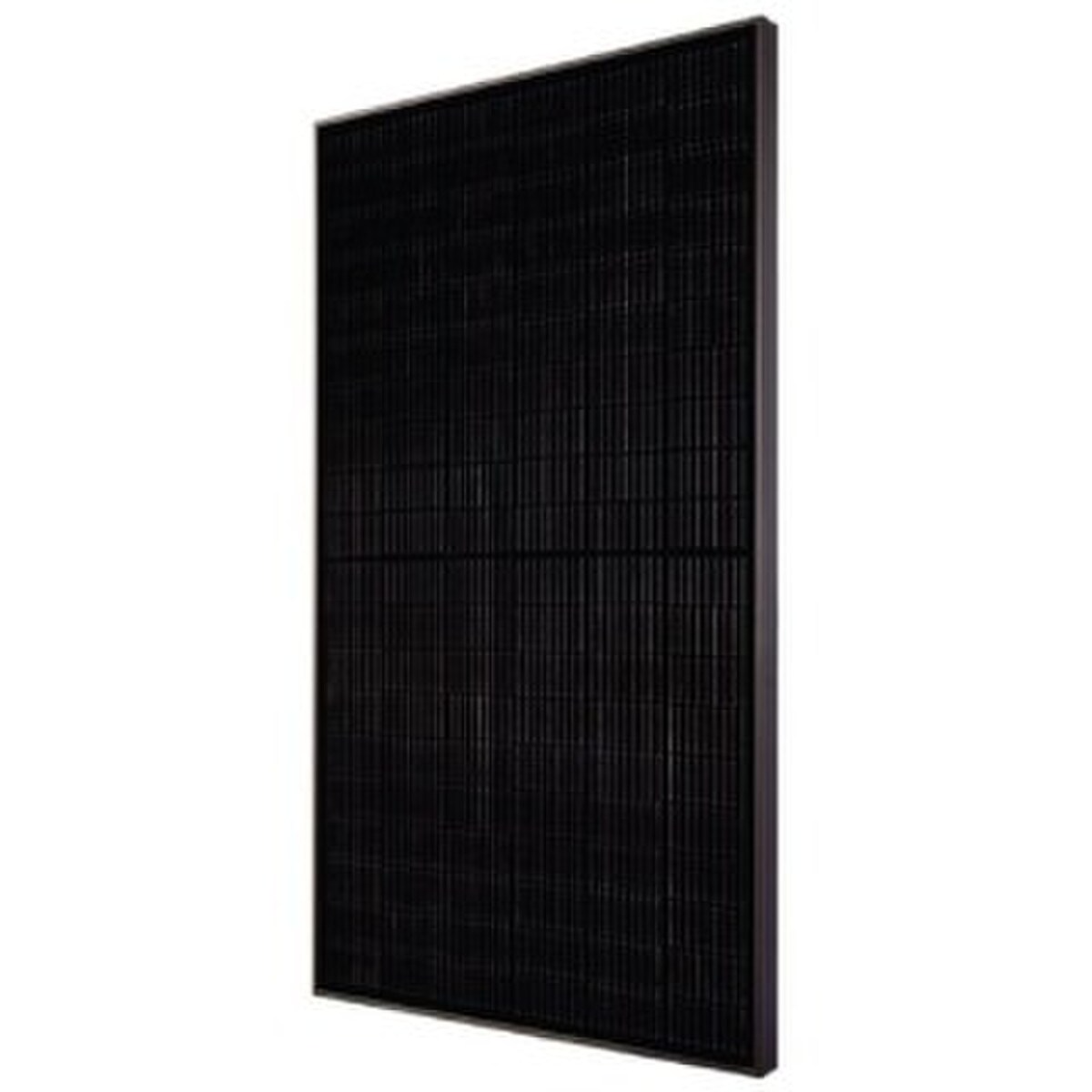

Panasonic Corporation 350 W Mono EverVolt Solar Module

Panasonic EVERVOLT® Module PK Black Series solar modules produce more power over the long haul fueled by industry-leading conversion efficiency and low degradation rate. Superior module efficiency and greater high-temperature performance deliver a high-output renewable energy source for residential solar systems.

Features

• Superior module efficiency
• Half-cut cells with PERC technology
• Improved Performance When Shaded
• AllGuard and TripleGuard 25-Year Warranty
• Durability & Quality Assurance

Specifications

• Cell Type: Mono
• Number of Cells: 120
• Voltage Rating: 1000 V
• Amperage Rating: 10.58 A
• Power Rating: 350 W
• Dimensions: 69.1 in (L) x 40.94 in (W) x 1.2 in (D)
• Efficiency: 19.2%
• Connection Type: MC4
• Cable Length: 4 sq-mm
• Operating Temperature: -40 to 185 deg F
• Open Circuit Voltage: 40.3 V
• Short Circuit Current: 11.13 A
• Fuse Amperage Rating: 25 A

Documents

• Specification Sheet
