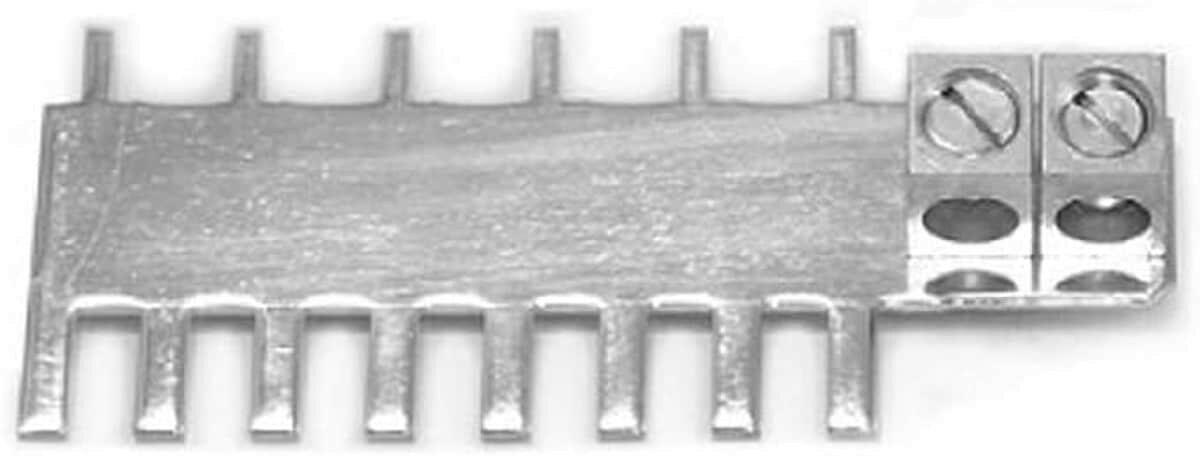

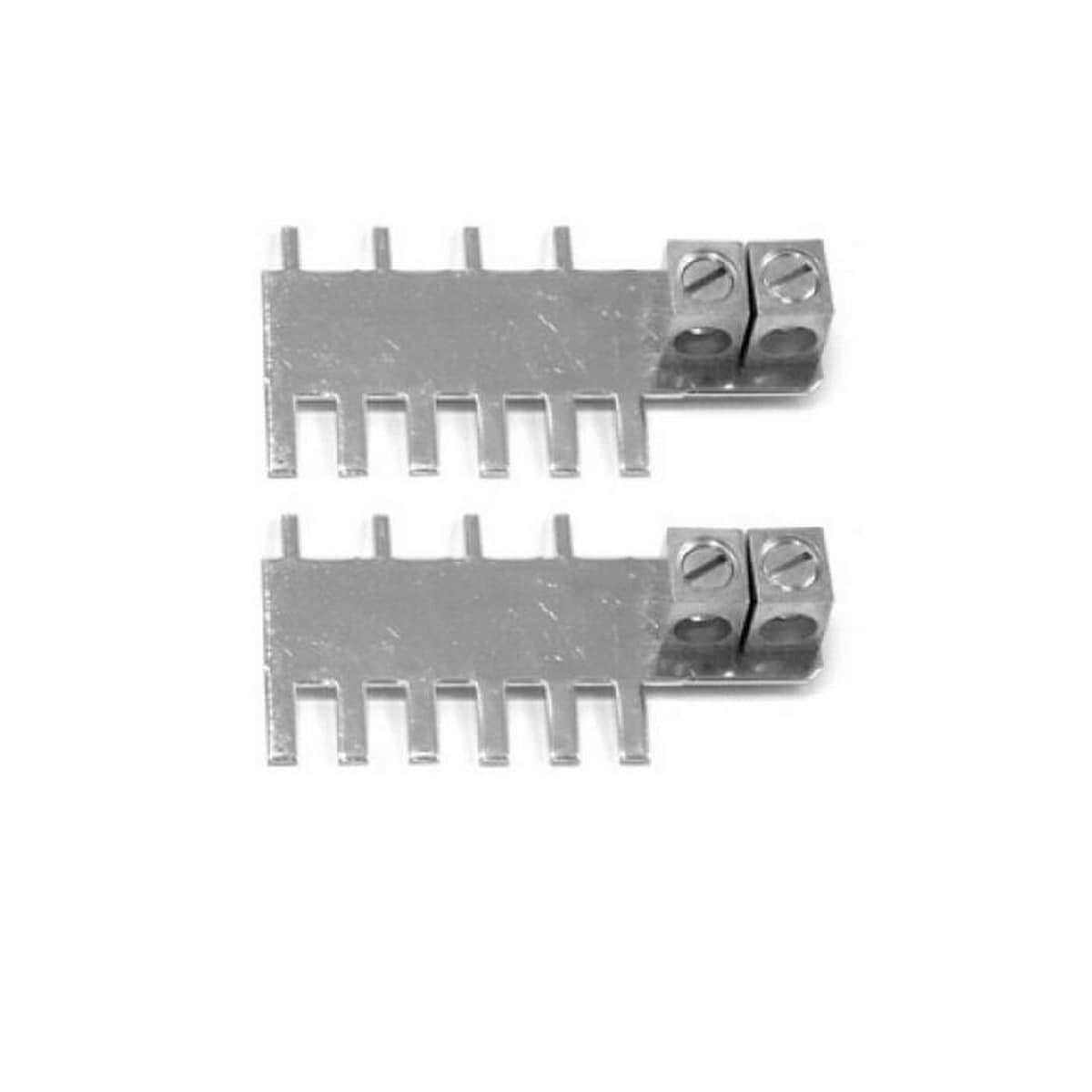

Outback Power Combiner Bus Bar with Dual #2/0 AWG Output Lugs (SKU Part Number FW-CBUS-12)

Outback FW-CBUS-12 reversible combiner bus bar for up to twelve 150 VDC rated breakers, or up to eight 600 VDC rated fuse holders, with dual #2/0 AWG output lug terminals.

Features

• Combiner Bus connects up to eight DIN mounted breakers or four DIN mounted fuse holders - includes one 1/0 set screw lug - plated copper rated for 200 A
• FLEXware DC bus connectors make code compliant DC connections easier
• Have high connectivity for minimum loss
• Combiner Bus connects up to eight DIN mounted breakers or four DIN mounted fuse holders - includes one 1/0 set screw lug - plated copper rated for 200 A
• Safety - Designed to enable the most complex of code compliant DC cable connections
• Efficiency - Includes one 1/0 set screw lug - plated copper rated for 200 A
• User Friendly - Connects up to eight DIN mounted breakers or four DIN mounted fuse holders


Specifications

• Dimensions: 4 in x 4.5 in x 4.25 in
• Rated Current Rating: 200 A
• Includes: (2) 2/0 AWG Output Lug Terminals
• Suitable For Use With: (12) 150 VDC Rated Breakers or Up to (8) 600 VDC Rated Fuse Holders
• Material: Plated Copper
• Standards: ETL Listed
• Weight: 0.56 lb
