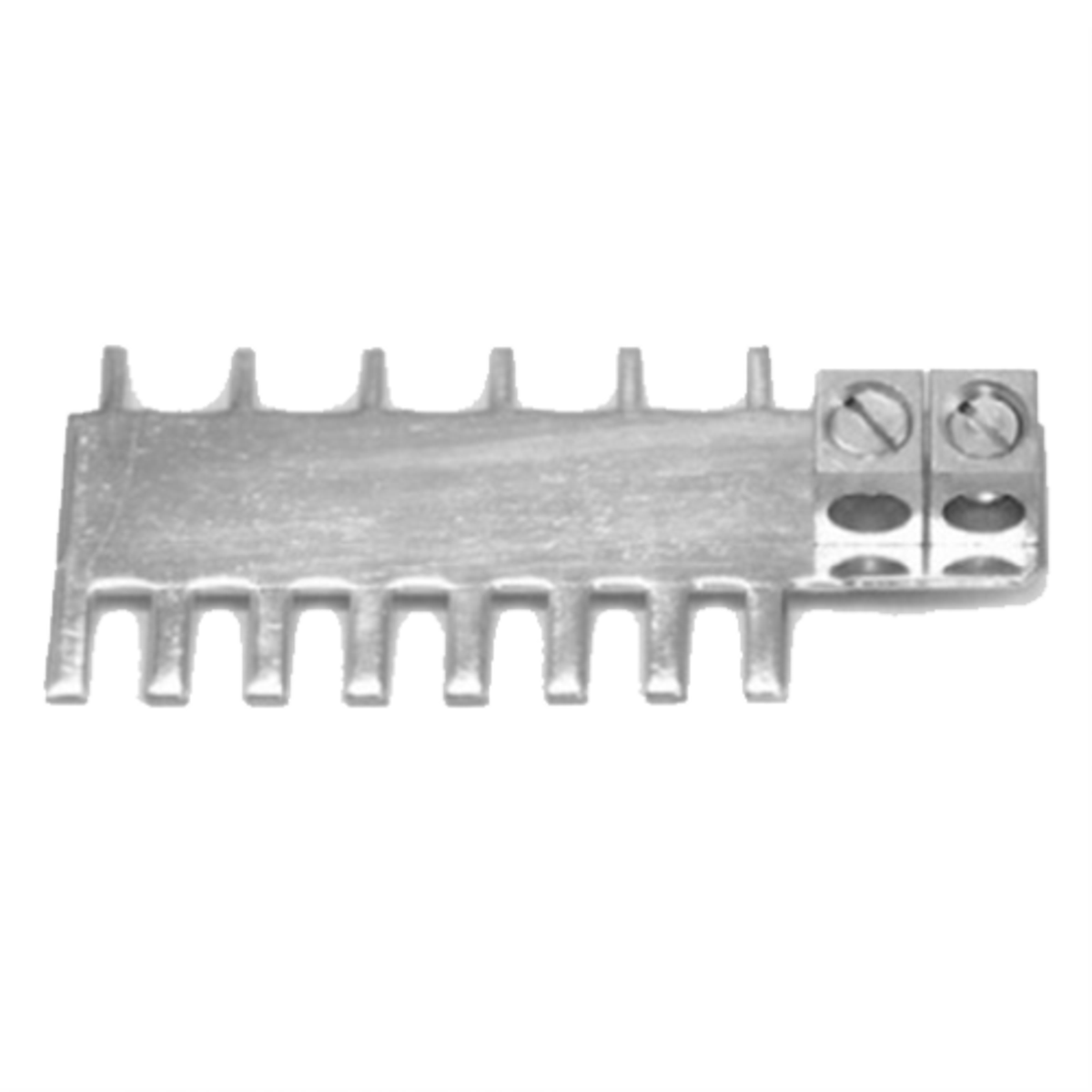

Outback Power Combiner Bus Bar with #2/0 AWG Output Lug (SKU Part Number FW-CBUS-8)

Outback FW-CBUS-8 reversible combiner bus bar for up to eight 150 VDC rated breakers or up to six 600 VDC rated fuse holders with dual 2/0 AWG output lug terminals.

Features

• OutBack DC bus bars are designed to enable the most complex of code compliant DC cable connections. Combiner bus connects up to eight DIN mounted breakers or six DIN mounted fuse holders for the FW-CBUS-8 and the FW-CBUS-12 connects up to twelve DIN mounted breakers or eight DIN mounted fuse holders . Includes two 2/0 AWG box lug terminals; plated copper
• FLEXware DC bus connectors make code compliant DC connections easier
• Have high connectivity for minimum loss
• Combiner Bus connects up to eight DIN mounted breakers or four DIN mounted fuse holders - includes one 1/0 set screw lug - plated copper rated for 200 A


Specifications

• Dimensions: 4.25 in x 4.25 in x 4.25 in
• Rated Current Rating: 200 A
• Includes: (2) 2/0 AWG Box Lug Terminals
• Suitable For Use With: 8 x 150 VDC Breakers or 6 x 600 VDC Fuse Holders
• Material: Plated Copper
• Standards: ETL Listed
• Weight: 0.24 lb


Documents

• Specification Sheet
