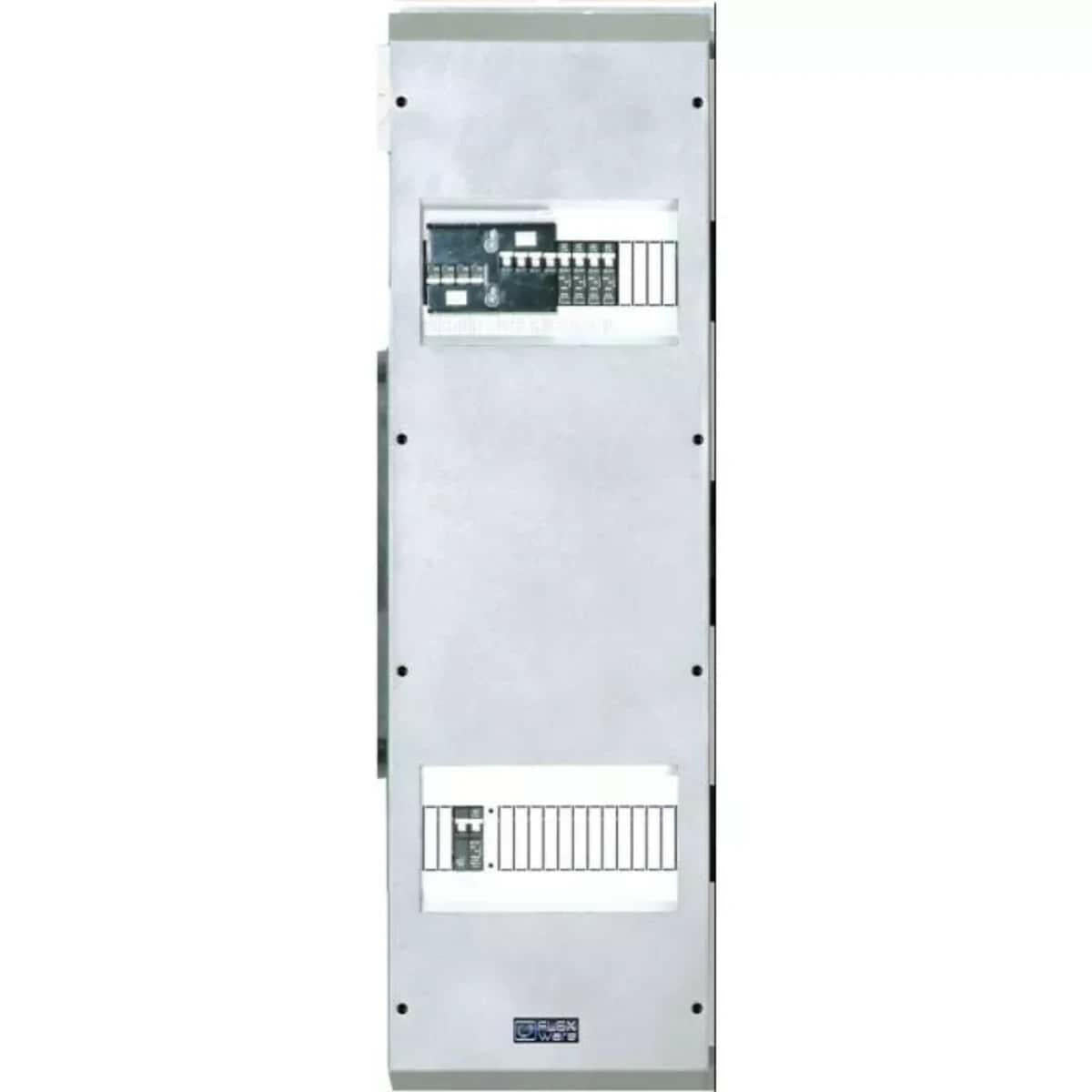

Outback FW1000-AC AC breaker enclosure

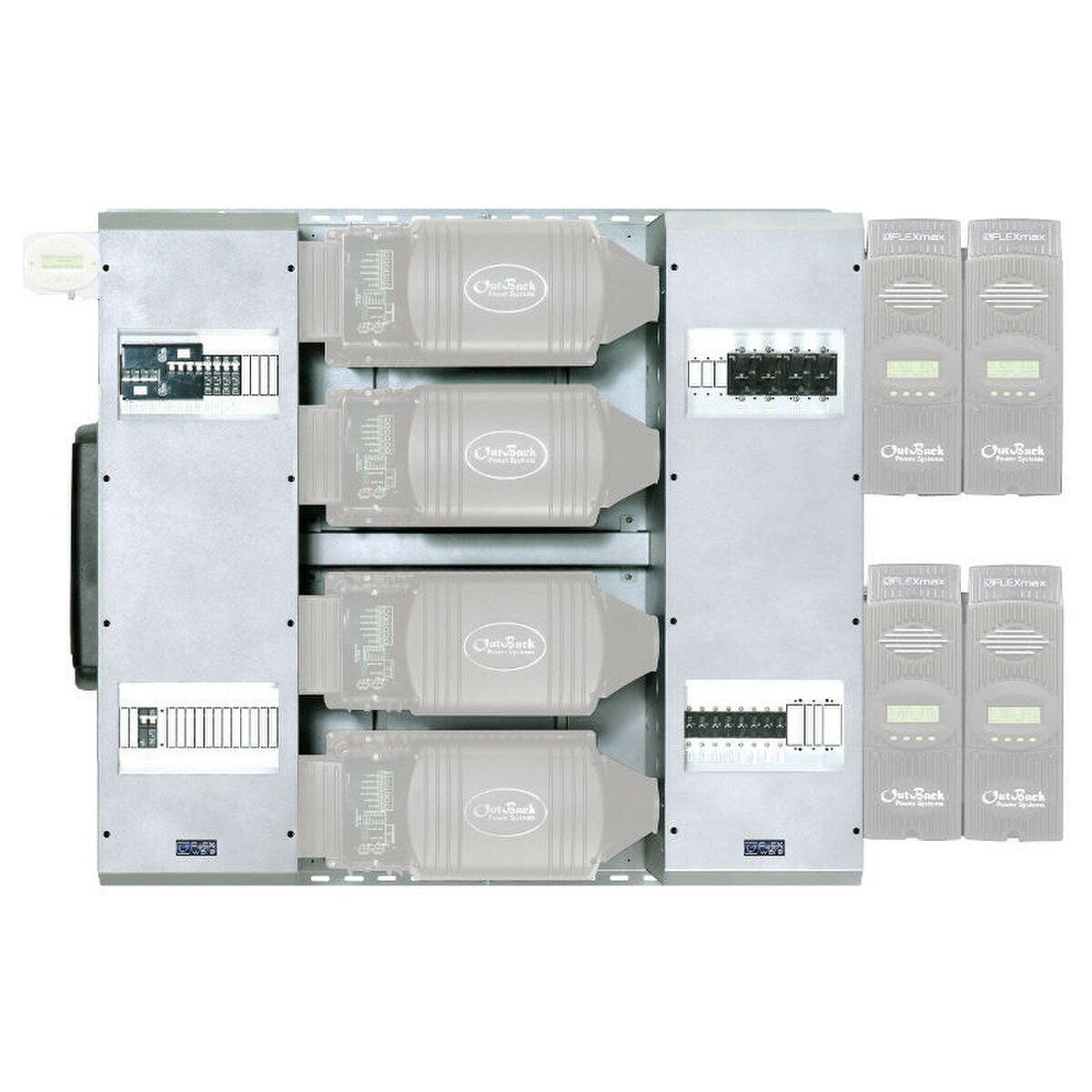

The FLEXware 1000 system architecture is capable of supporting up to four OutBack FX Series Inverter/Chargers, four OutBack charge controllers, and all the required AC and DC components and wiring. Utilizing a compact design, FLEXware 1000 AC and DC enclosures accommodate all of the essential protective devices with lots of room for additional breakers and large cable connections and can be mounted either vertically or horizontally.

Features

• Large power requirements such as large residential, commercial or village power systems
• Capable of supporting up to four OutBack FX Series inverter/chargers
• Four outBack charge controllers
• Compact design
• Vertical and horizontal mounting options
• Supports eight terminal bus bars (not including GBB) and three shunt assemblies

Specifications

• Enclosure Material: Aluminum
• Protection: Type 1 (Indoor) (IP30)
• Dimensions: 38.5 in (L) x 11.4 in (W) x 12.1 in (H)
• Includes: Ground Bus Bar, 1000 Amp DC Shunt Assembly, Positive Bus, Breaker Mounting Hardware, Enclosure Mounting Hardware, Two FW-SBUS & One FLEXware 1000 Breaker Bus
• Suitable For Use With: AC Side of Up to Four FXR Series Inverter/Chargers
• Application: Large Power Requirements Such as Large Residential, Commercial, or Village Power Systems

Documents

• User Guide
• Specification Sheet
