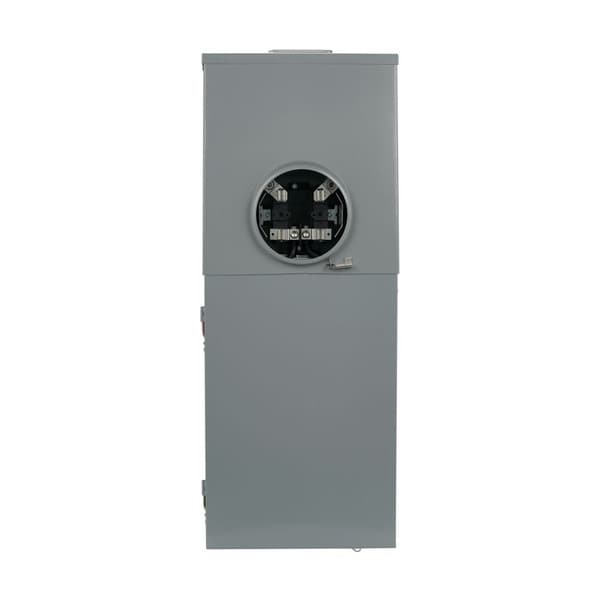

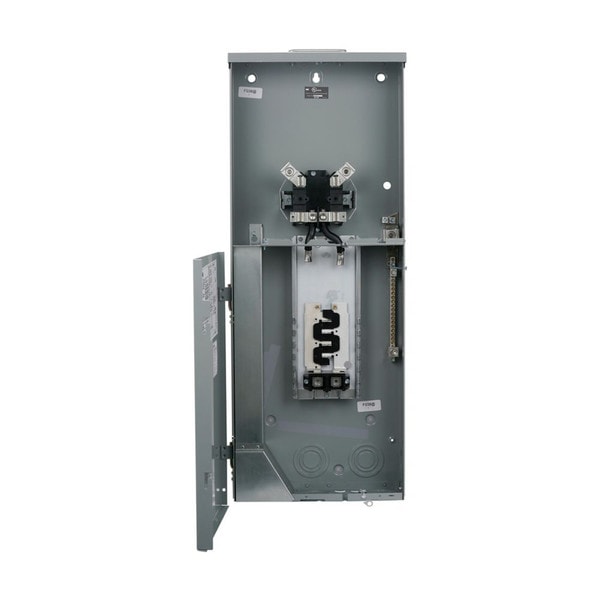

MB816P200BTSG - Eaton Residential Meter Breaker

The Residential Meter Breaker is a compact, all-in-one solution designed for efficient power distribution and metering in residential applications. This ringless meter breaker combines a meter socket and main breaker in one enclosure, reducing installation time and space requirements. With a 200 A rating, aluminum construction, and NEMA 3R enclosure, it’s built for durability in outdoor environments. Compatible with BR breakers and featuring both bottom and top feed options, this surface-mounted unit is ideal for modern electrical service needs.

Key Features:

• Accessory Type: Residential Meter Breaker – All-In-One
• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Phase: Single-Phase
• Jaw Count: Four-Jaw
• Breaker Compatibility: Used with BR Breakers
• Enclosure Material: Aluminum
• Enclosure Rating: NEMA 3R for outdoor use
• Mounting: Surface Mounted
• Feed Type: Bottom and Top Feed
• Interrupting Rating: 10 kAIC
• Wire Range: 6–350 KCM
• Configuration: Ringless, FTL (Factory Terminated Lugs), Provision for Main
• Circuit Spaces: 16 Total
• Number of Positions: 8

This meter breaker provides a safe, streamlined solution for residential service entrances, combining metering and protection in one durable, space-saving unit.

Documents:

Specifications and datasheets
Eaton Specification Sheet - MB816P200BTSG
