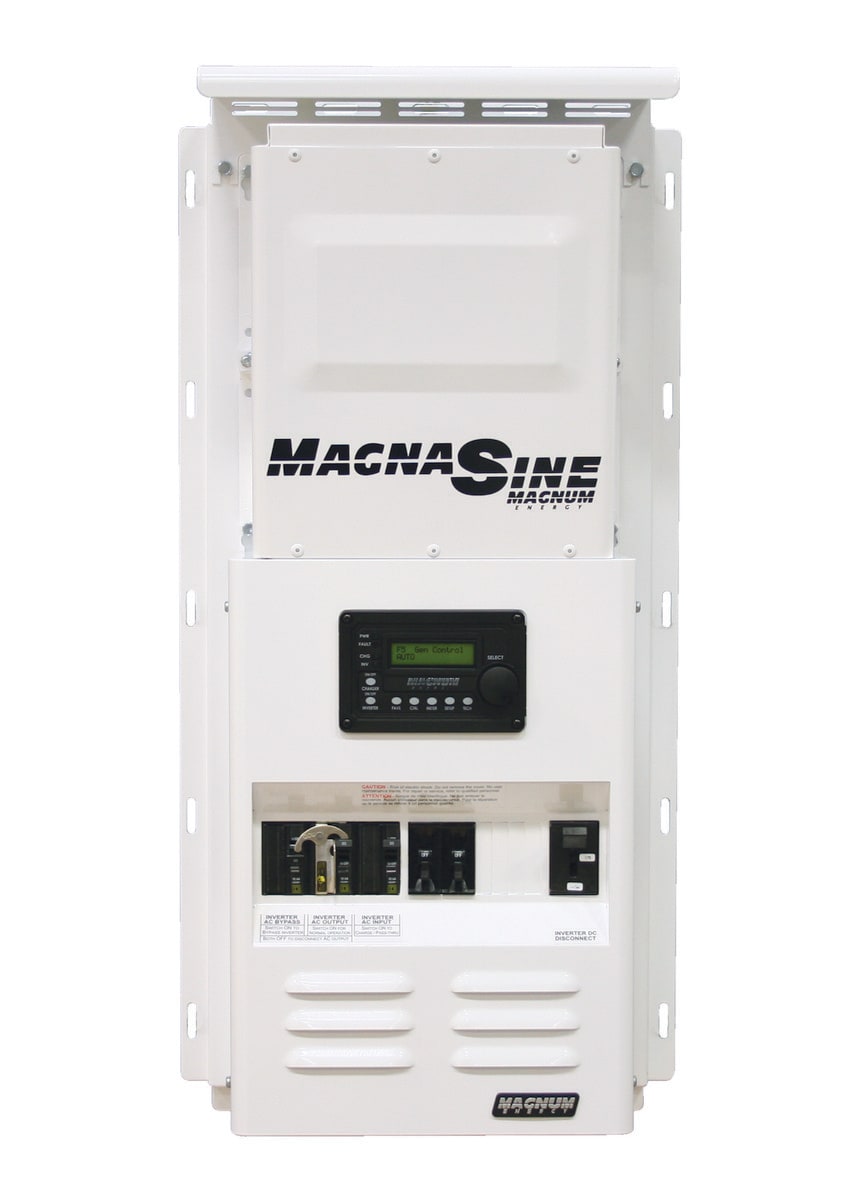

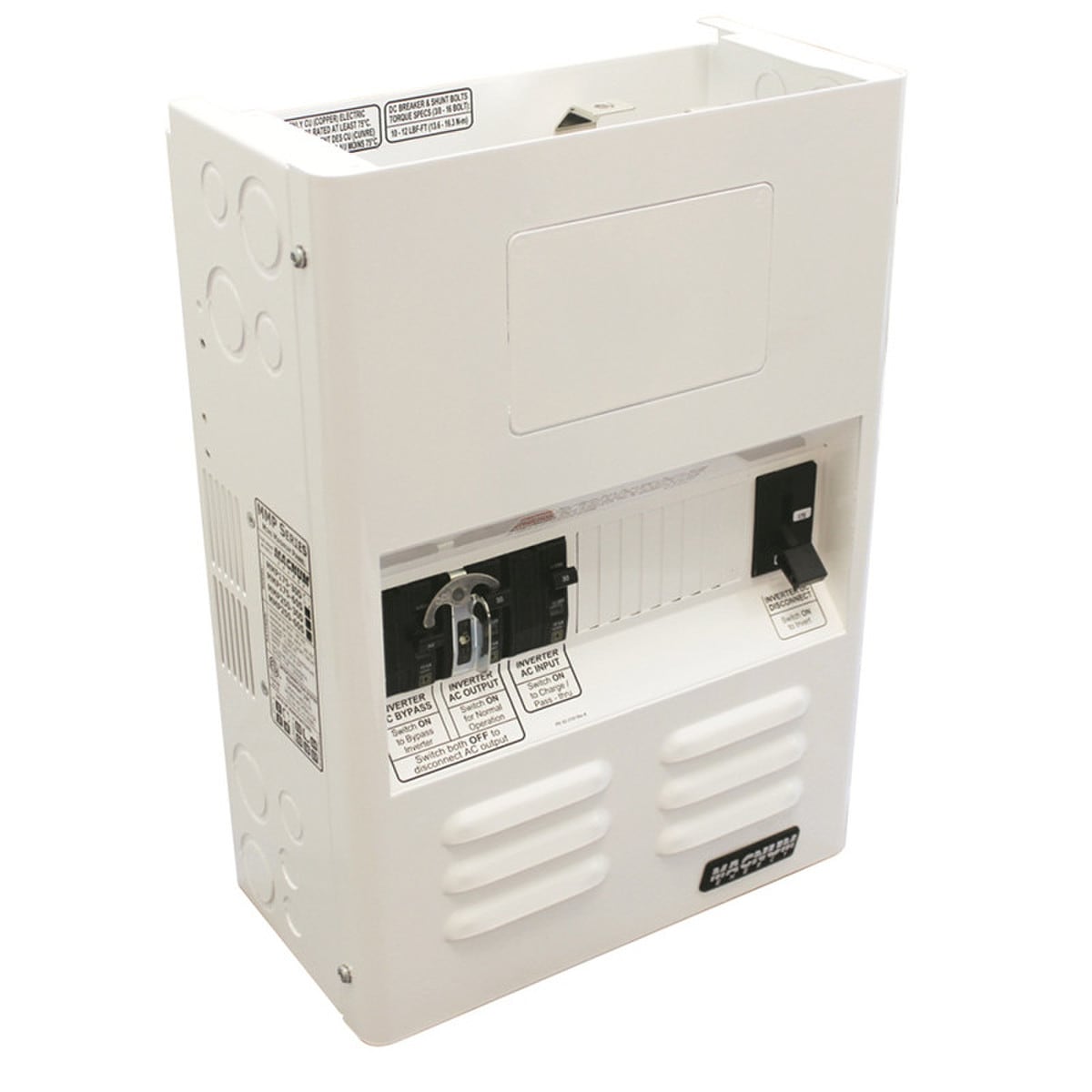

Magnum MMP250-60S Mini Magnum Panel

The MMP - Mini Magnum Panel is an inclusive, easy-to-install panel designed to work with one Magnum MS-AE, MS-PAE, MS, RD or other non-Magnum inverter/charger. The MMP can be configured to work with any 24 or 48 volt battery-based inverter/charger.

Features

• Small Footprint: Only 12.5 in wide x 18 in tall x 8 in deep
• Easy Access - Front-mounted breakers and remote (optional)
• Choices - Can be wired for 120 VAC or 120/240 VAC output
• Inclusive - Works with non-Magnum inverter / chargers (may require the optional knockout plate for the top of the MMP: an MMP-KP)
• Regulatory Markings - ETL listed to UL1741 and CSA C22.2 107-01
• DC Load Breakers Fits either DIN rail or back-mount DC load breakers
• Safety - AC over-current protection, grounding connections, and full system inverter bypass switch
• Efficiency - Designed specifically for single inverter applications
• User Friendly - Easy installation and operation


Specifications

• Type: Mini
• Series/Model: MMP
• Width: 12.5 in
• Height: 18 in
• Depth: 8 in
• DC Breaker: 250 A
• AC Bypass: 60 A Single
• Number of Inverter/Chargers: 1
• Continuous Watts Accommodated: 4200 W
• Output Frequency: 60 Hz
• Includes: (1) DC Breaker, (1) AC Bypass Breaker, (1) AC Input Breaker, 500 A/50 mv DC Shunt, DC Buss Bar for Battery Positive and Negative, DIN Rail or Back Mount for Optional DC Mini Breaker, Inverter Hood
• Standards: UL, CSA, cUS
• Warranty: 5 Years
