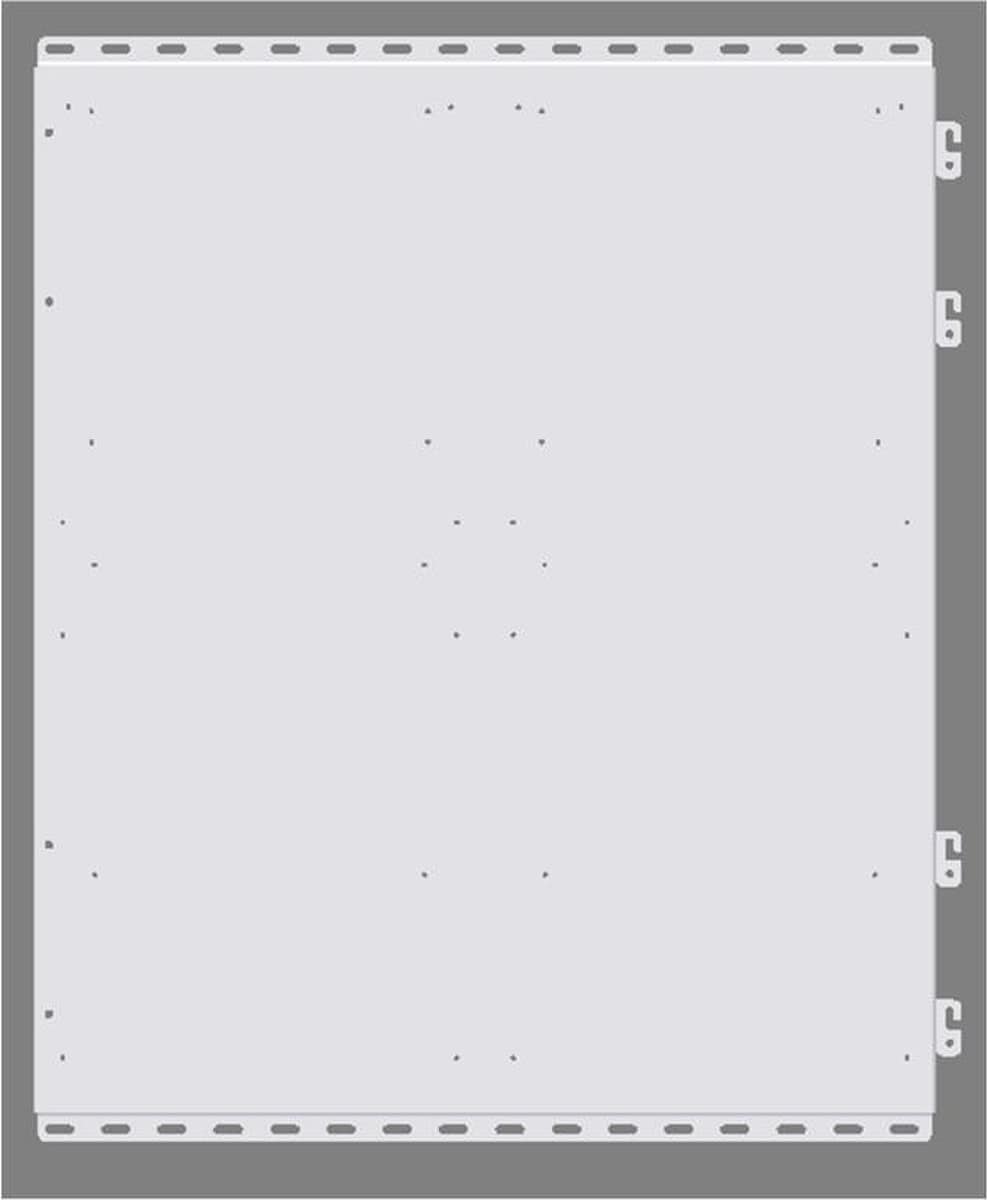

Magnum BP-D Back Plate Double

The BP-D is a single-piece, powder-coated steel back-plate designed to accommodate two MP or MPX enclosures, two Magnum inverters, and two inverter hoods together; making the complete system appear more seamless. Designed with PEM (i.e. internally threaded) nuts, the back-plate is shipped with 1/4-20 x 3/4 in Hex head bolts for easily mounting the MP enclosure, a Magnum inverter, and the inverter hood.

Features

• This backplate also provides the necessary requirement to provide a noncombustible mounting surface required when mounting the inverters on a wall
• Safety - Noncombustible mounting surface
• Efficiency - Works with multiple Magnum enclosures
• User friendly - Easy installation


Specifications

• Type: Double
• Material: Steel
• Finish: Powder Coated
• Dimensions: 39.3 in Height x 33 in Width x 0.75 in Depth
• Suitable For Use With: 1-MPDH, 1-MPSH & 1-MPX, 1-MPSL & 1-MPX, BP-D Enclosure
• Standards: UL Listed=
