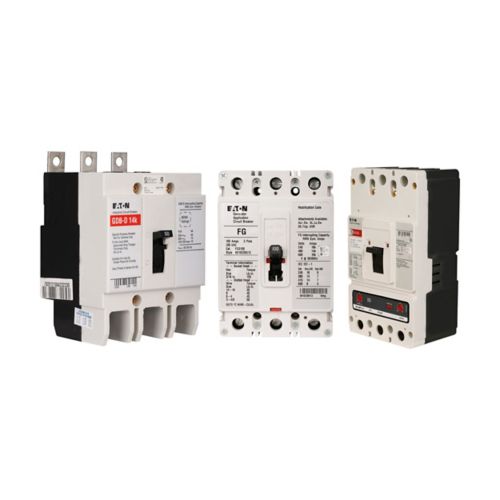

GHB2030 - Molded Case Circuit Breaker

The Molded Case Circuit Breaker, 30 A is engineered to provide reliable protection for electrical circuits in both industrial and commercial applications. With a non-interchangeable thermal magnetic tripping mechanism, this bolt-on breaker ensures efficient overcurrent protection for 277/480 V AC and 125/250 V DC circuits. Its G-frame design offers secure installation and dependable performance in demanding environments.

Key Features:

• 30 A current rating for reliable circuit protection
• Non-interchangeable thermal magnetic tripping mechanism for effective safety
• Dimensions: 6.1 in overall height, 3.7 in overall length, 2.9 in overall width
• Suitable for 277/480 V AC and 125/250 V DC applications

This Molded Case Circuit Breaker, 30 A is an excellent choice for ensuring safety and reliability in electrical systems, offering dependable overcurrent protection in various applications.

Documents:

Application notes

Application of Tap Rules to Molded Case Breaker Terminals
Brochures

Plug-in adapters for molded case circuit breakers product aid
Catalogs

Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Multimedia

Circuit breakers explained

Circuit Breakers Explained
Specifications and datasheets

Eaton Specification Sheet - GHB2030
