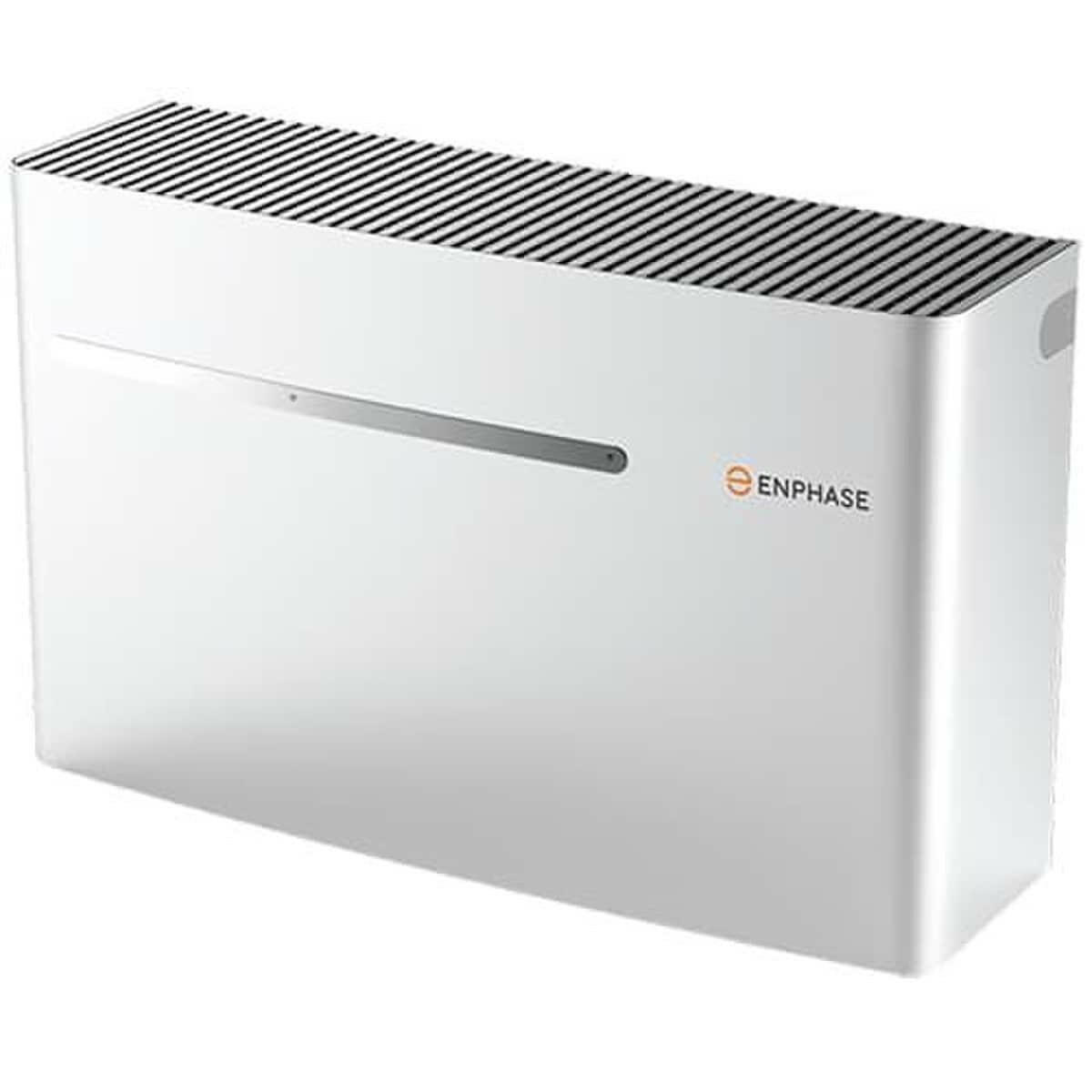

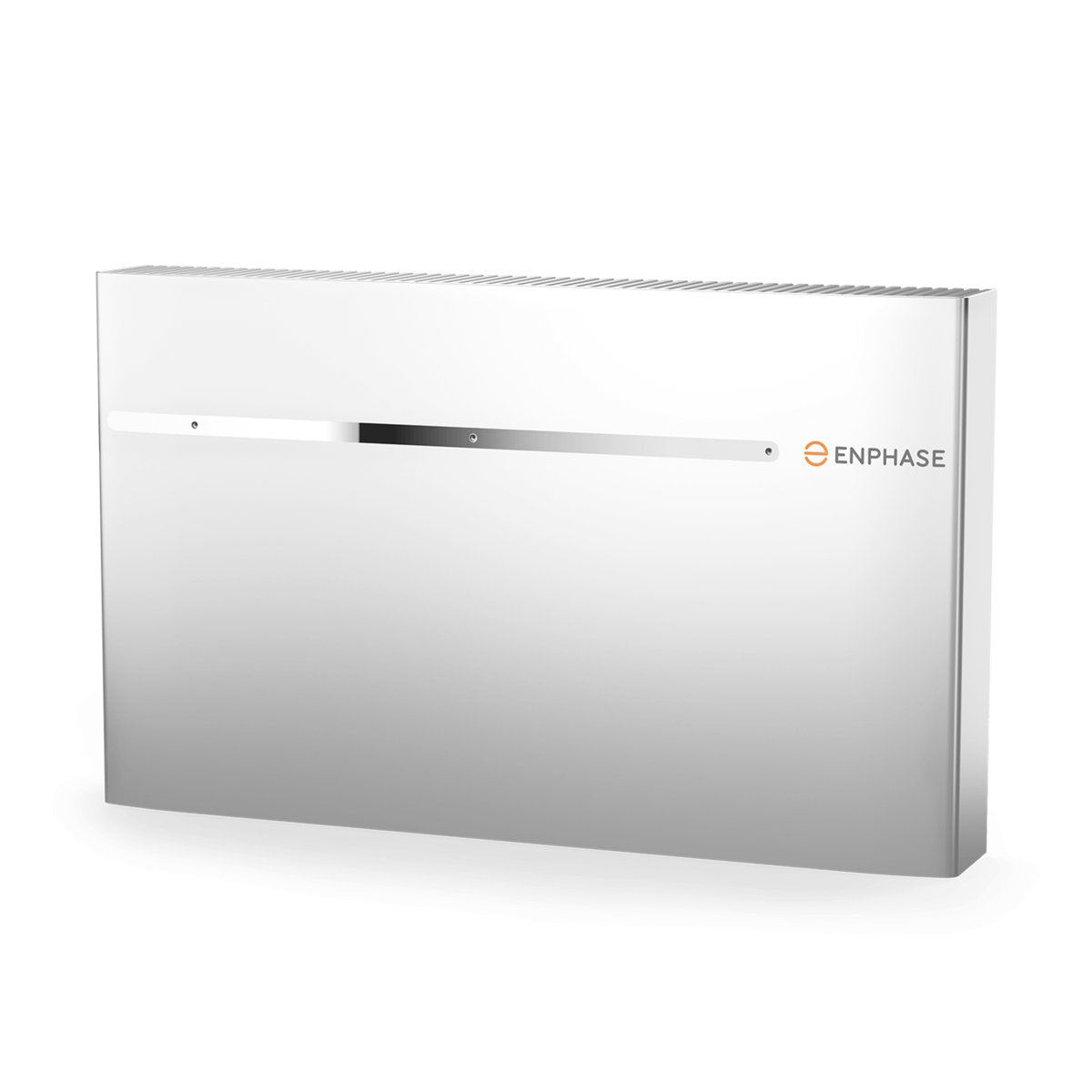

Enphase, IQ Battery 10T, 10.5kWh LFP Battery

The Enphase IQ Battery 10T all-in-one AC-coupled storage system is reliable, smart, simple, and safe. It is comprised of three base IQ Battery 3T storage units, has a total usable energy capacity of 10.08 kWh and twelve embedded grid-forming microinverters with 3.84 kW power rating. It provides backup capability and installers can quickly design the right system size to meet the needs of both new and retrofit solar customers.

Features

• Fully integrated AC battery system
• 3 IQ Battery 3 storage units
• 12 Embedded IQ8X-BAT Microinverters
• Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
• Quick and easy plug-and-play installation
• Remote software and firmware upgrades
• Grid-forming capability for backup operation
• Mobile app-based monitoring and control
• Support for self consumption, utility Time Of Use (TOU) optimization
• 15-Year limited warranty


Specifications

• Length: 188 mm
• Width: 1283 mm
• Height: 775 mm
• Nominal Voltage: 211-264 Vac
• Power Rating: 3.84 kW
• Energy Capacity: 10.08 kWh
• Peak Output Power: 5.76 kVA
• Rated Output Power: 3.84 kVA
• Battery Chemistry: Lithium Iron Phosphate (LFP)
• Temperature Rating: -15 to 55°C
• Rated Output Current: 16 A
• Peak Output Current: 24.6 A
• Power Factor: 0.85 Lead/0.85 Lagging
• Suitable For Use With:
  • Enphase Energy System 1.0/2.0
  • IQ Battery 3/3T/10/10T
  • IQ Microinverters
  • IQ System Controller 1/2
  • Communication Kit
  • IQ Combiner 3-ES/3C-ES/4/4C
  • M Series Microinverters
• Warranty: 15-Year Limited
• Standards:
  • UL Listed
  • Meets CA Rule 21 (UL 1741-SA)
  • IEEE 1547:2018 (UL 1741-SB, 3rd Ed.)


Documents

• Specification Sheet
•  Instruction/Installation Manual
