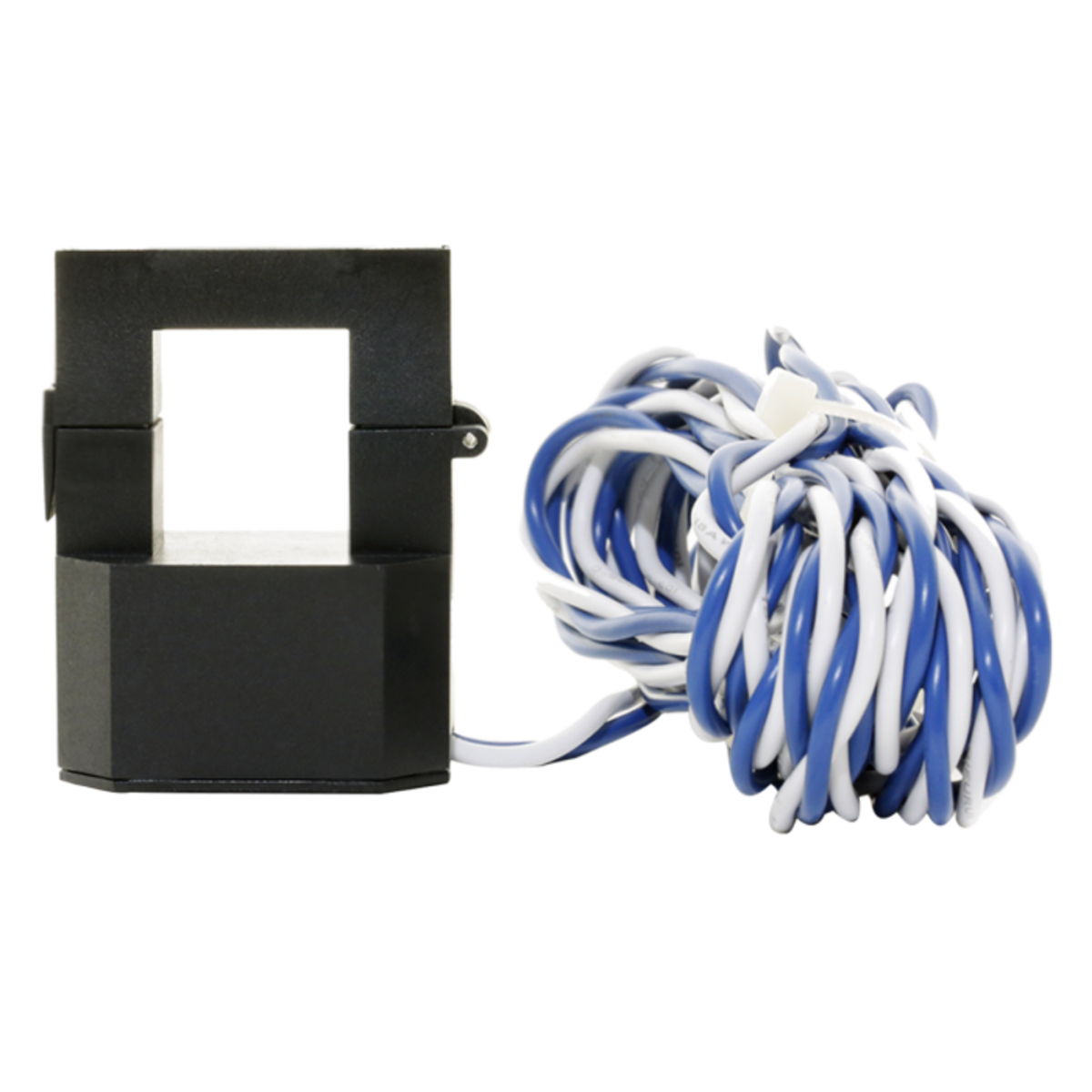

Enphase CT-200-CLAMP Consumption Clamp Current Transformer

When used with an Envoy S Metered or IQ Gateway, the Consumption Current Transformer (CT) enables home energy consumption monitoring.

Features

• Install a pair of CTs for monitoring split-phase consumption
• Enable whole-home consumption metering with an accuracy of +/- 2.5%
• Includes 8 ft 18 AWG wire
• Two CTs are required for most residential 240v applications. Three (or six) for commercial
• Split-core current transformer (CT), accuracy +/- 2.5%
• When considering consumption monitoring, first determine if the split-core consumption CTs can be readily installed around the service conductors or busbars. If the consumption CTs cannot be easily installed on the service panel, additional electrical wiring may be required to prepare the site


Specifications

• Dimensions: 50.8 mm (L) x 35.3 mm (W) x 60.50 mm (H)
• Suitable For Use With: ENV-IQ-AM1-240 M, X-IQ-AM-240-B M, Envoy-S Metered: ENV-S-AM1-120 M, XAM1-120-B M IQ Envoy Meter
• Warranty: 5 Years


Documents

• Instruction/Installation Manual
