DH362NGK - Safety Switch

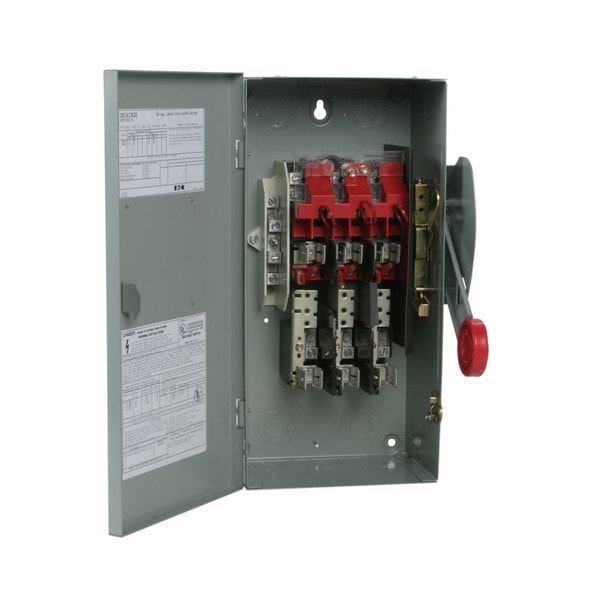

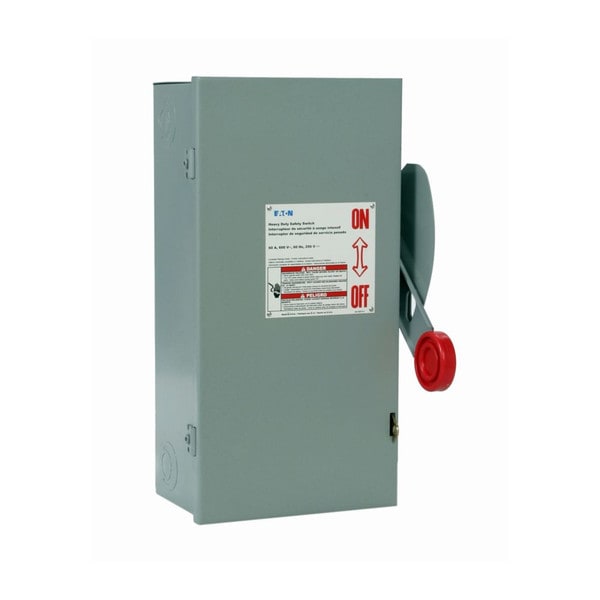

The Eaton Safety Switch is designed for reliable electrical disconnecting and protection in industrial and commercial applications. With a 60A rating, it supports both AC (480 to 600V) and DC (250V) circuits. This fusible switch features three poles and four wires, along with Class H fuses for secure protection. The switch comes in a painted steel enclosure, providing durability and resistance to corrosion. It has an overall size of 8.13 inches in length, 10 inches in width, and 15.88 inches in height.

Key Features:

• Product Type: Safety Switch
• Amperage Rating: 60A
• Voltage Rating: 480 to 600V AC, 250V DC
• Poles: 3 Poles
• Wires: 4 Wires
• Fuse Type: Class H Fuse
• Enclosure Material: Painted Steel
• Fusible: Yes
• Dimensions: 8.13" Length x 10" Width x 15.88" Height
• Weight: 20 lbs

This safety switch ensures reliable protection and disconnection of circuits in demanding industrial and commercial environments.

Documents:

Catalogs
Commercial Distribution, Switching Devices, Volume 2, Tab 1

Specifications and datasheets
Eaton Specification Sheet - DH362NGK
