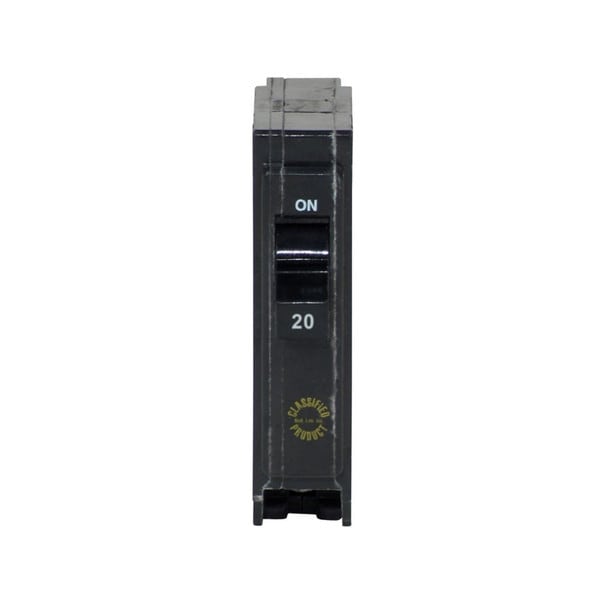

CHQ120 - Standard Trip Circuit Breaker

The Standard Trip Circuit Breaker provides reliable protection for your electrical system, with a 20A rating and compatibility with 120/240V AC systems. This breaker features a common tripping mechanism, ensuring safety in case of overloads or short circuits. It comes with line and load lug terminals for secure connections and a plug-on installation for easy setup. Compact in design, it is ideal for use in residential and light commercial applications.

Key Features:

• 20A current rating for reliable protection in 120/240V AC systems
• Common tripping mechanism for added safety
• Line and load lug terminals for secure, stable connections
• Plug-on installation for easy and efficient setup
• Compact size with a 3" overall height, 2.5" overall length, and 0.8" overall width
• Weighs only 0.30 lb for lightweight installation

This circuit breaker ensures optimal protection for your electrical system, preventing damage from overloads or short circuits while offering ease of installation and reliable performance.

Documents:

Brochures

Standard circuit breaker catalog numbers - 5651B63SH09
Catalogs

Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1
Specifications and datasheets

Eaton Specification Sheet - CHQ120
