CHP42N225X7 - Eaton CH Pon 3/4-Ineaton CH Loadcenter

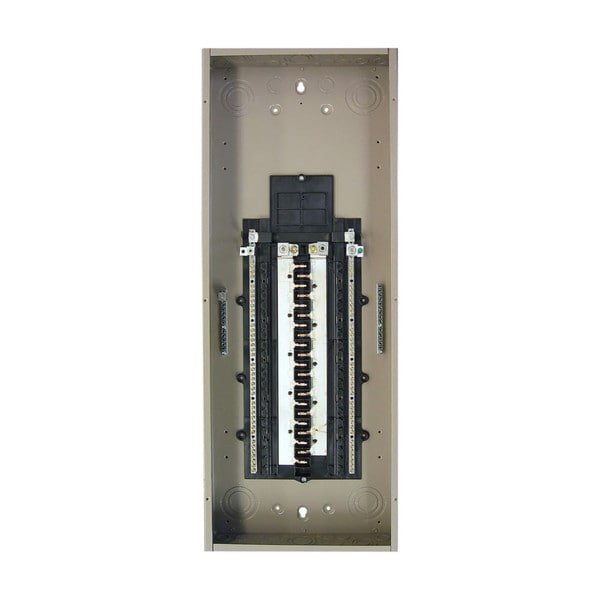

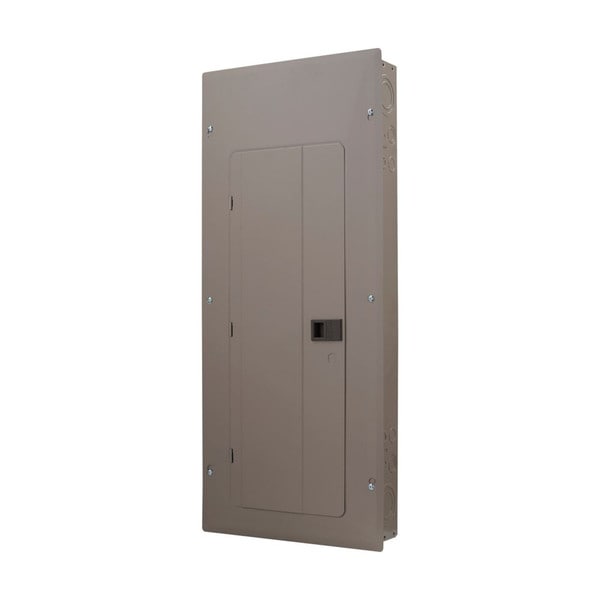

The Eaton CH Plug-On Neutral Loadcenter is designed for efficient power distribution in residential and light commercial applications. With a 225-amp rating and 42 circuit spaces, this convertible loadcenter supports both main lug and main breaker configurations. Its plug-on neutral design streamlines installation by eliminating the need for pigtail connections, resulting in a cleaner and more organized panel.

Key Features:

• 225 A, 120/240 V AC, single-phase rating
• 42 spaces accommodating up to 84 circuits
• Convertible between main lug and main breaker setups
• Plug-on neutral design for simplified wiring
• Copper bus for superior conductivity
• NEMA 1 enclosure suitable for indoor use
• Dimensions: approximately 37 in (H) x 14.31 in (W) x 3.88 in (D)
• UL listed for safety and code compliance

The Eaton CH Plug-On Neutral Loadcenter offers a reliable and flexible solution for modern electrical distribution needs.

Documents:

Multimedia
AFCI Educational Video

Specifications and datasheets
Eaton Specification Sheet - CHP42N225X7

Warranty guides
Eaton type CH circuit breaker limited warranty June 2024
