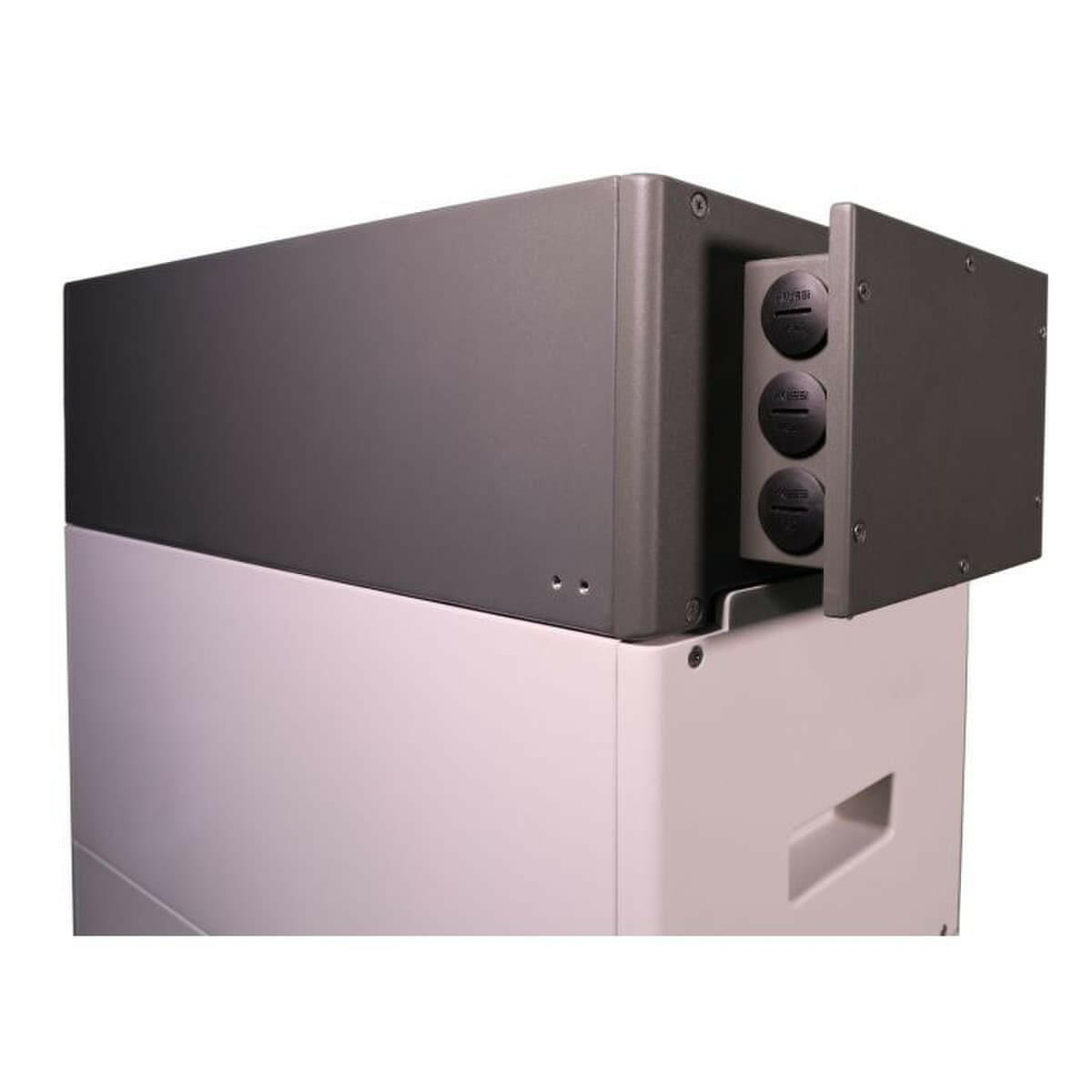

BYD Premium HVL Battery System 24 kWh (SKU Part Number BYD-HVL-6)

One Battery-Box Premium HVL is composed of 3 to 8 HVL battery modules that are connected in series to achieve a usable capacity of 12 to 32 kWh. Ability to scale by adding HVL modules later.

Features

• Capable of high-powered emergency-backup and off-grid functionality
• Highest efficiency thanks to a real high-voltage series connection
• The patented modular plug design requires no internal wiring and allows for maximum flexibility and ease of use
• Cobalt free lithium iron phosphate (lfp) battery: maximum safety, life cycle, and power
• Compatible with leading high voltage battery inverters
• Highest safety standards


Specifications

• Number of Modules: 5
• Capacity: 24 kWh
• Maximum Output Current (2): 50 A
• Peak Output Current (2): 75 A, 3 S
• Operating Voltage: 240-345.6 V
• Operating Temperature: 14-122°F
• Battery Cell Technology: Lithium Iron Phosphate (Cobalt-Free)
• Communication: CAN/RS485
• Enclosure Rating: IP55
• Round Trip Efficiency: ≥96%
• Compatible Inverters: Refer to BYD Battery-Box Premium HVL Compatible Inverter
• Standards: UL1973, IEC62619, FCC, UN38.3
• Warranty: 10 Years
• Dimensions: 66.7 x 23 x 11.7 in
• Weight: 628.3 lb
• Application: ON Grid / ON Grid + Backup / OFF Grid


Documents

• Specification Sheet
