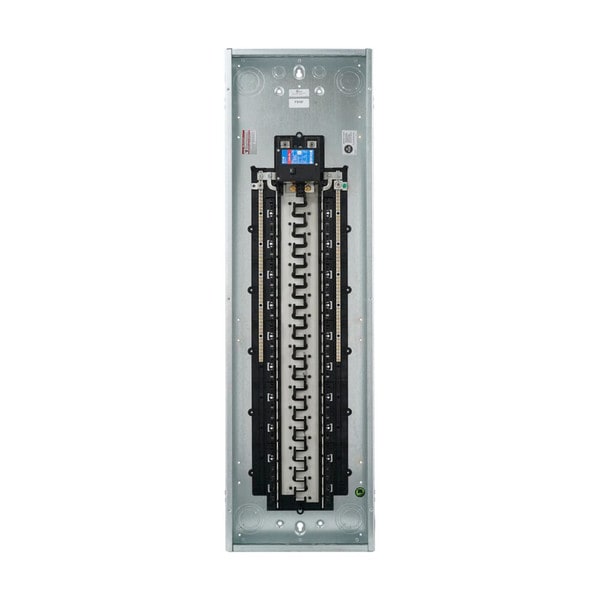

BRP60B200 - Plug-On Neutral Main Circuit Breaker Loadcenter

The Plug-On Neutral Main Circuit Breaker Loadcenter is a comprehensive solution for residential and light commercial electrical distribution. Designed for reliability and ease of installation, this loadcenter features a 200A main breaker, supports up to 120 circuits, and includes 60 spaces for single-pole breakers. It comes equipped with two hot buses, a neutral, and a ground, all within a single-phase configuration. The metallic, gray enclosure is NEMA 1 rated for indoor use and includes a cover for added protection. Built with a plug-on neutral design, it streamlines wiring and reduces installation time.

Key Features:

• Loadcenter Type: Plug-On Neutral Main Circuit Breaker Loadcenter
• Amperage Rating: 200A
• Interrupt Rating: 25kAIC
• Main Breaker: CSR2200 included
• Circuit Capacity: 120 Circuits / 60 Single-Pole Spaces
• Phases: Single-Phase, Two Hots, One Neutral, One Ground
• Material: Aluminum Bus, Metallic Enclosure
• Color: Gray
• NEMA Rating: NEMA 1 for indoor use

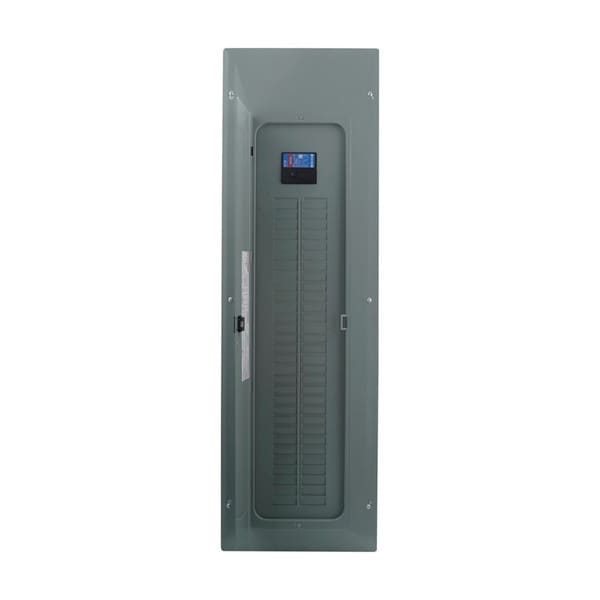

• Accessories Included: Cover included
• Design: Plug-on neutral for faster, cleaner installations

This loadcenter is a high-capacity, user-friendly solution that enhances safety and performance in modern electrical systems, making it ideal for both contractors and homeowners.
